Laboratory furnace and industrial furnace insulation material ceramic fiber board 1000.C -1800.C

Product Detail

Standard size:900x600x(20-150)mmwidth:600mm
Operating temperature:1000-1800.CShrinkage (1800℉, 3 hours):0.13
payment terms:L/C, T/T, Western Union, MoneyGramchemical composition:Al2O3+SiO2
thickness:20-150mmproduct name:ceramic fiberboard
Thermal Conductivity:0.296 W/(m·K)grade:HAZ (High Aluminum Zirconium)
length:900mmapplication:Insulation materials and heat insulation materials for laboratory furnaces and industrial furnaces
Ultimate Strength (≥MPa):0.72port:Qingdao, Shanghai and any port in China
Supply capacity:1 million kg of ceramic fiberboard per monthPackaging Details:Ceramic fiber board standard wooden box with bubble bag pearl cotton
model:ceramic fiberboardbrand:ZYLAB Company
place of origin; place of origin:Zhejiang, China

Laboratory furnace and industrial furnace insulation material ceramic fiber board 1000.C -1800.C

Product Description

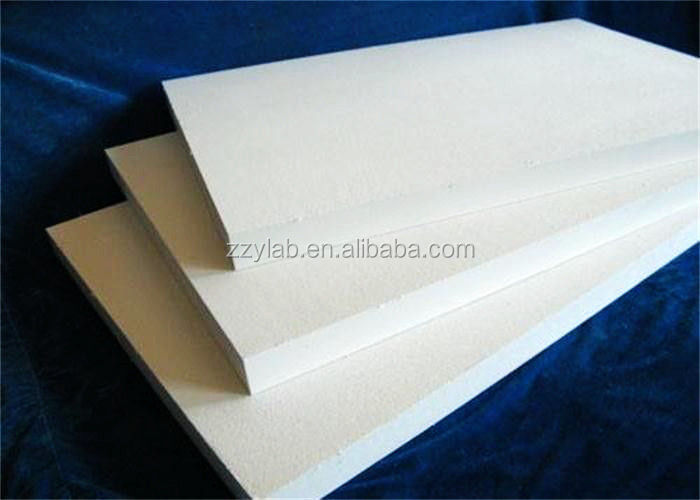

 Introduction of ceramic fiberboard:

The ceramic fiber board is made of high-purity alumina fiber and alumina powder, and is molded and fired in special equipment using advanced patented technology. The temperature resistance can reach 1700 degrees Celsius.



The main features of ceramic fiberboard:

1. The surface is smooth.
2. Average thickness and density.
3. Excellent mechanism and structural strength.
4. Low thermal conductivity and small shrinkage.

5. Good high temperature stability and good thermal shock resistance.

6. Good flame retardancy and air flow erosion.

7. Ultra-light weight.

8. Easy processing and cutting performance, accurate thickness and size, easy installation and use.

application



Application of ceramic fiberboard:

1.The kiln wall of industrial kiln is lined with refractory layer and insulation layer, which can be calcined directly with open flame

2.High temperature kiln lining, kiln car, furnace door baffle, kiln insulation board.

3.Insulation and heat preservation of high temperature and high heat equipment

4.Aerospace, shipbuilding industry heat insulation, fire protection, sound insulation, etc.

5.Polycrystalline crucible high temperature insulation cover plate.

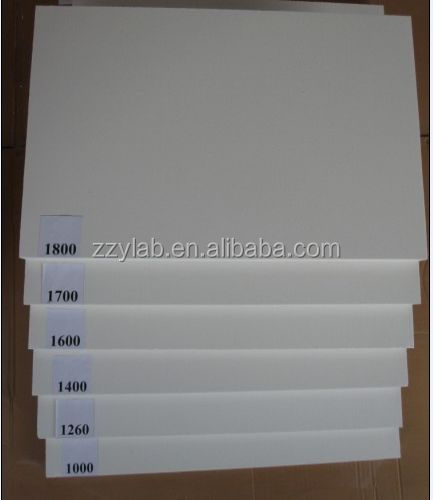

Technical data

Technical parameters of ceramic fiber board:

Model

B-1260

B-1400

B-1430

B-1600

B-1700

B-1800

Grading temperature ℃

1260

1400

1430

1600

1700

1800

Density (kg/m3)

300-600

300-600

300-600

300-600

300-600

300-600

new line

(.CX24hS)

(1050℃x24h)<1

(1150℃x24h)<1

(1250℃x24h)<1

(1500℃x6h)<1

(1600℃x6h)<1

(1700℃x6h)<1

Compressive strength

0.5

0.5

0.5

0.3

0.3

0.3

Physical characteristics of ceramic fiberboard:

Density (kg/m3)

400

Bending strength (MPa,25.C)

0.72

Linear Shrinkage % (1600 .Cx8hrs)

0.13(1.7)*

Expansion % (600℃)

0.28

Average linear expansion modulus (x10-6/K)

1.77

Thermal conductivity GHP[W/(mK)]

400.C

0.147

600.C

0.186

800℃

0.236

1000.C

0.296

chemical composition

Alumina: 87% Silica: 13%



Standard size:
900x600x(20-150)mm 1000x600x(20-150)mm



Note: 1. We have enough stock and a large number of semi-finished products for fast delivery.

2. It can be customized according to the drawing.

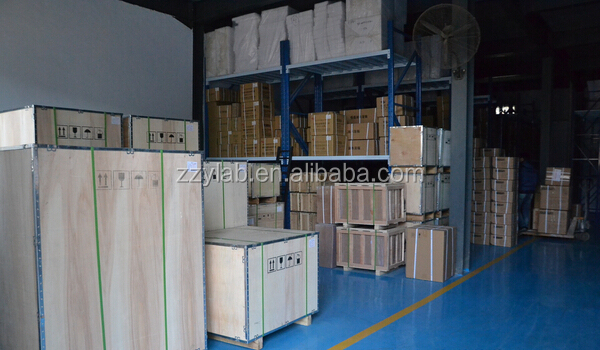

Packaging and Shipping



Pack:

Standard wooden case/carton with bubble bag and pearl cotton inside.





Shipping:



Shipping:Products with large sizes or large quantities or not urgent, with low prices and slightly longer arrival times.



Usually arrive within 11-45 days.



air transport:More than 100kg or emergency products. Usually 7-10 days to arrive, direct flight 3-5 days to arrive.



International Express:Such as FedEx/UPS/DHL/TNT/EMS or others. The door-to-door service is convenient and fast.



Usually 5-7 days to arrive.



Global shipping can also be arranged for customers'Require.





our service



l A professional team provides 24-hour online support for any consultation.

l Respond quickly according to customer requirements, provide suitable solutions and detailed quotations.

l Custom designs are available.



Warranty:



We warrant our products to be free from defects in materials or workmanship for a period of one year (12 months) from the date of purchase. During this time, we will replace any components that fail in normal use.



notes:This warranty does not cover consumables and failures resulting from abuse, misuse, accident or unauthorized alteration or repair.
