Heat-resistant fireplace insulation aluminum silicate ceramic fiber fireproof board supplier from China
- 1 piece
- Nanning Elaiter Environmental Technologies Co., Ltd.
- Guangxi, China
- Mr Xunliang Long
Product Detail

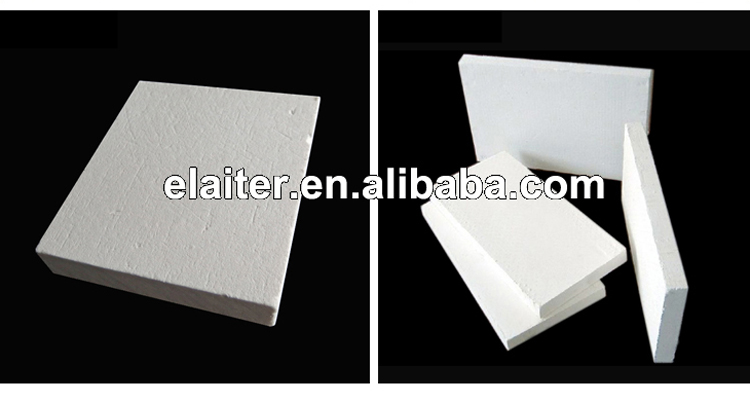

Ceramic fiber board is a vacuum forming product, which uses ceramic fiber as the main raw material, adds a certain proportion of binder, and is produced through a vacuum forming process.
Ceramic fiber boards are used in a variety of high temperature applications including refractory linings, backup insulation, baffles and muffle furnaces, heat shields, combustion chambers, flue insulation and fire protection.
1. Low heat storage and low thermal conductivity.
2. Excellent thermal stability and thermal shock resistance.
3. Accurate size and good flatness.
4. Good corrosion resistance
5. Easy to cut or install.
6. High compressive strength and good toughness.
7. Asbestos-free.
1. Industrial furnace lining.
2. High-temperature furnace, high-temperature car, furnace door baffle, high-temperature partition.
3. High temperature reaction and heating device - wall lining and backing.
4. Aerospace and navigation, shipbuilding, heat insulation, fire prevention, sound insulation and heat insulation.
|
type |
Ordinary level |
Standard level |
High purity grade |
High aluminum grade |
Zirconium grade |
|
color |
white |
pure white |
pure white |
pure white |
pure white |
|
Classification temperature |
1100℃ |
1260℃ |
1260℃ |
1360℃ |
1430℃ |
|
Use temperature. |
≤1000℃ |
1050℃ |
1100℃ |
1200℃ |
1350℃ |
|
Density (kg/m33) |
260-320 |
260-320 |
260-320 |
260-320 |
260-320 |
|
Heating shrinkage (%) (density 320kg/m33) |
1000℃×24 hours ≤-4 |
1050℃×24 hours ≤-3 |
1100℃×24 hours ≤-3 |
1200℃×24 hours ≤-3 |
1350℃×24 hours ≤-3 |
|
tensile strength |
0.5MPa |
0.5MPa |
0.5MPa |
0.5MPa |
0.5MPa |
|
thermal conductivity (w/mk) (physical volume density 285 Kgs/m3) |
0.085(400℃) |
0.085(400℃) |
0.085(400℃) |
0.085(400℃) |
0.085(400℃) |
|
AL2oxygen3 |
44% |
46% |
47-49% |
52-55% |
39-40% |
|
AL2oxygen3+silica2 |
96% |
97% |
99% |
99% |
82-84% |
|
Zirconia2 |
- |
- |
- |
- |
15-17% |
|
AL2oxygen3+silica2+zirconia2 |
- |
- |
- |
- |
99% |
|
iron2oxygen3 |
≤1.2% |
≤1.0% |
≤0.2% |
≤0.2% |
≤0.2% |
|
sodium2Europe+K2oxygen |
≤0.5% |
≤0.5% |
≤0.2% |
≤0.2% |
≤0.2% |
|
standardLength (mm) |
standardWidth (mm) |
standardThickness (mm) |
|
600 |
300/400 |
10-50 |
|
900 |
600 |
10-50 |
|
1000 |
600/1000 |
10-50 |
|
1200 |
500/600/1000 |
10-50 |
|
Comment:Other sizes can be customized as per your requirements. |
||
