Modulus of ceramic fibers

Product Detail

product name:ceramic fiberboardUltimate Strength (≥MPa):0.5MPa
application:insulationOrigin:Henan, China
grade:HA (High Aluminum)color:white
model:Ceramic fiber board for muffle furnace chamberlength:600/900/1000/1200 mm
size:customer requestpayment terms:L/C, Western Union, D/P, D/A, T/T, ceramic fiberboard for muffle chamber
chemical composition:Al2O3+SiO2density:260-320 kg/m3
Certificate:ISO9001:2000Refractory board for furnace:low thermal conductivity
Package preview:Thermal Conductivity:0.085(400℃)/0.132(800℃)/0.180(1000℃)
width:600/1000 mmtype:Ceramic Fiber Board for Muffle Furnace
raw material:ceramic fiber bulkPackaging Details:Ceramic Fiber Series Products Ceramic Fiber Board Carton PP Bag With Pallet
Fiber Diameter:3-5μmpack:customer request
port:any port in chinabrand:rose wool
Shrinkage (1800°F, 3 hours):3% (24 hours)feature:high compressive strength
Operating temperature:1000℃-1800℃Supply capacity:500 tons of ceramic fiberboard for muffle furnace chamber per month

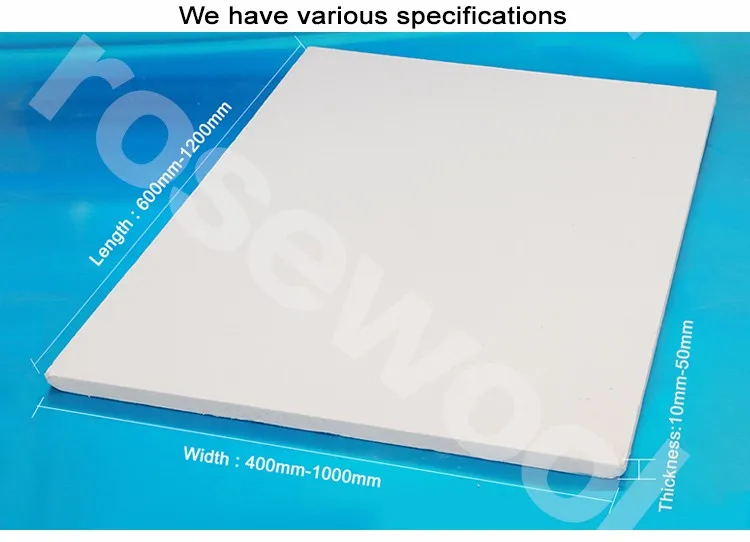

thickness:10~50mm

Ceramic alumina fiber insulation board ceiling board

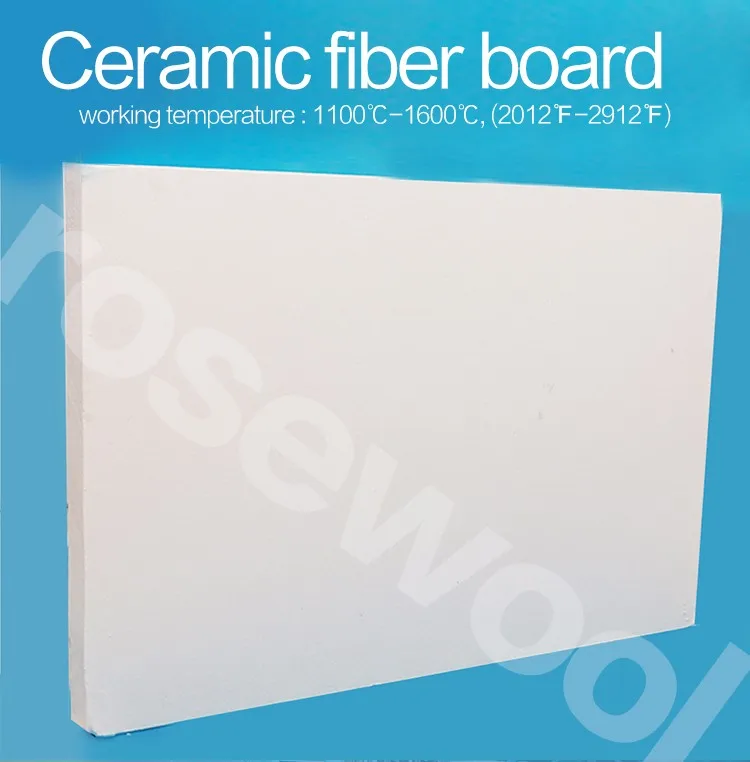

Rose wool ceramic fiberboard is a kind of refractory and thermal insulation material, with ceramic fiber as the main raw material, after fiber processing, slag removal, adding binder, vacuum forming process and drying process, it is made into high-strength fiberboard.







chemical composition

Ordinary

standard grade

High grade

High Aluminum Grade

Zirconium Grade

Aluminum oxide

44%

46%

47-49%

52-55%

39-40%

Alumina + Silica

96%

97%

99%

99%

82-84%

Zirconia

-

-

-

-

15-17%

AL2O3+SiO2+ZrO2

-

-

-

-

99%

Ferric oxide

≤1.2%

≤1.0%

≤0.2%

≤0.2%

≤0.2%

Na2O+K2O

≤0.5%

≤0.5%

≤0.2%

≤0.2%

≤0.2%

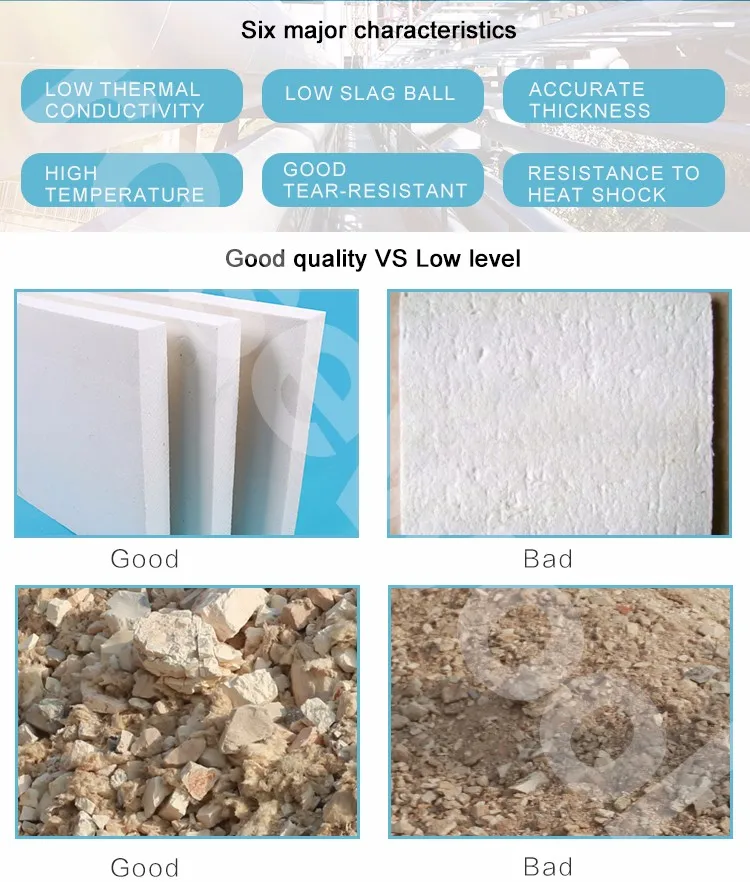

1. Excellent thermal stability.

2. Excellent chemical quality.

3. Combustion resistance.

4. Low thermal conductivity

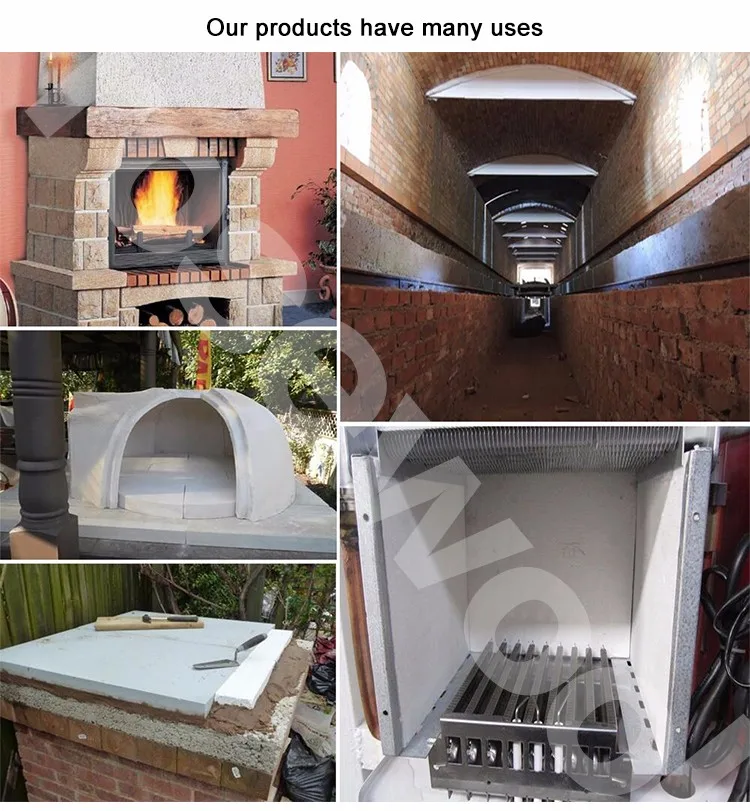

♦ Wall lining and backing material for high temperature reaction, heating equipment and various industrial furnaces.

❖ Furnace door, roof or house chimney, insulation of fireplace, fireproof board.

❖ Low fire and heat insulation for chimney cake ovens and pizza ovens.

❖ Boiler and heater combustion chambers



We are Zhengzhou Rose Wool Thermal Insulation Refractory Co., Ltd., specialized in R&D and manufacturing, with more than 60 years of production experience.

1.1 national R&D institution: Peking University has a close cooperative laboratory relationship with us in product development and technology

2.4 types: Our product range: ceramic fiber products (blanket, paper, board, module, shaped), rock wool, glass wool, calcium silicate board.

3.5 certificates: ISO900, CE, SGS, TUV, BV, etc.

4.23 years: Our export experience is more than 23 years.

5.150,000 square meters: The total area of ​​our factory.
Our values ​​are: Survive by quality,
Parallel connection of energy saving business





Welcome to contact Rose Wool
