1600C 1700C 1800C Furnace Vacuum Formed Ceramic Fiber Board

  • $12.00 / >=100 kilograms
  • 100 kilograms
  • Shine Technology Co., Ltd.
  • Beijing, China
  • Ms Nancy Lee

Product Detail

Origin:Shandong Province, ChinaOperating temperature:1600-1900℃
Fiber Diameter:3-5 micronsraw material:ceramic fiber bulk
thickness:10-50mmcolor:white
Classification temperature:1600°C 1700°C 1800°Clength:600/900/1000/1200mm
Supply capacity:1500 tons per monthCertificate:ISO9001:2000
application:Industrial Furnace Liningmodel:Sinter hardening type
Thermal Conductivity:0.135brand:shine
pack:Carton + palletUltimate Strength (≥MPa):0.5
Shrinkage (1800°F, 3 hours):3%(1000℃)density:450-600 kg/m3
payment terms:L/C, D/A, D/P, T/T, Western Union, MoneyGram, PayPalchemical composition:Al2O3+SiO2
grade:HZ (high zirconium)port:any port in China
width:300/600/1000 mmPackaging Details:Standard export carton and wooden pallet

1600C 1700C 1800C 1900C Furnace Vacuum Formed Ceramic Fiber Board



Product Description



feature:

l Low thermal conductivity, low heat capacity, excellent thermal insulation performance.

l Good high temperature stability, thermal shock resistance

l Good tensile strength.

l Corrosion resistance.

l Excellent sound absorption, fire prevention and chemical corrosion resistance.



application:

Ceramic fiber products are mainly used as ceramic fiber linings for industrial furnaces, heating equipment and high-temperature pipelines.

Metallurgical industry:Heating furnace, heat treatment furnace, ladle insulation cover.

Machinery Industry:Thermal insulation materials for electric boilers, gas turbines, and nuclear power plants.

Petrochemical industry:Lining of high-temperature reaction equipment and heating equipment in the chemical industry, such as converters, constant pressure/decompression furnaces, cracking furnaces, and flue linings.

Ceramics and electroceramics:Roller kiln, tunnel kiln, shuttle kiln and other kilns.



type

SN-1600

SN-1700

SN-1800

Grading temperature (℃)

1600

1700

1800

Density(kg/m3)

300-600

450-700

550-700

Line Change (%)

1500℃×24 hours

≤1

1550℃×24 hours

≤1

1600℃×24 hours

≤1

Thermal conductivity (W/mk)

1200℃≈0.25

1300℃≈0.37

1400℃≈0.45

aluminum2oxygen3(%)

68-70

75-78

80-83

silica2(%)

30-32

22-25 days

17-20 days

Zirconia2(%)

------

------

------

iron2oxygen3(%)

--------

----

--------





Packaging and Shipping

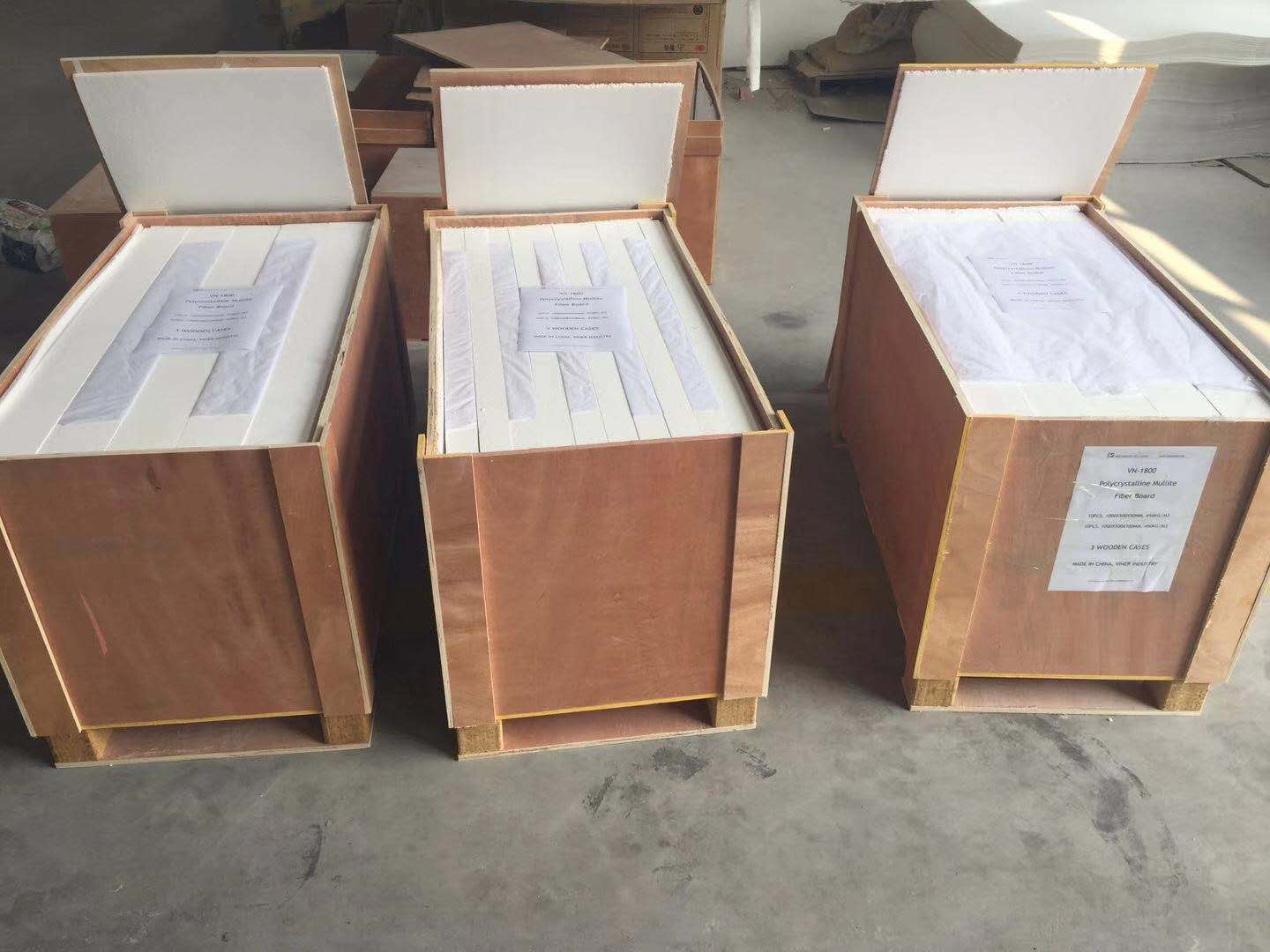

Packing: standard export carton and wooden pallet

Shipping: By ship or other ways according to customer's requirement.



our service



1. Timely response,

Reply to your inquiries in a timely manner, make multi-choice recommendations according to your needs, quickly reply to emails and provide solutions.



2. Sample evaluation

Accept to provide samples and trial orders for quality evaluation.



3. Strict quality control

Arrange production on time and strictly control quality.



4. Short delivery time

Book the earliest ship or plane to guarantee delivery time.



5. Professional and complete shipping documents

Provide all detailed news and pictures from order to delivery;

Provide relevant export documents and original certificates when necessary;



6. Warm and thoughtful after-sales service
