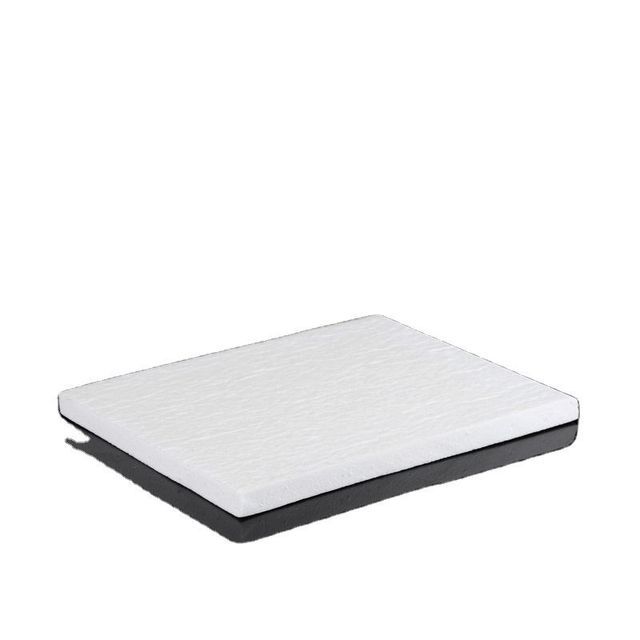

1500C high temperature fireproof fiber ceramic board

Product Detail

Name:1500C high temperature fireproof fiber ceramic boardOrigin:Shandong Province, China
brand:Robertpack:carton
Operating temperature:1000℃Keyword 2:ceramic fiberboard
payment terms:L/C, Western Union, D/P, D/A, T/T, MoneyGram, PayPalKeyword 1:ceramic fiberboard
thickness:10-50mmFiber Diameter:3μm
Shrinkage (1800°F, 3 hours):<3%Thermal Conductivity:0.060-0.085
Supply capacity:Monthly production of 10,000 tons of 1500C high temperature fireproof fiber ceramic boardPackaging Details:Packaging 1. Inner plastic bag + outer carton 2. Woven bag packaging 3. Ceramic fiberboard plastic bag
size:25X600X900mmPay:electric/TL/C
width:400/600/1000 mmport:Qingdao
model:R-ceramic fiberboardapplication:Industrial furnace lining, furnace insulation, refractory materials
chemical composition:Al2O3≥45%color:white
grade:HP (high purity)Ultimate Strength (≥MPa):0.5
density:220-450 kg/m3length:900/1200 mm
Material:ceramic fiber bulk

1500C high temperature fireproof fiber ceramic board

Product Description

ceramic fiberboard

Product Details

Ceramic fiberboard refers to a hard ceramic fiber product containing an inorganic binder. Produced by wet vacuum forming. Due to the use of inorganic binders, this product has excellent mechanical properties and wind erosion resistance, and is generally used for building thermal surfaces of industrial furnaces and high-temperature pipeline wall linings.



Ceramic Fiber Board Features:

1. Low heat capacity and low thermal conductivity

2. The material is not brittle and has a long service life

3. Excellent thermal stability and thermal shock resistance

4. Easy to shape or cut

5. Good wind erosion resistance and uniform distribution.

6. Stable performance, smooth surface, accurate size,

7. Uniform structure and good integrity.



Application of ceramic fiberboard:

1. High temperature reaction, backing heat preservation and heat insulation of heating equipment

2. Thermal insulation of kiln backing in petroleum, chemical and metallurgical industries

3. Heat treatment kiln backing insulation

4. Backing insulation in non-ferrous metal industry

5. Kiln backing insulation in cement and other building materials industries

6. Industrial kiln wall lining, backing materials, kiln masonry expansion joints, furnace doors, roof insulation materials



Packaging and Shipping

1. Inner plastic bag + outer carton
2. Woven bag packaging
3. Plastic bags
