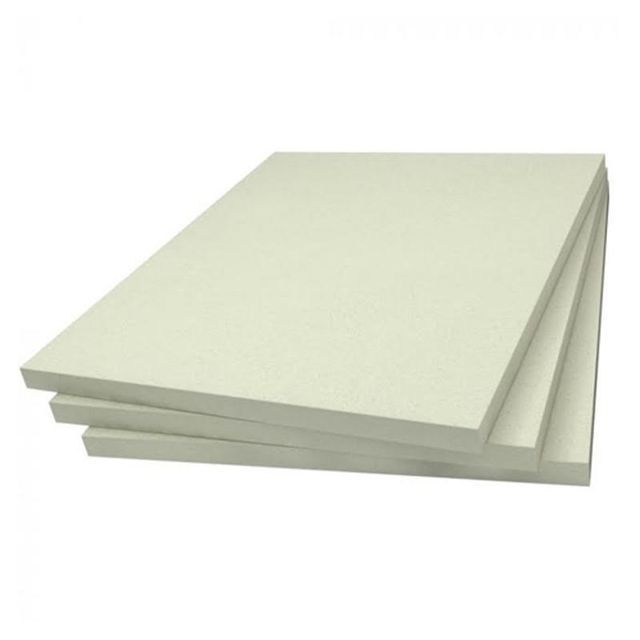

HT 2200C High Temperature Zirconia Ceramic Fiber Board Factory Price
- $12.00 / >=10 pieces
- 10 pieces
- Zhengzhou Hengtong Furnace Co., Ltd.
- Henan, China
- Ms Richel Cheng
Product Detail
| density: | 280-600 kg/m3 | Classification temperature: | 2200 |
| Supply capacity: | 100 sets per month | size: | 600x300/900x600/1200x1000mm |
| pack: | Carton + pallet | color: | pure white |
| model: | HT-CF02 | brand: | HT |
| application: | Industrial Furnace Lining | thickness: | 6/10/15/20/25/30/40/50 mm |
| Package preview: | payment terms: | L/C, T/T, Western Union, MoneyGram | |
| grade: | HP (high purity) | product name: | High temperature insulation ceramic fiber board |
| Origin: | Henan, China | Thermal Conductivity: | 0.18 |
| Ultimate Strength (≥MPa): | 0.040~0.075MPa | Shrinkage (1800°F, 3 hours): | 3% (24 hours) |
| width: | 300/600/1000 mm | Fiber Diameter: | 3-5 microns |
| length: | 600/900/1000/1200mm | port: | any port in China |
| Operating temperature: | 1050°C 1260°C 1430°C 1600°C 1700°C | chemical composition: | Al2O3+SiO2 |
| Packaging Details: | Cartons and pallets |
CCeramic fiber board is a kind of refractory and thermal insulation material. It uses ceramic fiber as the main raw material. After fiber processing, slag removal, binder addition, vacuum forming process and drying process, it is made into high-strength fiber board.
Ceramic fiberboard is a rigid product made of different ceramic fiber blocks with excellent chemical stability, processed by wet organic bonding and vacuum forming, and used in various industries.
1. Abrasion-resistant materials on the surface of conveying equipment, such as chutes/hoppers, cyclones, elbows, cyclones, conveyors or pulleys.
2. Wear-resistant materials for petroleum, mining, steel, electric power liquid flow pipelines
3. Anti-chemical corrosion
4. Thermal influence
By offering innovative solutions, Tiles will ensure significant savings in equipment and labor. Our products are used extensively where materials are subject to wear due to abrasion, impact, friction, heat or corrosion.
Ceramic Fiber Board Physical Data
|
Model |
HT-1000 |
HT-1260 |
HT-1400 |
HT-1600 |
HT-1800 |
|
|
Grading temperature |
1000℃ |
1260°C |
1400°C |
1600℃ |
1800°C |
|
|
Density(kg/m3) |
300-700 |
300-700 |
300-700 |
300-700 |
300-700 |
|
|
Reheat linear change (%) |
(800°CX24h)<1 |
(1050°CX24h)<1 |
(1200°CX24h)<1 |
(1500°CX24h)<1 |
(1600°CX24h)<1 |
|
|
chemical composition(%) |
Aluminum oxide |
38 |
42 |
50 |
68 |
85 |
|
Alumina+silica |
96 |
98 |
99 |
99.5 |
99.8 |
|
|
Ferric oxide |
0.2 |
0.2 |
0.2 |
- |
- |
|
Optimizing solutions and product supply for refractory materials in high-temperature industries such as iron and steel, nonferrous metals, petrochemicals, and building materials.
♥ Refractory material engineering design, contracting, consulting, civil engineering design.
♥ Research and development, manufacture and sales of superhard materials.
♥ Research and development, manufacture and sales of export-specific packaging materials.
♥ Refractory material inspection, supervision and arbitration.
♥ Refractory information consultation and service.
♥ Cultivation and cultivation of high-level talents in the refractory industry
