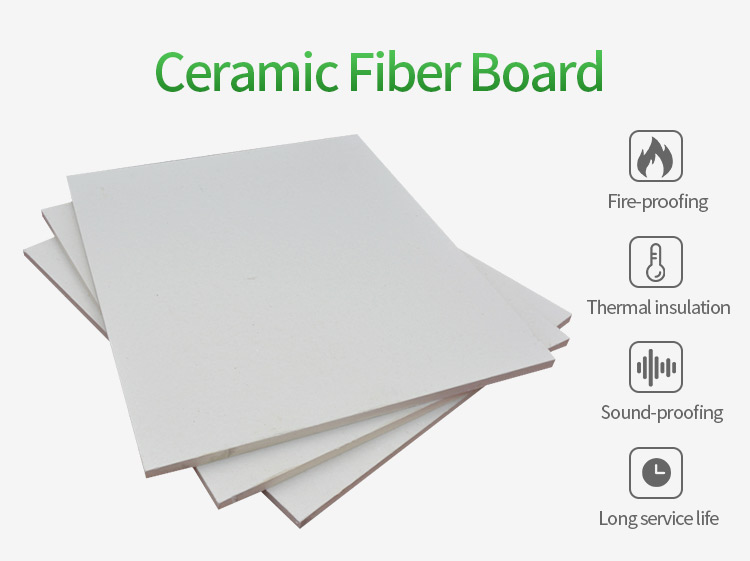

Excellent structural strength 1700C Ceramic fiber board 600*1000mm
- $1.80 / >=10 pieces
- 10 pieces
- Zhengzhou Kerui (Group) Refractory Co., Ltd.
- Henan, China
- Ms Lydia Chou
Product Detail
| Operating temperature: | 1100℃~1350℃ | chemical composition: | Al2O3+SiO2 |
| brand: | Korea Royal Commission on Internet | Classification temperature: | 1100C/1260C/1360C/1430C |
| model: | ceramic fiberboard | Bulk density: | 280-400 g/cubic centimeter |
| application: | Industrial lining | Origin: | Henan, China |
| Certificate: | ISO9001;ISO14001;OHSAS18001 | Packaging Details: | wooden pallet |
| color: | pure white | Supply capacity: | 80 metric tons of ceramic fiberboard per day |
| width: | 400/600mm | length: | 600/900/1000mm |
| Shrinkage (1800℉, 3 hours): | 1.1 | Fiber Diameter: | 3~5mm |
| Ultimate Strength (≥MPa): | 2 | Package preview: | |
| Thermal Conductivity: | ≤0.165(W/mk)@400℃ | port: | Qingdao/Tianjin/Shanghai/Lianyungang |
| Alumina + Silica: | 96-99% | payment terms: | L/C, Western Union, D/P, D/A, T/T, MoneyGram |
| grade: | Serial port (common) | thickness: | 5-100mm |
Excellent structural strength 1700C ceramic fiberboard 600*1000mm

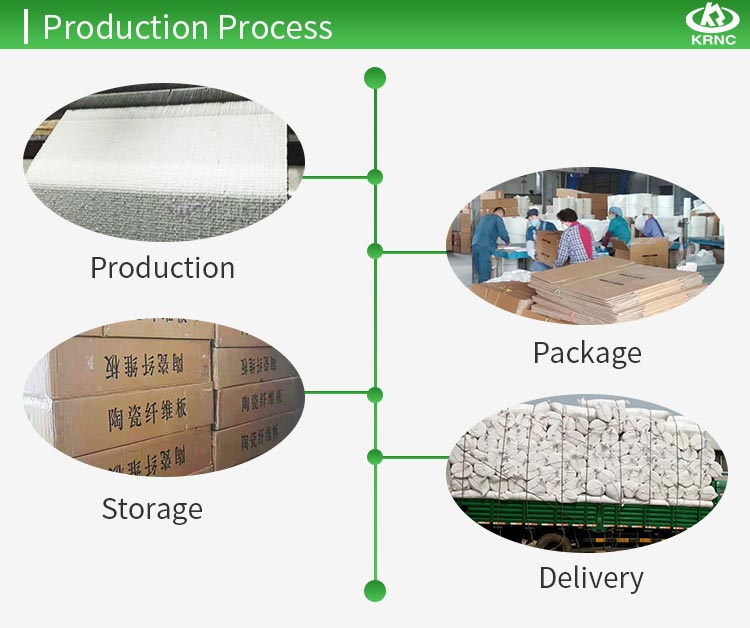

Using aluminum silicate fiber cotton as raw material, it adopts vacuum forming or dry method, is formed by drying and pressing, and finally finished into ordinary ceramic fiber board. Corresponding loose aluminum silicate fiber cotton. The product has hard texture, high toughness and strength, and good wind erosion resistance; light texture, no expansion when heated, convenient construction, and can be cut and bent at will. It is an ideal energy-saving product for kiln pipes and other thermal insulation equipment.

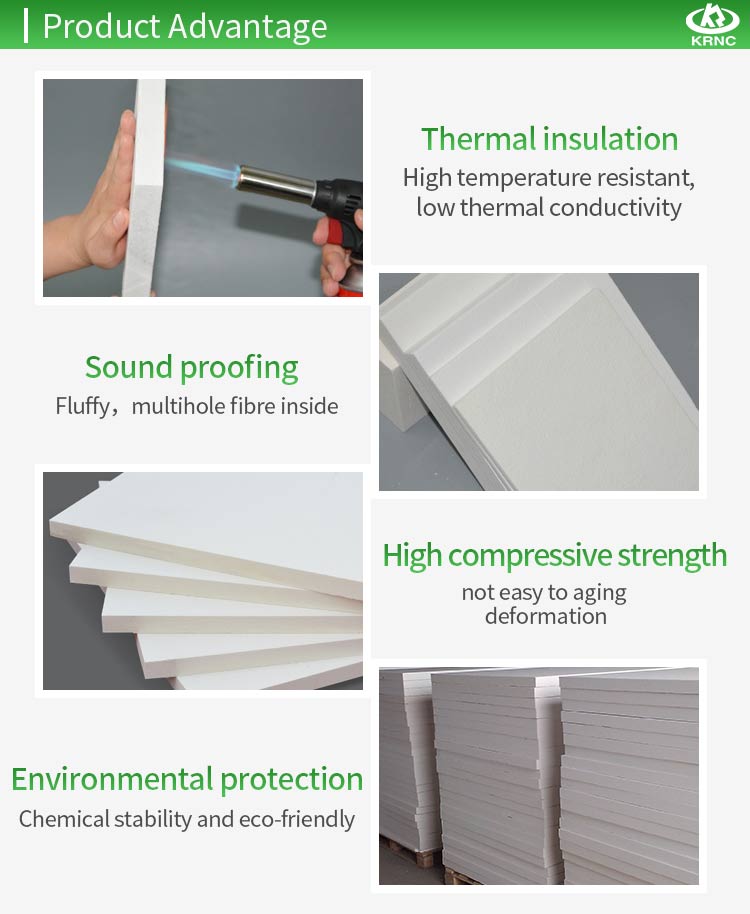

Features of ceramic fiberboard:
1. Low thermal conductivity and capacity
2. Good thermal stability and tensile impact performance
3. High compressive strength and good toughness
Application fields of ceramic fiberboard:
Ceramic fiberboard is suitable for industrial kiln wall lining and masonry insulation layer; high temperature equipment insulation layer; high temperature kiln lining kiln car protective door baffle and furnace insulation board; air terminal heat insulation, fire prevention, heat insulation and heat preservation
Ceramic fiber boards are classified by temperature:
Normal: 1100℃
Standard: 1260°C
High-purity type: 1360°C
Zirconium-containing type: 1430°C
Performance indicators of ceramic fiberboard:
|
ceramic fiberboard |
normal |
standard |
High purity type |
high aluminum |
zirconium |
|
|
Grading temperature (℃) |
1100 |
1260 |
1260 |
1360 |
1430 |
|
|
Working temperature (℃) |
<1000 |
1050 |
1100 |
1200 |
1350 |
|
|
color |
white |
pure white |
pure white |
pure white |
pure white |
|
|
BD(kg/cubic meter) |
260 320 |
260 320 |
260 320 |
260 320 |
260 320 |
|
|
Permanent Liner Change (%) (less than 24 hours, B.D320kg/m3) |
-4 (1000℃) |
-3 (1000℃) |
-3 (1100℃) |
-3 (1250°C) |
-3 (1350°C) |
|
|
Thermal conductivity (w/m·k) (BD:285kg/m3) |
0.085(400℃) 0.132(800℃) 0.180(1000℃) |
0.085(400℃) 0.132(800℃) 0.180(1000℃) |
0.085(400℃) 0.132(800℃) 0.180(1000℃) |
0.085(400℃) 0.132(800℃) 0.180(1000℃) |
0.085(400℃) 0.132(800℃) 0.180(1000℃) |
|
|
Strength extension (MPa) (thickness shrinkage 10%) |
0.5 |
0.5 |
0.5 |
0.5 |
0.5 |
|
|
chemical composition(%) |
Aluminum oxide |
44 |
46 |
47~49 years old |
52~55 years old |
39~40 years old |
|
Al2O3+SiO2 |
96 |
97 |
99 |
99 |
- |
|
|
Al2O3+SiO2+ZrO2 |
- |
- |
- |
- |
99 |
|
|
Zirconia |
- |
- |
- |
- |
15~17 years old |
|
|
Ferric oxide |
<1.2 |
<1.0 |
0.2 |
0.2 |
0.2 |
|
|
Na2O+K2O |
≤0.5 |
≤0.5 |
0.2 |
0.2 |
0.2 |
|
|
Dimensions (mm) |
600*400*10-50, 900*600*20-50, other customized |
|||||
