1200C 1400C 1700C 1800C Refractory Polycrystalline Mullite/Ceramic Fiber High Temperature Furnace
- $15.37 /piece
- 1 piece
- Zhengzhou Hengtong Furnace Co., Ltd.
- Henan, China
- Ms Richel Cheng
Product Detail
| shape: | plate | Package: | wooden box |
| place of origin; place of origin: | Henan, China | thickness: | 10-50mm |
| Shipping Details: | 3 days after payment received | product name: | High temperature chamber |
| content: | 99.7% | model: | high temperature fuel cell |
| port: | according to your request | Operating temperature: | 1000-1800 |
| chemical composition: | Alumina + Silica | Thermal Conductivity: | 0.18 |
| Shrinkage (1800℉, 3 hours): | 3% (24 hours) | length: | 600/900/1000/1200mm |
| grade: | HP (high purity) | Packaging Details: | wooden box with foam plastic |
| application: | Furnace | width: | 300/600/1000mm |
| payment terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram | Fiber Diameter: | 3-5um |
| Certificate: | International Organization for Standardization | Operating temperature: | 1600℃ |
| size: | according to your request | Material: | Ceramic fiber |
| Maximum temperature: | 1700°C | brand: | HT |
| application: | Industrial lining | Ultimate Strength (≥MPa): | 0.5MPa |
| Supply capacity: | 100000 sets per month |
1400C 1700C 1800C refractory polycrystalline mullite/ceramic fiber high temperature furnace cavity
CavityIt is made of high-purity nano-ceramic fiber through spinning or blowing process. It does not contain asbestos. No chemical binders are added. Dual size needling gives the blanket great tensile or handling strength for easy installation. Blankets are available at classification temperatures from1100ºC to 1800ºC.
Furnace technical parameters:
characteristic | 1000 plates | 1260 board | 1400 plates | 1500 plates | 1600 board | 1700 board | 1800 board |
|
Grading temperature | 1000℃ | 1260°C | 1400°C | 1500℃ | 1600℃ | 1700°C | 1800°C |
|
Room temperature characteristics (23°C/50% relative humidity) |
|
| ||||||
Density kg/m3 | 280 | 280 | 280 | - | - | - | - |
|
300 | 300 | 300 | - | - | - | - |
| |
350 | 350 | 350 | 350 | 350 | 350 | 350 |
| |
- | - | - | 400 | 400 | 400 | 400 |
| |
Bending strength (MPa) | ≥0.5 | ≥0.8 |
| |||||
Tensile strength (MPa) | ≥0.25 | ≥0.35 |
| |||||

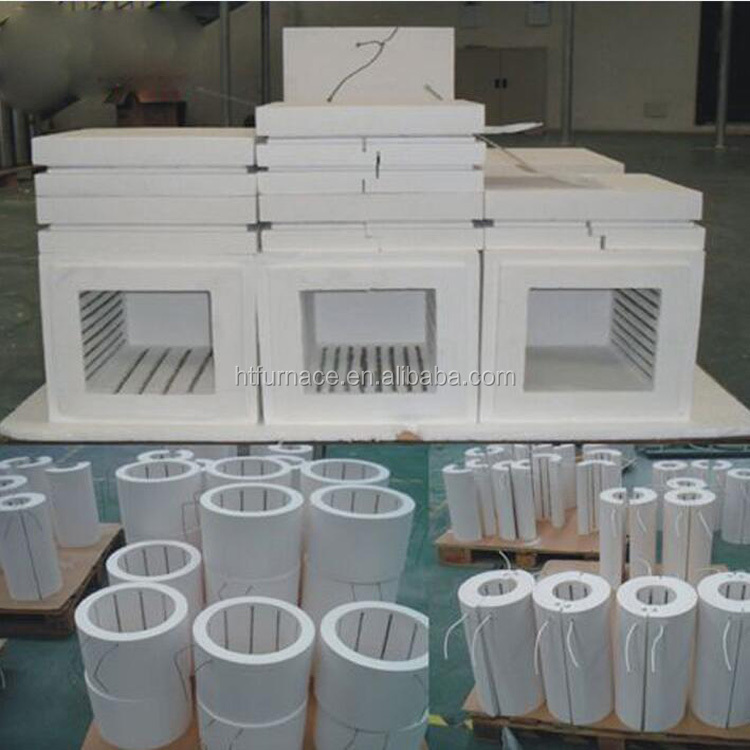

Furnace Photo Showcase:

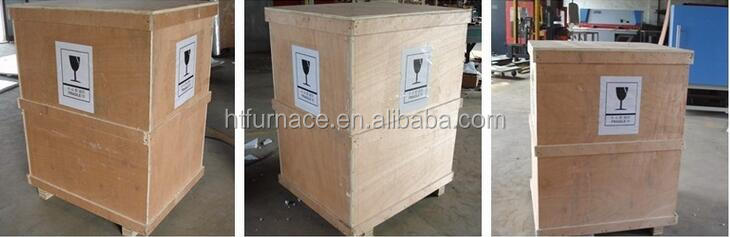

Oven packing:
Chamber delivery:
Why HT:
1.Controlling costs is easier.
2.more supporton technical issues.
3. Our products areComplete specificationsAvailable in various sizes.
4. We enjoygood reputationAmong customers in domestic and foreign markets.
