High-density alumina ceramic fiberboard can reach 1900C

Product Detail

payment terms:L/C, D/A, D/P, T/T, Western Union, MoneyGram, alumina ceramic fiberboardReburning line shrinkage:(1500℃x6h)<1
chemical composition:Alumina + Silicabrand:brother stove
Origin:Henan, Chinamodel:BR-1000 to 1900
width:600mmThermal Conductivity:0.085(400C)/0.132(800C)/0.180(1000C)
port:Chinese portdensity:450kg/m3
Supply capacity:500 pieces of alumina ceramic fiber board per monthShrinkage (1800℉, 3 hours):3% (24 hours)
Packaging Details:Alumina ceramic fiberboard+carton+wooden boxUltimate Strength (≥MPa):0.5MPa
Operating temperature:900C to 1750Ctype:Ceramic Fiber Board Retail
Thermal conductivity (1200°C):0.18W/square metergrade:ST (Standard)
application:insulationthickness:25mm
Fiber Diameter:3-5umlength:Aluminum oxide

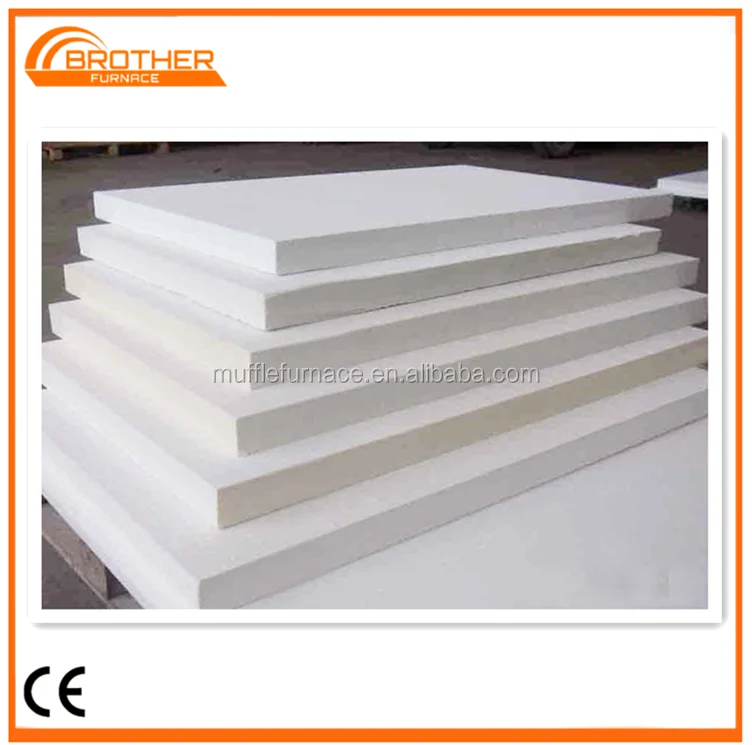

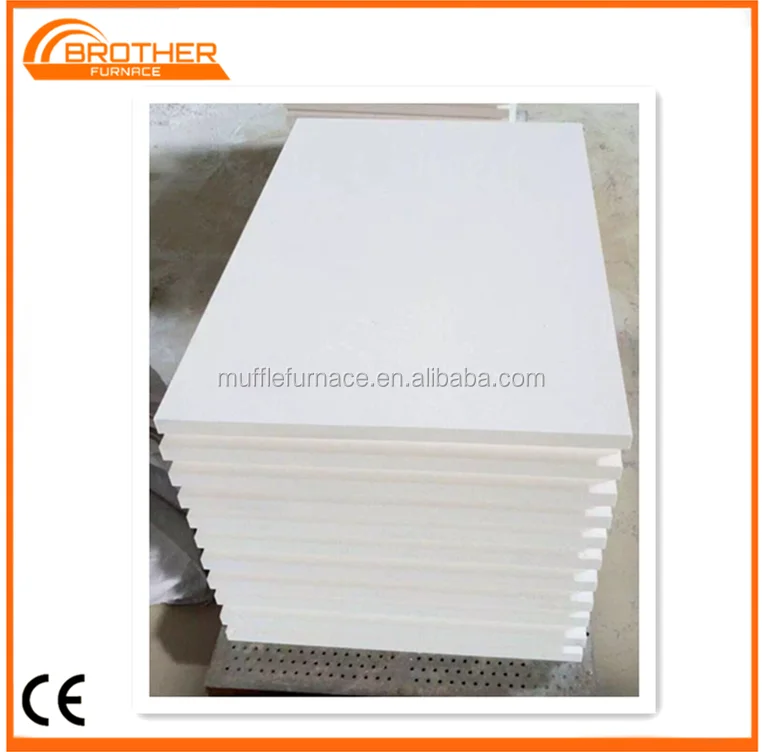

High temperature alumina ceramic fiber board



introduce:

Made of alumina fibers in various compositions, densities and sizes, for extra stiffness and strength it can withstand temperatures up to 1700 degrees Celsius.



Specification:

the code

BR-1000

BR-1260

BR1400

BR-1600

BR-1700

BR-1800

Operating temperature

1000

1260

1400

1600

1700

1800

Density (kg/m3)

200-600

200-600

200-600

200-600

350-600

350-600

new line

1.3

1.1

1.6

<2.0

<2.0

<2.0

(.CX24hS)

(900.C)

(1100.C)

(1200.C)

(1400.C)

(1500.C)

(1600.C)

Compressive strength

0.5

0.5

0.5

0.3

0.3

0.3



Standard size:

25x600x900mm

40x600x900mm

30x600x900mm

50x600x900mm

100x600x900mm



feature:

Excellent thermal stability. Low thermal conductivity. Low heat storage. Tight tolerances and excellent surface finish.

Easy to cut, drill or saw.

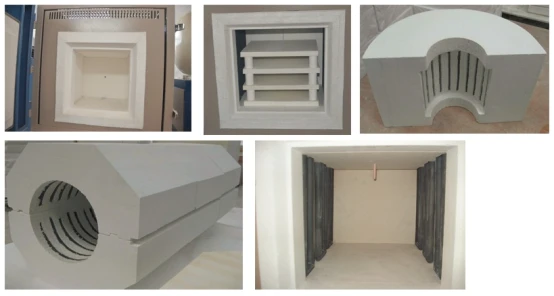

application:

Verity High Temperature Industrial Furnace Backing Insulation.

Ceramic kiln, mechanical metallurgical heating furnace, heat treatment furnace and other industrial kilns and hot surface lining with low calorific value.

High temperature block fire and flame insulation.

Kiln doors, kiln cars, expansion joints and other insulation materials.

Glass furnace insulation.

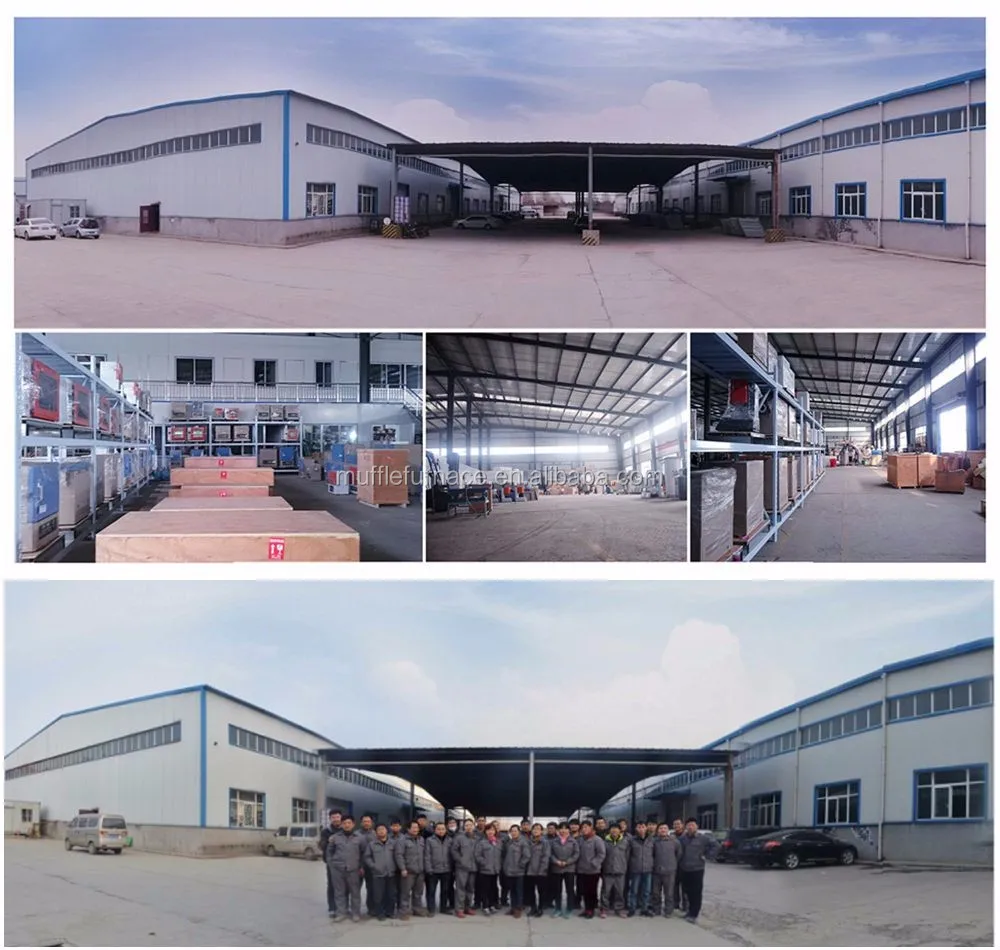

Our factory:
