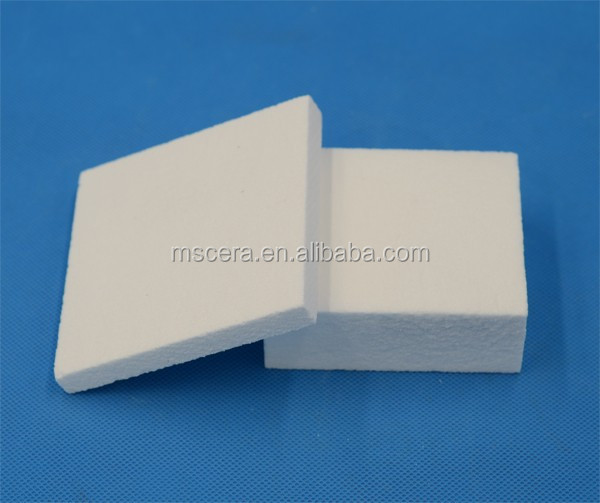

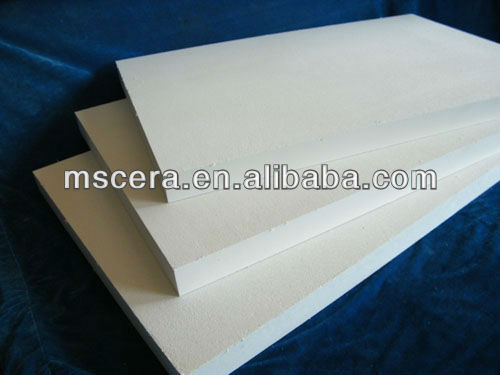

High-strength 1800C heat-resistant ceramic fiber board

Product Detail

Packaging Details:Ceramic Fiber Board Packaging Details: Wooden Box with Foamtype:Insulation Materials
application:insulationbrand:mission
thickness:6/10/15/20/25/30/40/50 mmUltimate Strength (≥MPa):0.5
Package preview:Shrinkage (1800℉, 3 hours):1.1
Fiber Diameter:3-5ummodel:MSCF
length:600/900/1200mmproduct name:ceramic fiberboard
payment terms:Western Union, T/TOrigin:Henan, China
chemical composition:Alumina + Silicausage:Furnace
raw material:Silica+AluminaOperating temperature:1000-1800
feature:high temperature stabilitygrade:HA (High Aluminum)
delivery time:7-20 dayspack:wooden box
Supply capacity:100,000 pieces of ceramic fiberboard per monthOperating temperature:1000℃ 1200℃ 1300℃ 1500℃ 1700℃
width:300/600/1000mmcolor:white
Thermal Conductivity:0.18size:600*300/900*600/1200*1000mm

High-strength 1800C heat-resistant ceramic fiber board

Al2O3 ceramic fiber boardSpecification

High temperature plate thermal ceramics are our main products. The mission is to supply industrial ceramic fibers worldwide. As a professional manufacturer of ceramic products, Maxim has been deeply involved in this field for many years. Thanks to our esteemed customers and hard working staff for their support. Our business is developing very fast. It is our duty to provide customers with high-quality products and good services.

Mission can manufacture high quality alumina fiber blanks and blankets. It is widely used in the lining of various high-temperature furnaces. Also used in other high temperature applications.



1. High-quality ceramic fiberboard.
2. High working temperature.
3. Fast delivery and very competitive price.



Mission Alumina Fiberboard Standard Sizes



900x600x(20-150)mm 1000x600x(20-150)mm

Other shapes and sizes can be made upon your request!





Temperature and technical data for Mission alumina fiberboard.



type

MSCF-1000

MSCF-1260

MSCF-1400

MSCF-1600

MSCF-1800

temperature °C

1000℃

1260°C

1400°C

1600℃

1800°C

Density (kg/m3)

300-600

300-600

300-600

450

550

chemical composition

Aluminum oxide

38

42

50

68

85

Al2O3+SiO2

96.0

98

99

99.5

99.8

Ferric oxide

0.2

0.2

0.2

~

~





Ceramic fiberboard packaging:

1. Clean the board.

2. Lift it with foam plastic paper.

3. Put it in a wooden box cushioned with foam board.

4. The box is sealed with screws, which is easy to open.

5. Fragile warning stick.

Shipping method: by sea, by air, by express.



Features of Mission Alumina Fibreboard.

1. Good high temperature stability, low thermal conductivity,

2. Good thermal shock resistance and corrosion resistance

3. Easy to process and cut. Precise thickness and size.

4. Good fire resistance and high temperature gas resistance.

5. Easy to install.

6. Special shapes can be made.



Application of alumina fiberboard.

Furnace linings and furnace linings of various high-temperature kilns.

Other high temperature applications





Tip:

 Custom production is available, for more information please feel free to let me know.



About our company

Zhengzhou Tuan Ceramic Products Co., Ltd. is located in Zhengzhou City, Henan Province. For many years, we have been focusing on high-quality ceramic products. We provide the following materials.

1. Alumina is mainly 95% to 99.7% pure.

2. Zirconia, including FSZ and PSZ, can be Y2O2-ZrO2, CaO-ZrO2, MgO-ZrO2.

3. Silicon carbide, including SiSIC, ReSiC, NSiC, SSiC.

4. Boron nitride (BN)

5. Ceramic fiber products, including boards, blankets, and loose fibers.

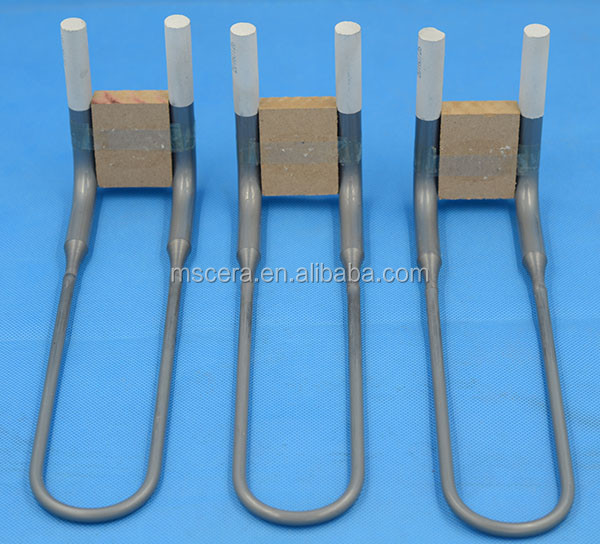

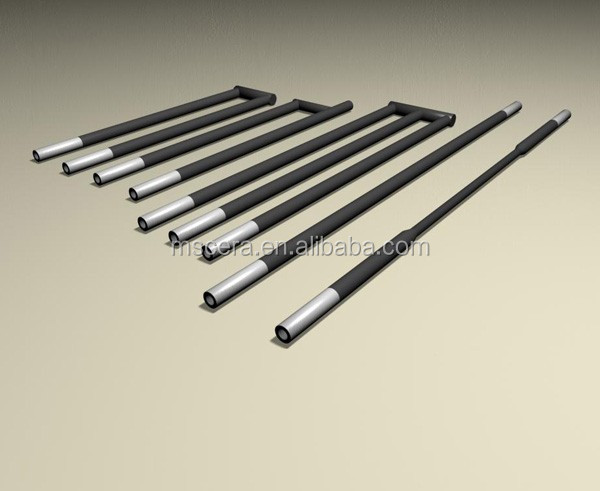

6. Heaters, mainly molybdenum disilicide (MoSi2) and silicon carbide (SiC) heaters.



For different ceramic parts, we have different processing methods, including casting, extrusion, casting, dry pressing and ISO pressing.

If you are interested in any of our products, please let us know. I believe you will like our products and services.

Zhengzhou Meituan Ceramic Products Co., Ltd.
No. 11 Zhengshang Road, Zhengzhou City, Henan Province, China
Tel: 86-371-56689683
Mobile: 86-136-7369-5024
Fax: 86-371-67103091
