STD/HP/HA/HZ high temperature 1260 1600 kiln lining ceramic fiber heating module
- $3.00 /piece
- 1 piece
- Henan Yutai High Temperature New Material Technology Co., Ltd,
- Henan, China
- Mr Irene Zhao
Product Detail
| Material: | Aluminum silicate | describe: | Baoyu 1100/1300 module |
| port: | Qingdao/Tianjin | chemical composition: | Aluminum oxide |
| feature: | Excellent tensile strength, fireproof | color: | white |
| payment terms: | L/C, Western Union, D/P, D/A, T/T, MoneyGram | Operating temperature: | 1050/1260/1350/1430/1600c/1260c |
| density: | 160-220 | usage: | Industrial furnace |
| Supply capacity: | 5000 metric tons per month | product name: | Yutai Ceramic Fiber Components |
| Package preview: | application: | refractory |

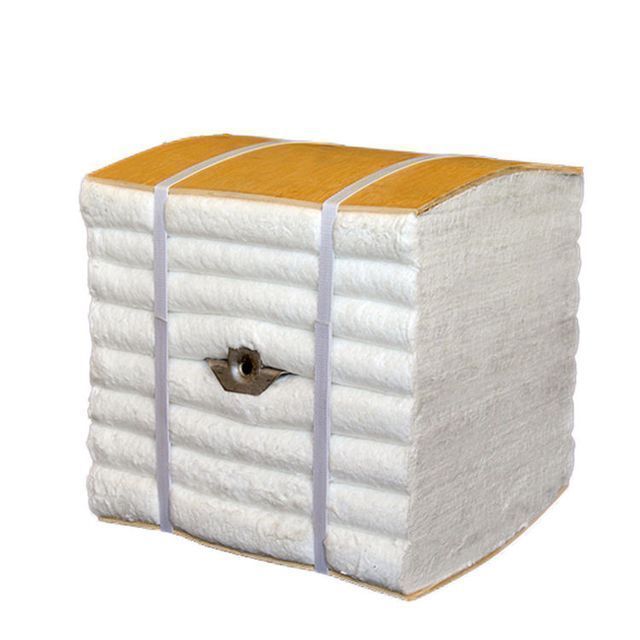

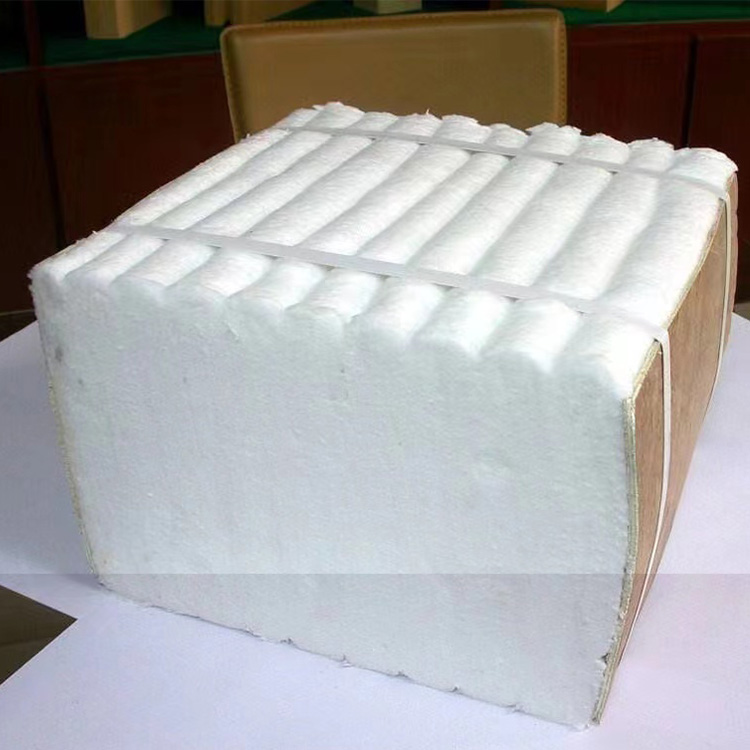

STD/HP/HA/HZ MODULE Cost-effective fireproof insulation ceramic fiber module
Product Details:
Yutai Wool®Modules are made of compressed ceramic fiber blankets. This module is specially designed to meet the insulation requirements of industrial furnaces under certain special thermal conditions. Yutai Wool®Modules are produced with a variety of anchoring systems, allowing quick, easy and efficient installation in most furnace linings. Modular linings can increase furnace productivity and reduce maintenance costs..
Application industry:*Steel industry*Ceramic industry*Oil refining and petrochemical industry
describe | standard module | HP module | HA module | Hertz module | ||||||||||||||
Grading temperature (°C) | 1260 | 1260 | 1350 | 1430 | ||||||||||||||
chemical composition(%) | ||||||||||||||||||
Aluminum oxide | ≥43 | ≥44 | ≥52 | ≥35 | ||||||||||||||
silica | ≥54 | ≥55 | ≥47 | ≥49 | ||||||||||||||
Zirconia | - | - | - | ≥15 | ||||||||||||||
color | white | white | white | white | ||||||||||||||
Shot content (%) | ≤15 | ≤15 | ≤15 | ≤12 | ||||||||||||||
Density (kg/m3) | 64 | 96 | 128 | 96 | 128 | 96 | 128 | 96 | 128 | |||||||||
Tensile strength (kPa) | 30 | 50 | 70 | 50 | 70 | 50 | 70 | 50 | 70 | |||||||||
Permanent line shrinkage (%) | 1000℃×24h≤2.5 | 1100℃×24h≤2.5 | 1200℃×24h≤3.0 | 1350℃×24h≤3.0 | ||||||||||||||
Thermal conductivity (W/m·K) | ||||||||||||||||||
200℃ | 0.07 | 0.06 | 0.06 | 0.06 | 0.06 | 0.06 | 0.06 | 0.06 | 0.06 | |||||||||
400°C | 0.12 | 0.11 | 0.10 | 0.11 | 0.10 | 0.11 | 0.10 | 0.11 | 0.10 | |||||||||
600°C | 0.20 | 0.19 | 0.18 | 0.19 | 0.17 | 0.18 | 0.16 | 0.16 | 0.15 | |||||||||
800℃ | 0.30 | 0.23 | 0.20 | 0.23 | 0.20 | 0.22 | 0.20 | 0.21 | 0.19 | |||||||||
1000℃ | 0.40 | 0.32 | 0.27 | 0.31 | 0.26 | 0.30 | 0.26 | 0.30 | 0.26 | |||||||||
Henan Yutai High Temperature New Material Technology Co., Ltd. was founded in 1990 and is located in Henan, the main production area of China's refractory industry. Since its establishment, the company has gone through more than ten years of research and development, and has conducted in-depth research on refractory materials used in iron and steel, nonferrous metallurgy, thermal power, oil refining and other industries, especially in the iron and steel industry. An integrated professional company. Under the leadership of the company's leaders, we strictly follow the principle of "regarding credit as benefit and quality as life" and regard it as the purpose of the company. Since its establishment, the company has continuously won praise from users. It has been rated as "National Quality Management Standard Enterprise" by Henan Provincial Bureau of Technical Supervision, and "China Quality and Integrity AAAA Brand Enterprise" by China Enterprise Famous Brand Cultivation Working Committee and China Quality Certification Center. The local municipal government has been rated as "advanced unit", "big taxpayer", "contract-abiding and credit-worthy enterprise" and many other honors!
Q1: How do you control your quality?A1: From raw materials to finished products, we have undergone 21 sampling inspections and strictly follow the quality standards to make the products reach the best performance.Q2: Are you a manufacturer or trader?A2: We are the real manufacturer, we can not only provide the best price with high quality products, but also the best pre-sale and after-sale service.Q3: Do you provide free samples?A3: Of course, free samples can be provided.Q4: What's the delivery time for Q4?A4: It usually takes about 15-20 days after receiving the purchase order.Q5: Can we visit your company?A5: Yes, of course. Welcome to visit YUTAI company and our products.Q6: What is the minimum quantity for a trial order?A6: No limit, we can provide the best suggestion and solution according to your situation.Q7: Why choose us?A7: We have 30 years of industry experience and can provide you with good technical services.
Good thermal insulation performance refractory module airgel high temperature alumina zirconia ceramic fiber blanketRefractory module airgel high temperature alumina zirconia ceramic fiber blanket with good thermal insulation performance Refractory module airgel high temperature alumina zirconia ceramic fiber blanket with good thermal insulation performance
