Fefraticory price biosoluble fiber optic module
- 1 piece
- Luyang Energy-Saving Materials Co., Ltd.
- Shandong, China
- Mr Louis LU
Product Detail
Product Description

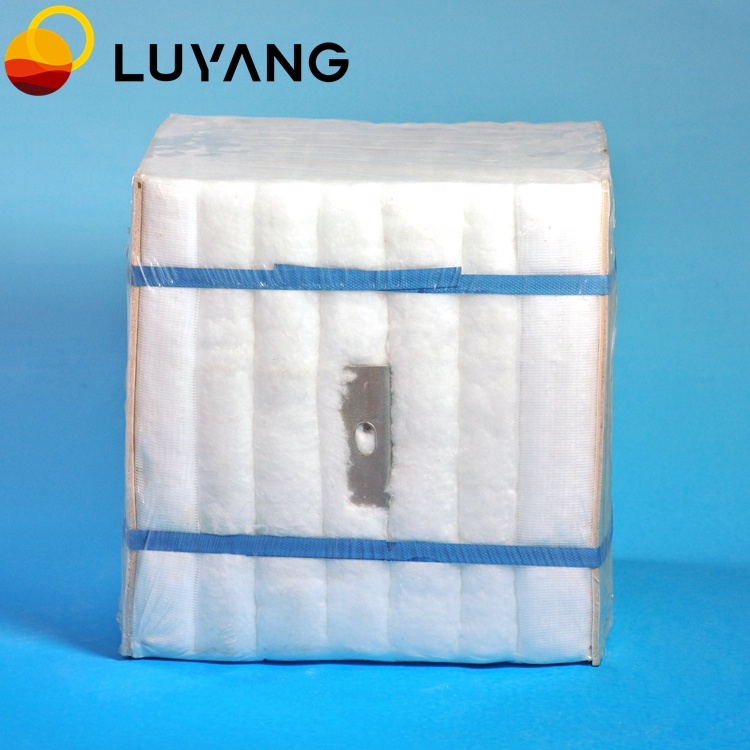

Biowool® module
Biowool® modules are made of compressed soluble fiber blankets. This module is specially designed to meet the thermal insulation requirements of industrial furnaces under certain special thermal conditions. BiOwool® modules are produced by a variety of anchoring systems for quick, simple and efficient installation in most furnace linings. Module lining can increase furnace productivity and reduce maintenance costs.
Biowool® Soluble Fiber Module/Alkaline Silicate Fiber Module
Quick and easy installation
Quick and easy repair
Fast temperature cycle
Quick and easy repair
Fast temperature cycle
Lower installation and repair costs
Low heat storage
Low heat storage
Typical parameters
describe | Biowool®1100 module | Biowool®1300 module | ||
Classification temperature (℃) | 1100 | 1300 | ||
Chemical composition (%) | ||||
Sio2 | 62-68 | ≥70 | ||
CAO | 26-32 | - | ||
MGO | 4-7 | - | ||
CAO+MGO | - | ≥20 | ||
color | White | White | ||
Density (kg/m³) | 160-220 | 160-220 | ||
Permanent linear shrinkage (%) | 1100 x x24H≤1.0 | 1260℃x 24H≤3.0 | ||
Thermal conductivity (w/m·k) | ||||
400℃ | 0.07 | 0.07 | ||
600℃ | 0.11 | 0.13 | ||
800℃ | 0.17 | 0.20 | ||
1000℃ | 0.23 | 0.30 | ||
1200℃ | - | 0.41 | ||

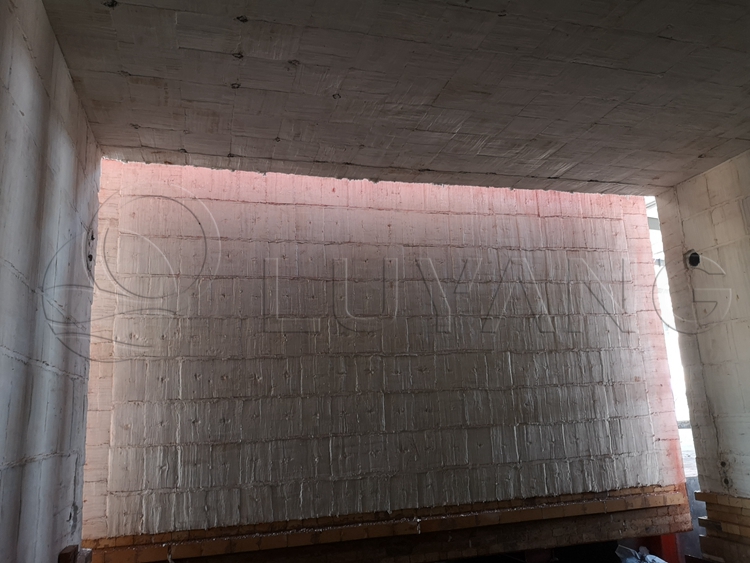

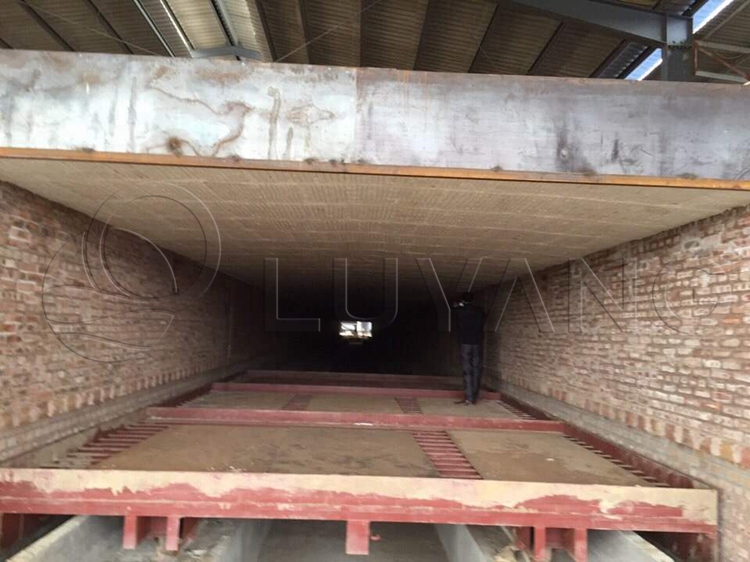

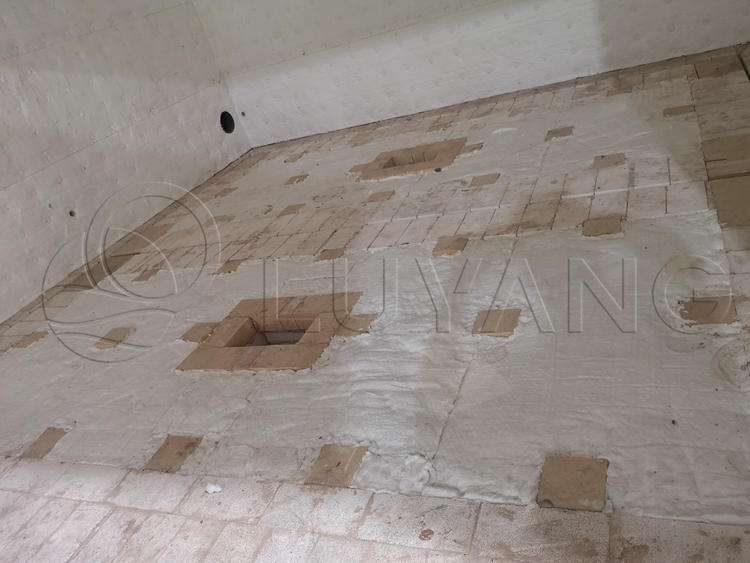

application
