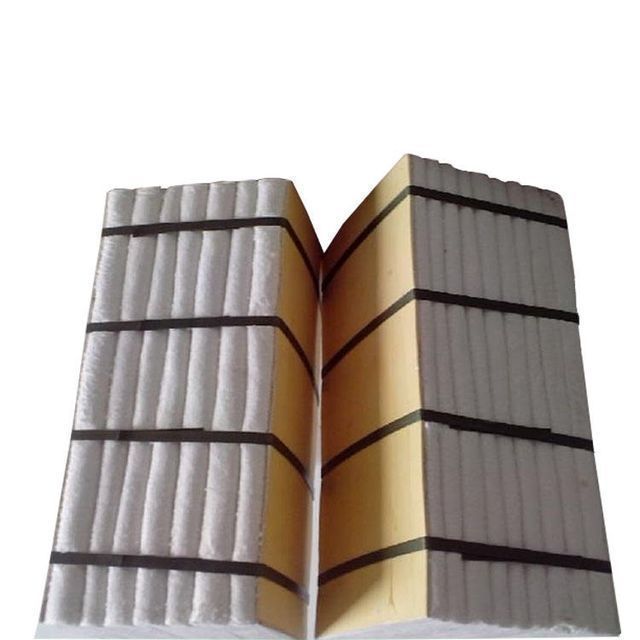

Mineral ceramic fiber modular kiln for brick lining
- $0.80 /kilogram
- 1 kilogram
- Shandong Minye Heat-Preservation Material Co., Ltd.
- Shandong, China
- Ms echo s
Product Detail
| payment terms: | L/C, D/P, D/P, T/T | feature: | fire protection |
| pack: | carton | Classification temperature: | 1050/1260/1350/1430 |
| usage: | Industrial furnace | Material: | Aluminum silicate |
| density: | 180-240 kg/m3 | Packaging Details: | Woven bag |
| port: | Qingdao | size: | 300*300*300mm 300*300*250mm |
| Supply capacity: | 50000 kA per day | Processing: | accept |
| describe: | Refractory Ceramic Fiber Module | Product Keywords: | Ceramic fiber modules for fireplace tunnels |
| product name: | Fireproof aluminum insulated ceramic fiber module |
Product parameters
Item/Specification | Common | standard | high purity | high aluminum | Zirconium | ||||
Grading temperature (°C) | 1050 | 1260 | 1260 | 1360 | 1430 | ||||
Working temperature (℃) | 1000 | 1050 | 1100 | 1200 | 1350 | ||||
Bulk density (kg/m3) | 220±15 | 220±15 | 220±15 | 220±15 | 220±15 | ||||
Aluminum oxide | 42-44 | 45-46 | 47-49 | 52-55 | 39-40 | ||||
Al2o3+ silica | 96 | 97 | 99 | 99 | - | ||||
Al2o3+sio2+zro2 | - | - | - | - | 99 | ||||
ZRO2 | - | - | - | - | 15-17 | ||||
Ferric oxide | ≤1.2 | ≤1 | 0.2 | 0.2 | 0.2 | ||||
Na2O+k2O | ≤0.5 | ≤0.5 | 0.2 | 0.2 | 0.2 | ||||
Pack | Woven bag/carton | ||||||||
Regular size | Common specifications 600*240-300*100-200 (without glue) 300*300*250 (with anchors) Other structural modules can be made according to the drawings provided by users | ||||||||
place of origin; place of origin | Shandong, China (Mainland) | Fiber diameter | 3-5um | ||
Density (kg/m3) | 75-128 | product name | Ceramic Fiber Module | ||
size | client needs | brand | civilian industry | ||
application | insulation | color | pure white | ||
chemical composition | SIO2 AL2O3 | Operating temperature | 1000/1050/1100/1200/1350 | ||
