3mm ceramic fiber paper for kiln insulation
-
$50.00 / 10 - 49 kilograms
$48.00 / 50 - 99 kilograms
$46.00 / 100 - 299 kilograms
$42.00 / >=300 kilograms - 10 kilograms
- Shine Technology Co., Ltd.
- Beijing, China
- Ms Nancy Lee
Product Detail
| Supply capacity: | 200 metric tons per month | Operating temperature: | 1260C/2300F |
| brand: | shine | Grading temperature: | 1260 degrees Celsius |
| product name: | 0.5mm-10mm thick ceramic fiber insulation paper | Packaging Details: | Standard export carton |
| chemical composition: | Alumina + Silica | application: | insulation |
| Fiber Diameter: | 3-5um | grade: | HP (high purity) |
| length: | 10/12/15/20/30/60 meters | Raw materials: | ceramic fiber block |
| Density (kg/m3): | 160 | density: | 200kg/cubic meter |
| width: | 610/1220mm | Thermal Conductivity: | 0.110-0.121(400) |
| Shrinkage (1800℉, 3 hours): | 3%~3.5% | payment terms: | L/C, Western Union, D/P, D/A, T/T, MoneyGram, Paypal; Alibaba Trade Assurance |
| Ultimate Strength (≥MPa): | 0.3 | pack: | Inner plastic bag + outer box |
| place of origin; place of origin: | Shandong China | model: | HP-1260C |
| color: | white | port: | any china port |
Ceramic fiber paper for kiln insulation
feature:
Ceramic fiber paper is made of high-purity ceramic fiber, and is continuously produced by wet-process inorganic ceramic fiber mechanization.
Low thermal conductivity, low heat capacity
Low lens content
Good tear resistance, high flexibility
Asbestos-free, corrosion-resistant and non-reactive with liquid aluminum
Good electrical insulation and sound insulation properties
excellent mechanical properties
application
Industrial insulation, sealing, protective materials
Insulation and heat insulation materials for electric heating devices
molten metal gasket
Instrument equipment, electric heating element insulation and heat insulation materials
fire protection
vehicle insulation box
Expansion joint filler
|
Classification temperature (°C) |
ST-1260 |
ST-1430 |
|
|
Density (kg/m3) |
200±15 |
200±15 |
|
|
Organic content (%) |
6-8 |
6-8 |
|
|
Tensile strength (kpa) |
1mm≥300; 2-6mm≥400 |
||
|
Permanent linear shrinkage (℃*24hrs) |
≤-3.5 (1000℃) |
≤-3.5 (1000℃) |
|
|
Thermal conductivity ( W/nk ) |
400°C |
0.115-0.121 |
|
|
600°C |
0.165-0.175 |
||
Dimensions (mm)
|
60000*610/1220*1 |
30000*610/1220*2 |
20000*610/1220*3 |
10000*610/1220*8 |
|
15000*610/1220*4 |
12000*610/1220*5 |
10000*610/1220*6 |
8000*610/1220/10 |

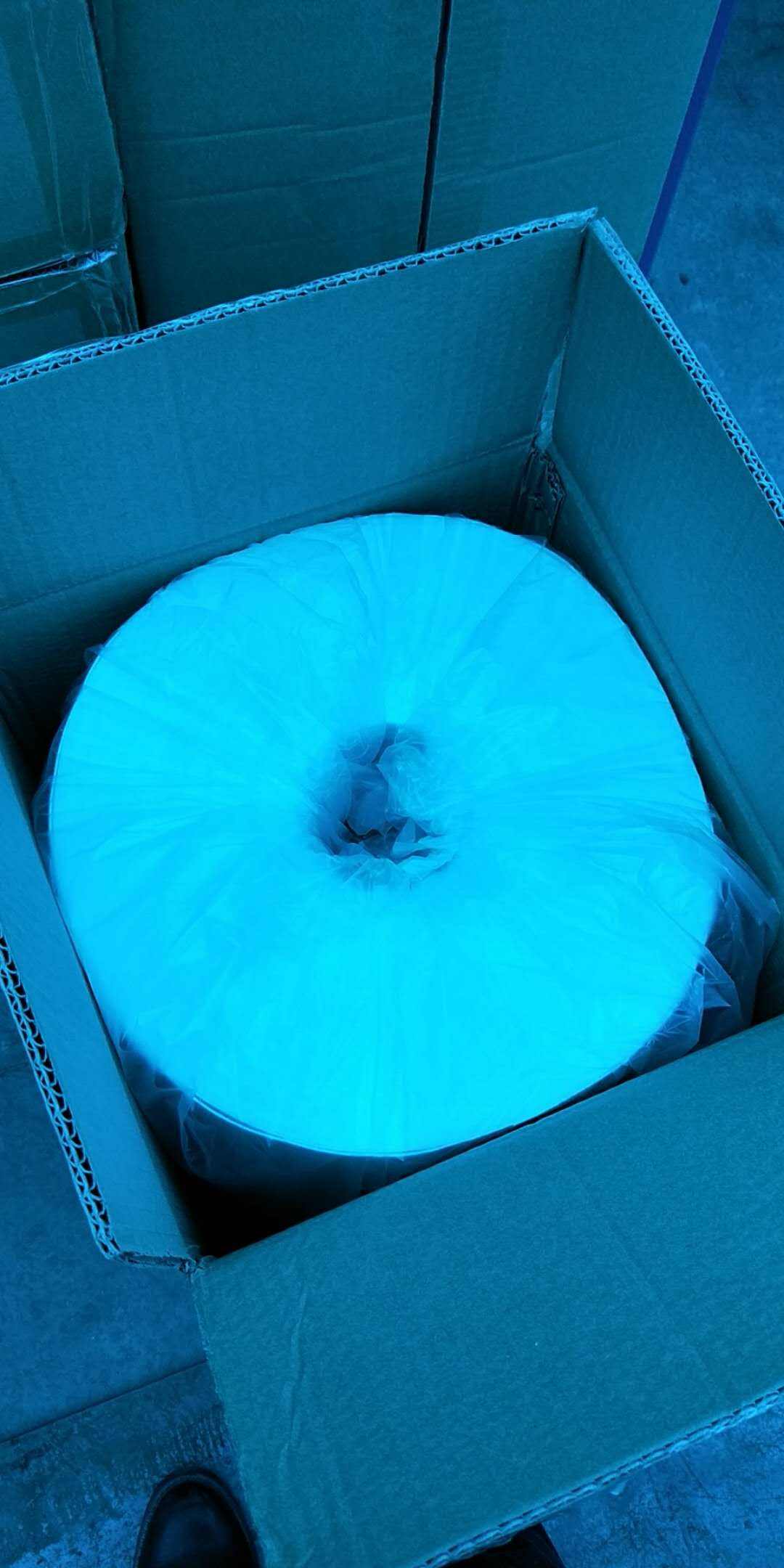

Standard export cartons, we can add wooden pallets if required.
1. Timely response,
Respond to your inquiries in a timely manner, make multiple recommendations according to your needs, quickly reply to emails and provide solutions.
2. Sample Evaluation
Accept to provide samples and trial orders for quality evaluation.
3. Strict quality control
Arrange production on time and strictly control quality.
4. Short delivery time
Book the earliest ship or plane to guarantee delivery time.
5. Professional and complete shipping documents
Provide all detailed news and pictures from order to delivery;
If necessary, the original relevant export documents and certificates can be provided;
6. Warm and thoughtful after-sales service
