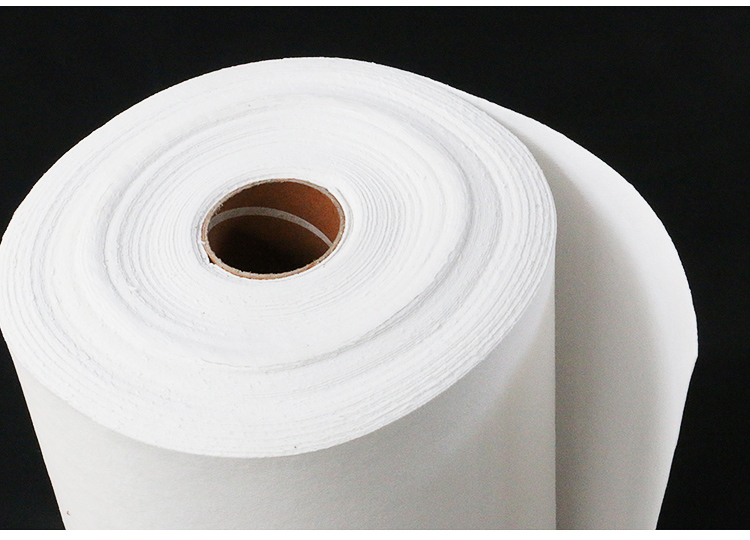

Aluminum silicate ceramic fiber paper with a thickness of 0.5-13 mm Thermal insulating ceramic fiber paper 1260
-
$5.00 / 10 - 49 rolls
$3.00 / 50 - 99 rolls
$1.00 / >=100 rolls - 10 rolls
- Zhengzhou Rongsheng Import And Export Co., Ltd.
- Henan, China
- Mr Rongsheng Refractory
Product Detail
| Fiber diameter: | 3-5 microns | thickness: | 0.5-13mm or customer requirements |
| brand: | Rongsheng | Ultimate strength (≥MPa): | 0.04 |
| Packaging details: | Standard export packaging: 1. Inner plastic bag, outer woven bag. 2. According to customer's requirements. | Place of origin: | Henan, China |
| Supply capacity: | Daily production of 100 tons of refractory ceramic fiber blanket 25mm thick | shape: | ceramic fiber blanket |
| pack: | Inner plastic bag, outer woven bag | payment terms: | L/C, Western Union, D/P, D/A, T/T, MoneyGram, PayPal |
| Density (kg/cubic meter): | 128 | Thermal Conductivity: | 0.055-0.180(Wkm) |
| model: | Rongsheng | Certificate: | ISO9001 |
| Organic content (%): | Ceramic fiber | Advantage: | Low thermal conductivity |
| width: | 610/1220mm | length: | Customer requirements, 12000/15000/20000/30000/40000/60000mm |
| chemical composition: | Aluminum trioxide + silica | grade: | HAZ (High Aluminum Zirconium) |
| Operating temperature: | 1000℃--1350℃,1000-1350 | product name: | Fire-resistant ceramic fiber paper |
| application: | Industrial furnaces, refractory materials | port: | Shanghai, Qingdao, etc. |
| Package preview: |
Product Description
Description of ceramic fiber paperCeramic fiber paper is made of high-grade ceramic fiber with low slag ball content. It has high temperature resistance, heat insulation, high melting resistance, extremely low thermal conductivity, chemical corrosion resistance and thermal shock stability. Ceramic fiber paper has excellent strength, toughness and wind erosion resistance. Ceramic fiber products are ideal energy-saving materials for thermal equipment such as furnaces, kilns, and pipelines.
Features of ceramic fiber paper:
1: Low heat capacity 2: Low thermal conductivity 3: Excellent electrical insulation properties 4: Excellent mechanical processing properties 5: High strength, tear resistance 6: High flexibility 7: Low slag content 8: Excellent fire resistance
Specification
Standard size: 60000x610x1mm / 30000x610x2mm / 20000x610x3mm / 15000x610x4mm / 12000x610x5mm / 10000x610x6mm
type | Standard ceramic fiber paper | High purity ceramic fiber paper | High alumina ceramic fiber paper | Zirconium ceramic fiber paper | |||||
Chemical analysis(%) | Aluminum oxide | 43 | 47 | 55 | 38 | ||||
Silica | 53 | 51 | 44 | 44 | |||||
Iron oxide + iron titanate | ≤1.2 | ≤0.3 | ≤0.3 | ≤0.2 | |||||
Calcium oxide + magnesium oxide | ≤0.3 | ≤0.3 | ≤0.3 | ≤0.2 | |||||
Sodium oxide + potassium oxide | ≤0.5 | ≤0.3 | ≤0.3 | ≤0.2 | |||||
Organic content (%) | 5% | ≤5% | ≤5% | ≤5% | |||||
Density(kg/m3) | 180-220 | 180-220 | 180-220 | 180-220 | |||||
Operating temperature | 1050 | 1150 | 1250 | 1350 | |||||
thickness | 0.5-12mm | ||||||||
Dimensions (mm) | 40000x1220x1; 40000x610x1; 30000x1220x2; 30000x610x2; 20000x1220x3; 20000x610x3; 15000x610x4; 10000x610x5 | ||||||||
Applications
1: Industrial insulation, sealing, anti-corrosion materials 2: Instrument, heating element insulation materials 3: Automobile, aerospace industry insulation materials 4: Expansion joint filling materials 5: Building materials, metallurgy, glass industry isolation 6: Molten metal sealing gasket 7: Fireproofing 8: Alternatives to Fiberglass and Asbestos Fibers

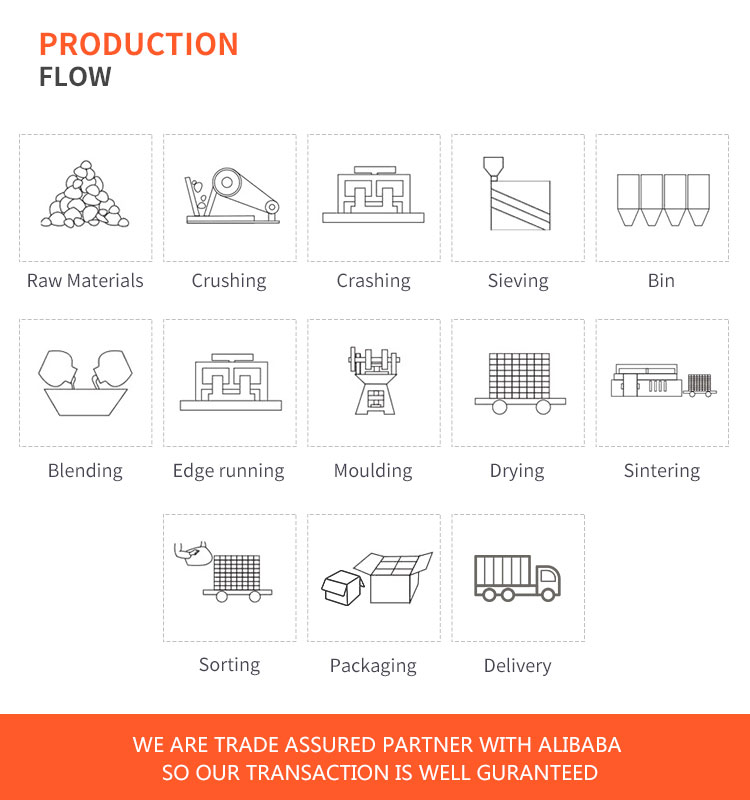

Production Process
