Heat-resistant isolation insulation ceramic fiber paper gasket directly supplied by the manufacturer

Product Detail

Supply capacity:500 tons of heat-resistant paper per monthFiber diameter:3μm-5μm
port:Qingdao, Chinamodel:GB/T JQ-104HZ
Shrinkage (1800°F, 3 hours):≤-3size:Require
Operating temperature:1450℃Working temperature (℃):1150/1250/1350
raw material:Ceramic fiber bulkPlace of origin:Shandong Province, China
brand:top nineName:Heat Resistant Isolation Ceramic Fiber Paper Supplier
payment terms:L/C, Western Union, D/P, D/A, T/T, MoneyGram, Trade AssuranceThermal Conductivity:0.160~0.180(W/mk)
grade:ST/HP/HA/HZ,HZ (high zirconium)Packaging details:1. Inner plastic bag, outer carton 2. Ordinary carton size: 310x310x620mm (1 roll of heat-resistant paper)
width:610mm/1220mmMaximum temperature(℃):1260/1350/1450
type:1260 ceramic fiber paperchemical composition:Alumina, silica
Ultimate strength (≥MPa):0.3length:60000-12000mm
color:pure whiteDensity (kg/cubic meter):160
thing:HZ flame retardant paperDensity (kg/cubic meter):170-220
application:Adiabatic

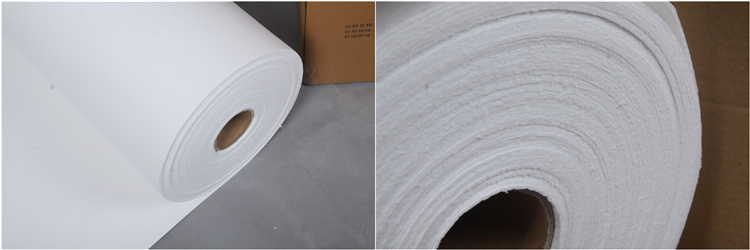

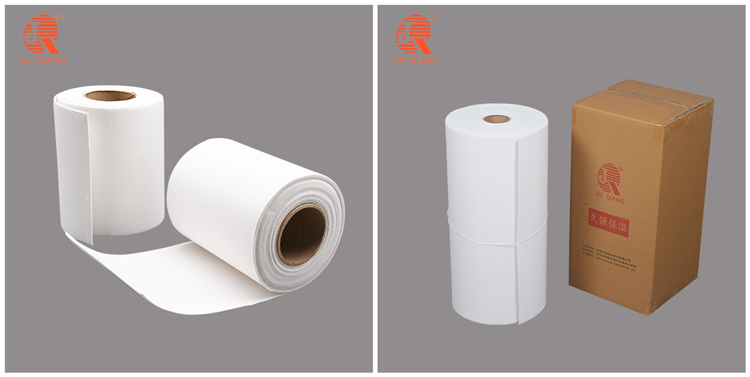

Heat Resistant Isolation Ceramic Fiber Paper Supplier

Product Description

Product ethicsinscription

Jiuqiang ceramic fiber paper is made of high-grade ceramic fiber as raw material and through fiber washing process. Ceramic fiber paper is made of high-purity refractory fiber and is used in high-temperature insulation fields. This ceramic fiber paper can be used in various types of refractory and sealing applications.

Features

1.Light weight and flexible

2. Low thermal conductivity and low heat storage

3. Asbestos-free and anti-corrosion

4.Excellent corrosion resistance

5. Good electrical insulation

6. Low slag ball content and no stratification

Applications

1. Industrial thermal insulation sealing and corrosion-resistant materials,

2. Thermal insulation and electrical insulation materials

3.Insulation materials for instrument equipment

4.Kiln deck insulation covering

Technical data

Technical data

grade standard High aluminum zirconium
Maximum temperature(℃) 1260 1360 1450
Working temperature(℃) 1150 1250 1350
color pure white pure white pure white
Density (kg/m33) 170-220 170-220 170-220
Thermal conductivity (w/mk)

0.07(400℃)

0.09(600℃)

0.12(800℃)

0.069(400℃)

0.088(600℃)

0.110(800℃)

0.068(400℃)

0.087(600℃)

0.100(800℃)

Compressive strength (Mpa) 0.65 0.70 0.75
chemical composition(%) aluminum2oxygen 42-43 51-52 39-40
Silica 53 44 44
Zirconia - - 15-17th
Iron oxide + iron titanate ≤1.2 ≤0.3 ≤0.2
Sodium oxide + potassium oxide ≤0.5 ≤0.3 ≤0.2
Calcium oxide + magnesium oxide ≤0.3 ≤0.3 ≤0.2
Dimensions (mm) length*width*height

90,000*610/1,220*0.5

60,000*610/1,220*1

30,000*610/1,220*2

20,000*610/1,220*3

15,000*610/1,220*4

12,000*610/1,220*5

10,000*610/1,220*6
