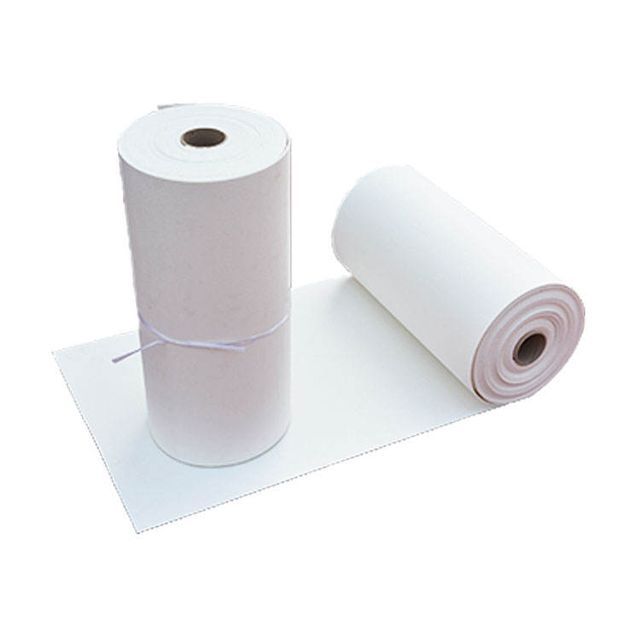

Customized 5mm thick khmer ceramic cotton fiber paper

  • $100.00 / 1 - 99999 rolls
    $20.00 / >=100000 rolls
  • 1 roll
  • Henan Synthe Corporation
  • Henan, China
  • Ms Jane Chen

Product Detail

Packaging details:5mm thick Khmer ceramic cotton fiber paper Inner layer: plastic film Middle layer: foam Outer layer: wooden boxproduct name:5mm thick khmer ceramic cotton fiber paper
Fiber Diameter:3-5 micronsmodel:HN-1200
application:isolationShrinkage (1800°F, 3 hours):1200°F, 24 hours
length:40000MMCertificate:Environmental Hazardous Substances Directive
port:any portSupply capacity:3000 volumes per month
Maximum temperature:1260/1350/1450grade:HP (high purity)
Package preview:brand:Synchronize
Bulk density:96 kg/cubic meter-128 kg/cubic meter-160 kg/cubic meterapplication:refractory
usage:Caster top spacerwidth:1200MM
size:10000/20000/30000/40000*610/1200*1/2/3/4/5chemical composition:Alcio 2
Thermal Conductivity:800℃ 0.19color:pure white
payment terms:Letter of credit, wire transferOperating temperature:1200
Origin:Henan, ChinaCeramic paper:Paper thickness 5mm
type:1260 ceramic fiber paperUltimate Strength (≥MPa):0.2
Density (kg/cubic meter):96
Features:
1. Low thermal conductivity and low heat capacity
2. Low shot content
3. Good tear resistance and high flexibility
4. Asbestos-free, corrosion-resistant, and does not react with molten aluminum
5. Good electrical insulation and sound insulation properties
6.Excellent mechanical properties
Specification
type
Standard type
High aluminum type
Zirconium type
Classification temperature
(℃)
1100
1350
1430
Operating temperature
(℃)
1000
1200
1350
average capacity
(kg/cubic meter)
220
220
220
tensile strength
(MPa)
0.75
0.75
0.75
Loss on ignition
(%)
6
6
6
organic content
(%)
10
8
8
Thermal Conductivity
(w/mk)
800℃0.195
800℃ 0.19
800℃ 0.18
Lining shrinkage when heated
(%)
1000℃×24h≤3.5
1000℃×24h≤3.0
1000℃×24h≤3.0
chemical composition
(%)
Aluminum oxide
45
50
50
Silica
52
49
30
Ferric oxide
≤2.0
≤1.2
-
Zirconia
-
-
20
detailed picture
Applications:
1.Industrial insulation, sealing and protective materials
2. Electric heating device insulation and heat insulation materials
3. Molten metal gasket
4. Insulation and heat insulation materials for instrument equipment and electric heating elements
5. Fireproof
6. Vehicle insulation layer
7.Expansion joint filler
