1260C ceramic fiber blanket fireproof lining material for kiln/stove/pizza oven stove/fireplace

Product Detail

length:7200mmpayment terms:L/C, D/P, T/T, Western Union
Operating temperature:1260-1430℃application:Industrial lining
Density (kg/m3):128Supply capacity:1000 tons per month
Ultimate Strength (≥MPa):0.04place of origin; place of origin:Henan, China
Feature 1:Low thermal conductivity, small heat storagequality assurance:one year
Fiber Diameter:2-3umcolor:white, pure white
pack:carton or woven bagchemical composition:SIO2 AL2O3
Alumina + Silica:96-99%width:610/1220mm
Thermal Conductivity:0.055-0.180 (weekly kilometers)Bulk density:64/80/96/128/160kg/m3
model:Fireproof Materialssample:free
Feature 2:good thermal shock resistancegrade:Serial port (common)
Certificate:ISO9001:2000port:Qingdao and other major Chinese ports
thickness:6-50mmShrinkage (1800℉, 3 hours):< -3
Shipping Details:Within 7-15 daysAlumina:39-55%
brand:LitePackaging Details:1. Outer carton, inner plastic bag or according to customer requirements

1260C ceramic fiber blanket fireproof lining material for kiln/stove/pizza oven stove/fireplace

Product Description

What are the details of our fireproof materials?

1. High temperature oven insulation blanket is made of high quality materialAluminum silicate ceramic fiberThe method of double-side needling improves the tensile strength and flatness of the ceramic fiber blanket.

2. High temperature oven insulation blanket containsDoes not contain organic bindersThe stability and constructability of ceramic fiber blankets at high and low temperatures are guaranteed.

What are the technical data of our fire protection materials?

grade

Common

standard

High purity

High Aluminum A

zirconium

maximum. temperature (°C)

1100

1260

1260

1360

1450

Working temperature (°C)

< 1000

1150

1180

1260

1350

color

pure white

pure white

pure white

pure white

pure white

Density (kg/m33)

96/128/160

96/128/160

96/128/160

128/160

128/160

Heat shrinkage (%)

(24 hours, the density is 128/m3)

-4
(1000℃)

-3
(1000℃)

-3
(1100℃)

-3
(1250°C)

-3
(1350°C)

Thermal conductivity at average temperature. (w/mk)

(density is 128kg/m3)

0.09(400℃)
0.16(800℃)

0.09(400℃)
0.16(800℃)

0.09(400℃)

0.16(800℃)
0.20(1000℃)

0.12(600℃)
0.20(1000℃)

0.16(800℃)
0.20(1000℃)

Tensile Strength (MPa)
(density is 128kg/m3)

0.04

0.04

0.04

0.04

0.04

chemical composition

(%)

Al2Europe3

44

46

47-49

52-55

39-40

Al2Europe3+ silica2

96

97

99

99

-

Al2Europe3+ silica2+zirconia2

-

-

-

-

99

Zirconia2

-

-

-

-

15-17

iron2Europe3

<1.2

<1.0

0.2

0.2

0.2

sodium2good+good2Europe

≤0.5

≤0.5

0.2

0.2

0.2

Dimensions (mm)

15000×610/1220×10 14400×610/1220×12.5

7200×610/1220×20 7200×610/1220×25

5000×610/1220×30 4500×610/1220×40

3600×610/1220×50 (Other sizes and shapes are available.

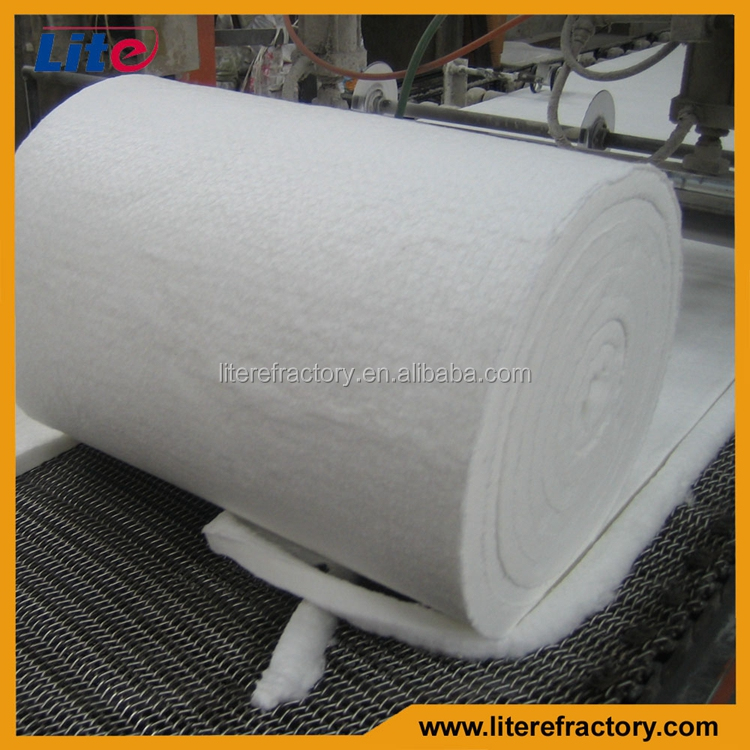

product photo

What are the characteristics of our fireproof materials?

1. Excellent thermal insulation,

2. Excellent chemical stability,

3. Shock and chemical corrosion resistance,

4. Low thermal conductivity, small heat storage,

5. Excellent thermal stability and thermal shock resistance,

6. Excellent tensile strength,

7. Excellent heat preservation, fire prevention and sound absorption performance.

What are the applications of our fire protection materials?

industry

application

ceramic industry

Kiln car insulation and sealing,

Continuous Kiln and Batch Kiln





iron industry

Heat treatment and annealing furnaces, furnace door linings and seals,

Soak pit covers and seals,

Furnace Hot Surface Repair,

Furnace and ladle covers,





Refining and petrochemical industry

reformer and pyrolysis linings,

Pipe seals, gaskets and expansion joints, high temperature pipe, pipe and turbine insulation

Crude oil heater lining



power generation industry



Boiler insulation, boiler doors, reusable turbine covers, expansion seals/duct coverings





other

Insulation of Commercial Dryers and Ovens

Overlay on existing refractory

Strain relief insulation

Glass Furnace Roof Protection

fire protection



Packaging and Shipping

Bale

shipping

1.FedEx/DHL/UPS/TNTsample.

2.Bulk shipments by sea.

3. The customer appoints the freight forwarder or negotiates the transportation method!

4.delivery time:3 days for common shape samples, within 7-15 days for bulk goods.



payment terms

1. Payment method:T/T, Western Union, L/C; usually 30% deposit, 70% balancebefore delivery ornegotiationsolve.

2. MOQ: usually1 roll,

3. Quality assurance:1 year,

4. Packing information: outer carton, inner plastic bag or according to customer requirements.

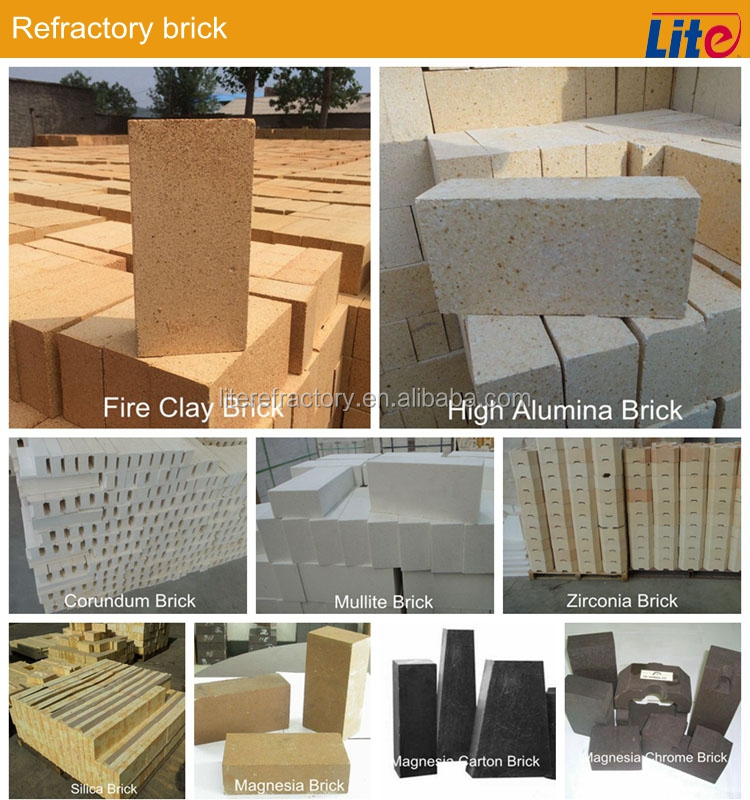

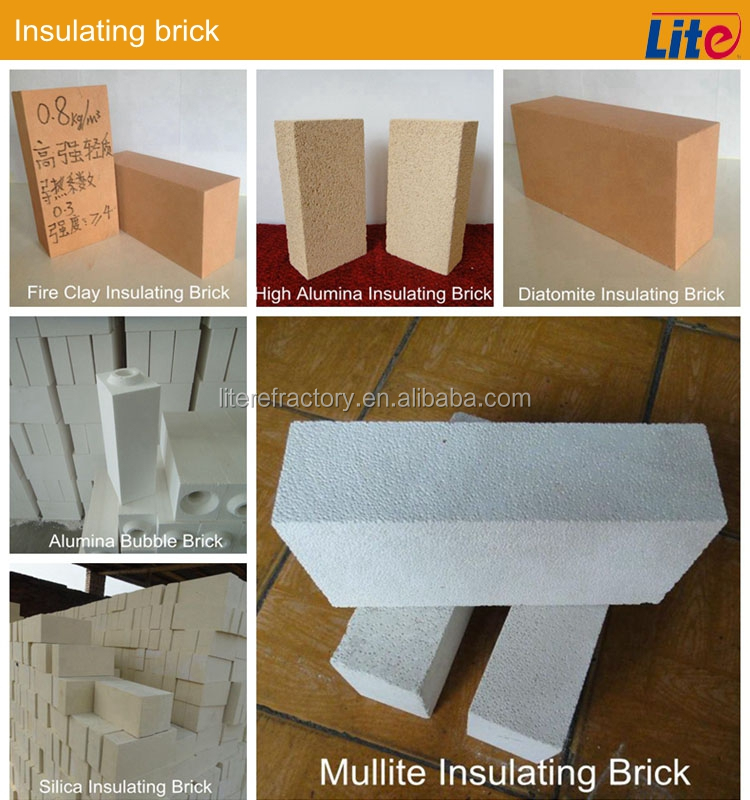

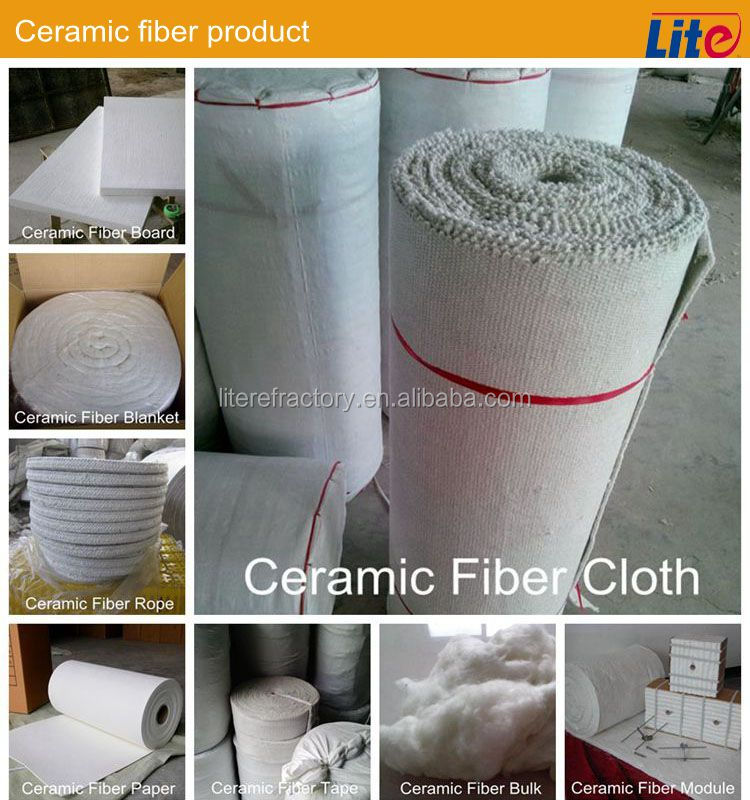

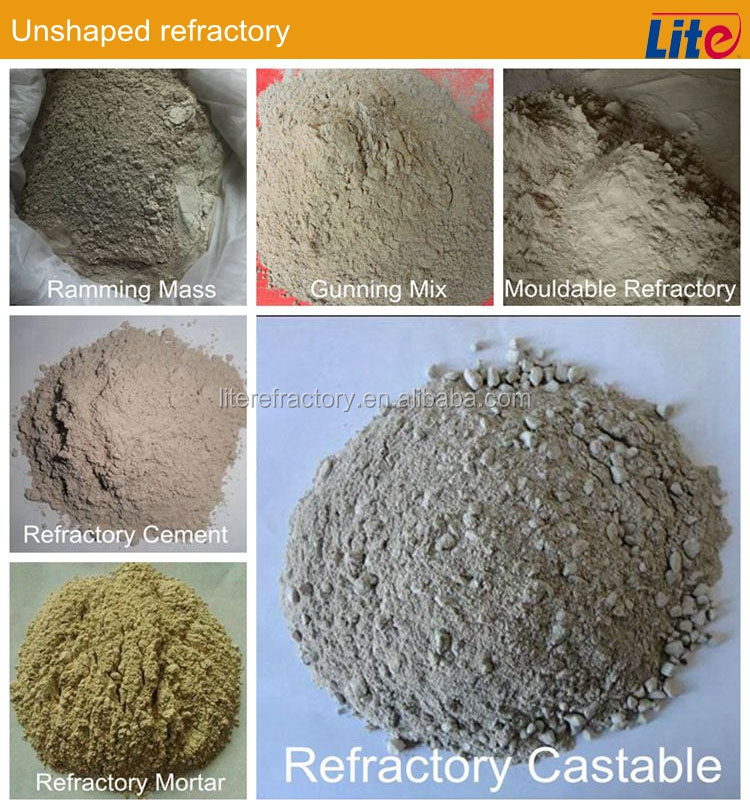

Other refractories
