High Quality Price Boiler Insulation Ceramic Fiber Blanket For Sale

Product Detail

thickness:12.7MM, 25.4MM, 50MMPackaging Details:Polyethylene bag+carton+pallet
Origin:Beijing Chinamodel:ceramic fiber blanket
Supply capacity:50 metric tons per monthport:Tianjin
Operating temperature:1000-1430℃length:14.4M, 7.2M, 3.6M
product name:ceramic fiber blanketwidth:610MM, 1000MM, 1220MM
payment terms:L/C, T/Tapplication:Industrial Furnace Lining
Product Description

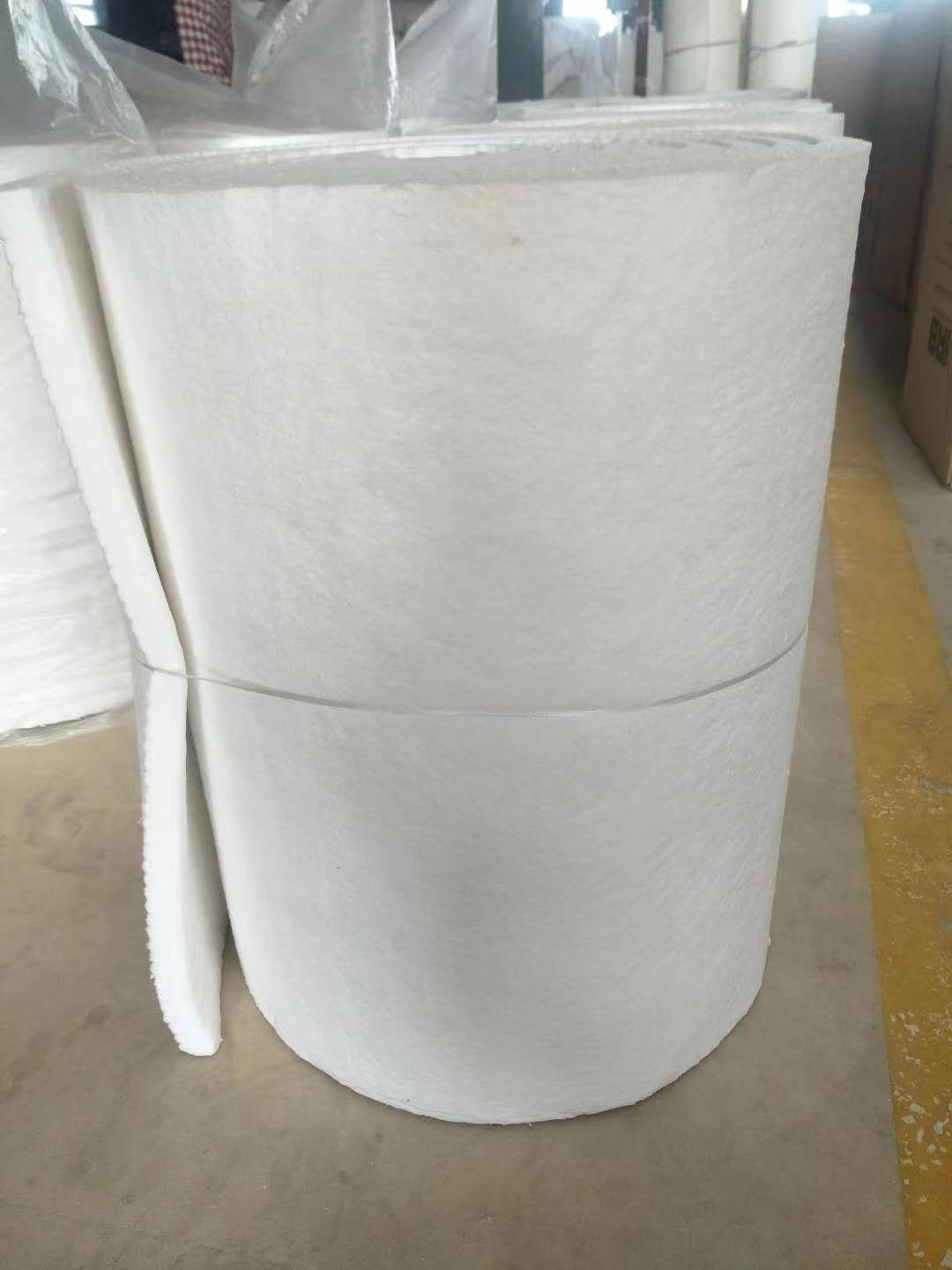

ceramic fiber blanket
Performance:Ceramic fiber blanket is a kind of fireproof material without any binder, which has low electrical conductivity, low heat capacity, good chemical stability, excellent thermal stability, thermal shock resistance, good tensile strength and good sound absorption ability.application:Used in industrial furnaces, heating equipment, high-temperature pipeline lining, furnace expansion joint sealing, furnace masonry, furnace door cover sealing and other fields.Specification:Normal thickness: 12.7mm, 25.4mm, 50mm Normal width: 610mm, 1000mm, 1220mm Normal length: 14.4m, 7.2m, 3.6m Working temperature: 1000-1430℃
Specification
Ceramic fiber blanket technical parameters
thing
Common
standard
High purity
zirconium and aluminum
zirconium
Maximum temperature (℃)
1000
1260
1260
1400
1430
Working temperature (℃)
800
1000
1100
1260
1350
color
white
white
white
white
white
Density(kg/m3)
64
96
128
64
96
128
64 96
128
. 96
128
96
128
160
Liner rate (%)
(24 hours, density 128kg/m3)
≤4
(1000℃)
≤4
(1000℃)
≤4
(1100℃)
≤4
(1260°C)
≤4
(1350°C)
heat rate
Conductivity
(w/mk)
(density 128kg/m3)
0.153(400℃)
0.165(800℃)
0.153(400℃)
0.165(800℃)
0.14(400℃)
0.16(800℃)
0.165(1000℃)

0.15(600℃)
0.165(1000℃)

0.153(800℃)
0.16(1000℃)
Tensile strength (Mpa)
(density 128kg/m3)
0.03
0.03
0.03
0.03
0.03
Chemical
analyze
(%)
Aluminum oxide
43-45
45-46
47-49
35-40
35-40
Alumina + Silica
95-96
96-99
97-99
91-94
81-84
zirconium
-
-
-
5-7
15-17 days
Standard size: (mm)
12.7mmx610mmx14400mm
25mmx610mmx7200mm
38mmx610mmx4800mm
50mmx610mmx3600mm
Note: Other sizes are available upon special request
