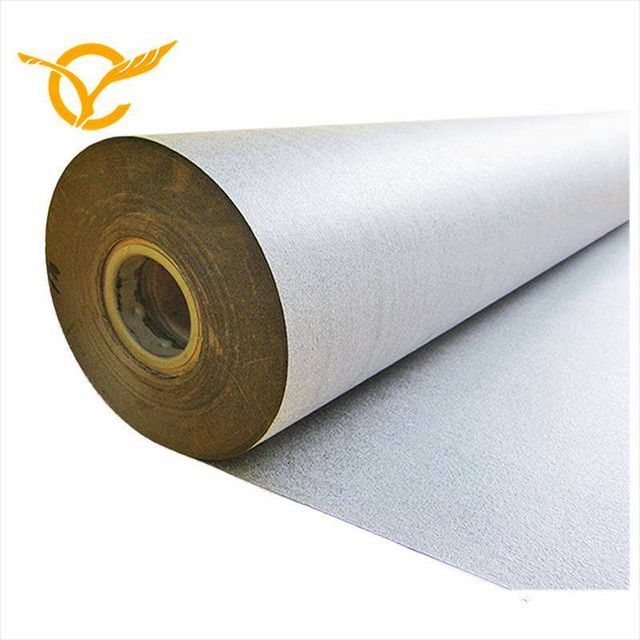

Patented expanded fireproof paper

Product Detail

port:Keelung, TaiwanOrigin:Taiwan, China
Supply capacity:200,000 meters per monthletter of intent:>50
model:FP22819Scalability:35 times
length:100 metrestype:fireproof, smokeproof
payment terms:T/T, Western Union, MoneyGram, PayPalMaterial:Polyester+Carbon
feature:Excellent fire performancePackaging Details:Roll
brand:CVBasic weight:350±20 g/m^2
width:120 cm



Wholesale Fireproof Flexible Intumescent Paper


Wholesale Expanded Paper

flexible expansion paper

single sheet of fireproof paper



-Fire Safety

- High quality and reasonable price

-Made in Taiwan











Product Description

Intumescent sheet





Intumescent panels will provide excellent fire performance.

It can be combined with other materials to become a flame retardant product.







Product Description:



Expansion Sheet is an expandable graphite based flexible expansion sheet designed for

heat insulation.

It is produced from non-woven fabrics containing a certain flame retardant through a hot pressing process.



The thickness of the expanded sheet is about 0.5mm, and it expands to 15mm after heating.

Carbon char will provide excellent fire performance.

High Density Carbon will provide better performance if the expansion plate is installed in a limited space

It plays the role of sealing fire and heat. This material can be used as a fire protection product.







feature:



²  Thin, light and flexible, easy to install

²  low expansion temperature

²  high expansion rate

²  Forms a dense and strong layer of expanded carbon in the event of a fire

²  Halogen-free, asbestos-free, harmless to human body and environment

Specification

feature

Intumescent panels will provide excellent fire performance.

It can be combined with other materials to become a flame retardant product.



Specification:
basic weight 280±14g/square meter350±20g/square meter
width120-126 cm
length1,000 M/roll or customized
thickness0.28±0.05 mm0.36±0.05 mm0.45±0.05 mm
SubstrateCarbon charcoal non-woven fabric
Expansion rate35 times (based on volume)
Limiting Oxygen Index (LOI)> 50
Approximate package sizeDiameter 80 ± 5 cm X 126 cm (length)

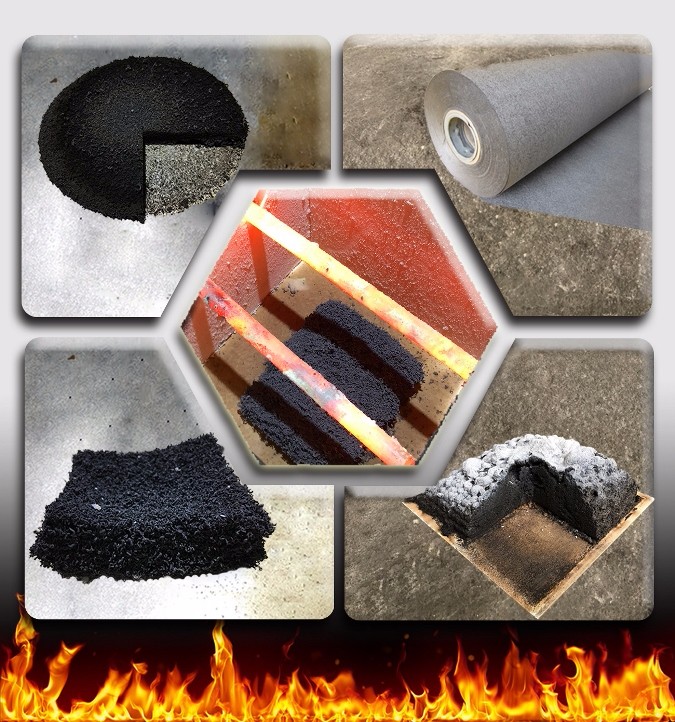

Test chart:
