1260C high temperature ceramic fiber products including ceramic fiber blanket/board/paper

Product Detail

application:Industrial liningPackage preview:
Operating temperature:1260-1430℃Supply capacity:Monthly production of 1,000 tons of ceramic fiber insulation blankets, 1,260 ceramic fiber boards
Features 2 ceramic fiberboard:low thermal conductivitythickness:6-50mm
sample:freeThermal Conductivity:0.055-0.180 (weekly kilometers)
Origin:Henan, Chinachemical composition:SIO2 AL2O3
Packaging of ceramic fiber blanket:carton or woven bagCeramic fiber blanket features 1:Excellent insulation performance
Certificate:ISO9001:2000Shrinkage (1800℉, 3 hours):< -3
Bulk density:64/80/96/128/160kg/m3quality assurance:one year
length:7200mmgrade:Serial port (common)
brand:Litemodel:1260 degrees, 1300 degrees, 1430 degrees
product name:Ceramic Fiber Board, 1260 Ceramic Fiber Boardwidth:610/1220mm
color:pure whitePackaging Details:Packaging of our ceramic fiber insulation blanket: 1. Outer carton, inner plastic bag 2. Woven bag 3. According to customer requirements
Density (kg/m3):128Fiber Diameter:2-3um
port:Qingdao and other major Chinese portsUltimate Strength (≥MPa):0.04
Alumina + Silica:96-99%payment terms:L/C, D/A, D/P, T/T, Western Union, MoneyGram

1260C high temperature ceramic fiber products including ceramic fiber insulation blanket/board/paper

What are the details of our 1260 ceramic fiber insulation blanket?

1. Ceramic fiber insulation blanket is also called acupuncture fiber blanket.

2. It is made of ordinary, standard, high-purity, high-alumina, aluminum-zirconium silicate fiber blocks through blown fiber molding process.

3. It is produced through multiple processes such as acupuncture, thermoforming, vertical and horizontal cutting, and rolling.

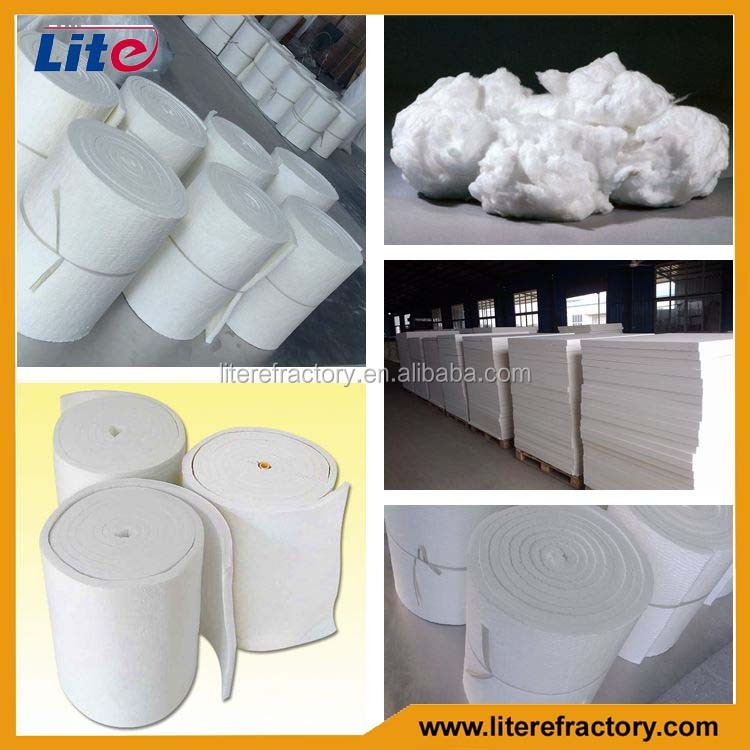

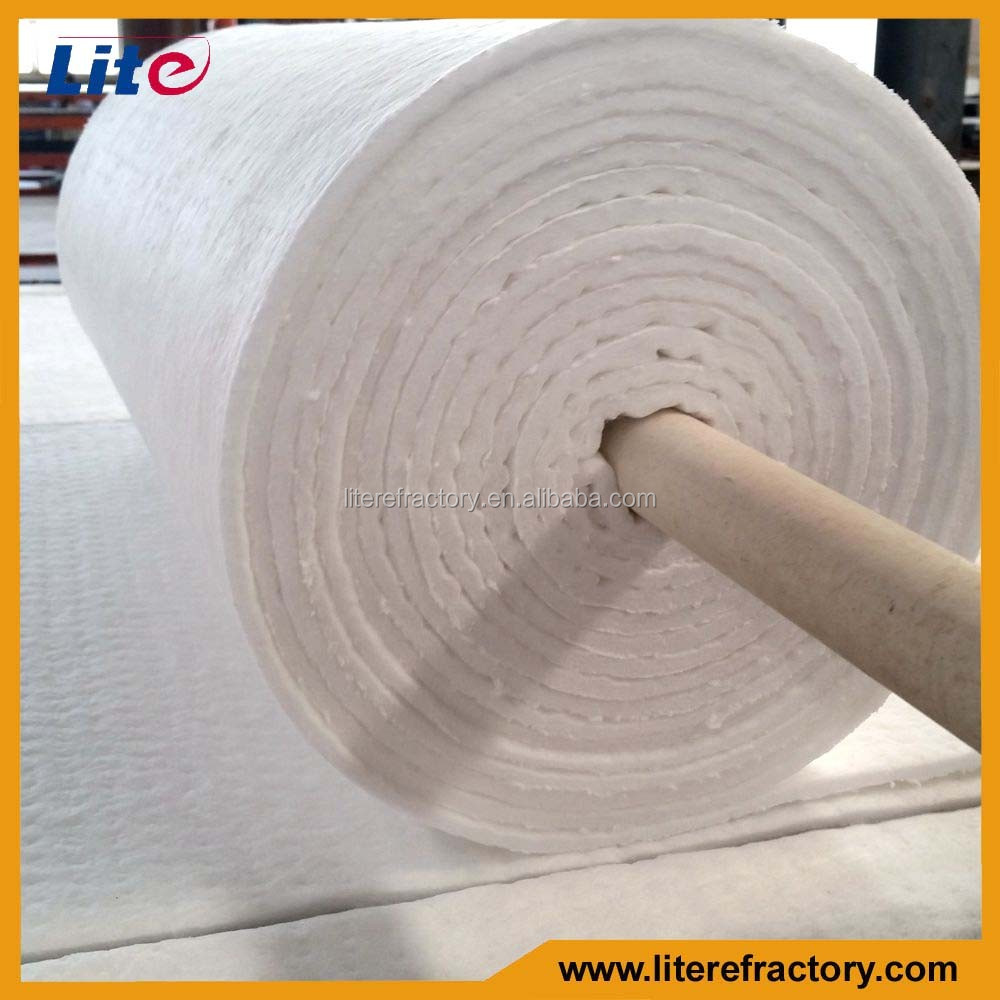

Showcase of our Ceramic Fiber Insulation Blankets:



What is the technical data of our 1260 ceramic fiber insulation blanket?



grade Common standard High purity high aluminum zirconium
Maximum temperature (°C) 1100 1260 1260 1360 1450
Maximum temperature (°C) <1000 1150 1180 1260 1350
color pure white pure white pure white pure white pure white
Density(kg/m3) 96/128/160 96/128/160 96/128/160 /128/160 /128/160

Heat shrinkage (%)

24 hours, the density is 128/m3

-4

(1000℃)

-3

(1000℃)

-3

(1100℃)

-3

(1250°C)

-3

(1350°C)

Thermal conductivity at average temperature.

(w/mk) (density is 128kg/m3)

0.09(400℃)

0.16(800℃)

0.09(400℃)

0.16(800℃)

0.09(400℃)

0.16(800℃)

0.20(1000℃)

0.12(600℃)

0.20(1000℃)

0.16(800℃)

0.20(1000℃)

Tensile strength (mpa) (density 128kg/m3) 0.04



0.04

0.04 0.04 0.04



chemical composition(%)

Aluminum oxide 44 46 47-49 52-55 39-40
Alumina + Silica 96 97 99 99 -
AL2O3+SiO2+ZrO2 - - - - 99
Zirconia - - - - 15-17
Ferric oxide <1.2 <1.0 0.2 0.2 0.2
Na2O+k2O <0.5 <0.5 0.2 0.2 0.2

What are the dimensions of our ceramic fiber insulation blankets?

size 15000*610/1220*10mm 14400*610/1220*12.5mm
7200*610/1220*20mm 7200*610/1220*25mm
5000*610/1220*30mm 4500*610/1220*40mm
3600*610/1220*50mm
pack

1. Outer carton, inner plastic bag

2. Blank woven bag

Comment Size, shape and packaging can be customized





More details on our 1260 Ceramic Fiber Insulation Blanket:



What are the features of our 1260 ceramic fiber insulation blanket?

Excellent insulation properties.

high temperature stability.

low thermal conductivity

Excellent thermal shock resistance

low heat storage capacity



What are the applications of our 1260 ceramic fiber insulation blanket?

1. Lining, heat preservation and repair of furnaces, kilns, ovens and boilers;

2. Insulation for power plants, turbines, thermal reactors, generators and nuclear applications;

3. Expansion joint sealing and heat preservation;

4. Covering and heat preservation of high temperature pipes or metal castings;

5. Fire and heat insulation lining

6. Other high temperature resistant seals, gaskets, insulation or protection.

Packaging and Shipping

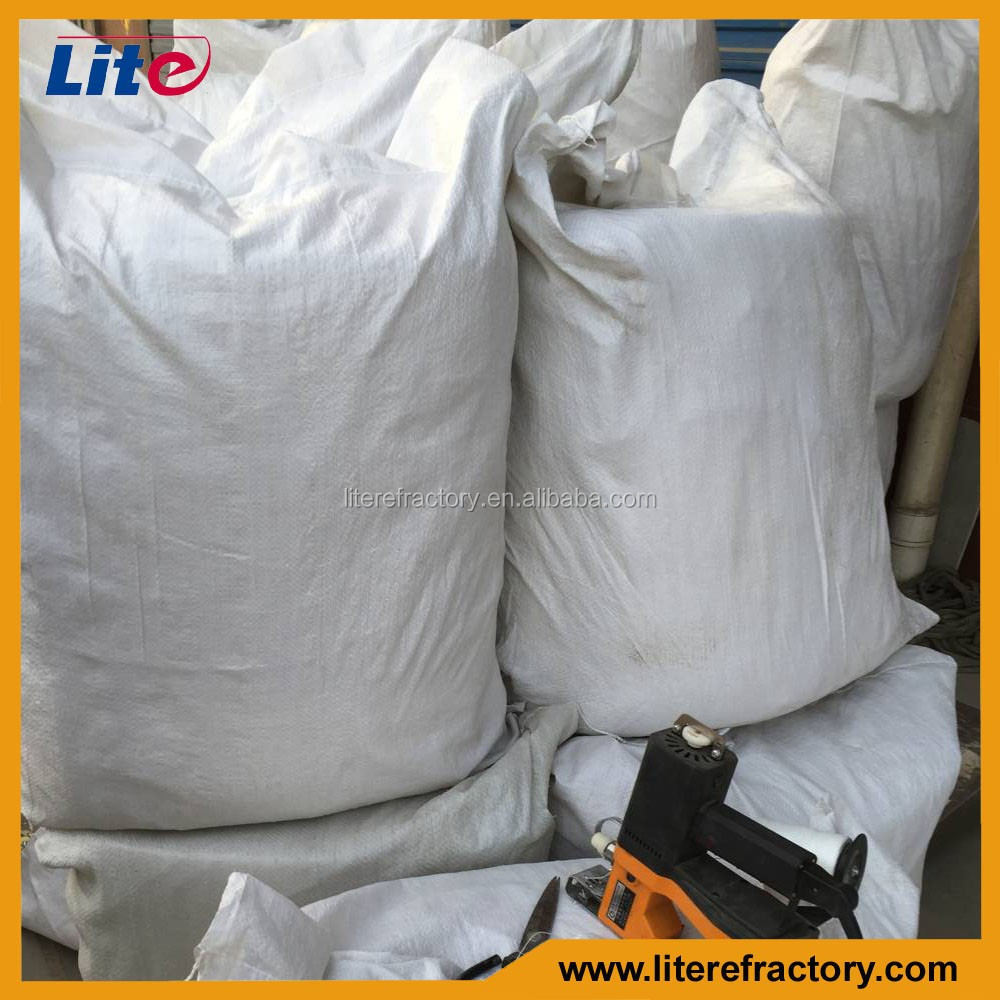

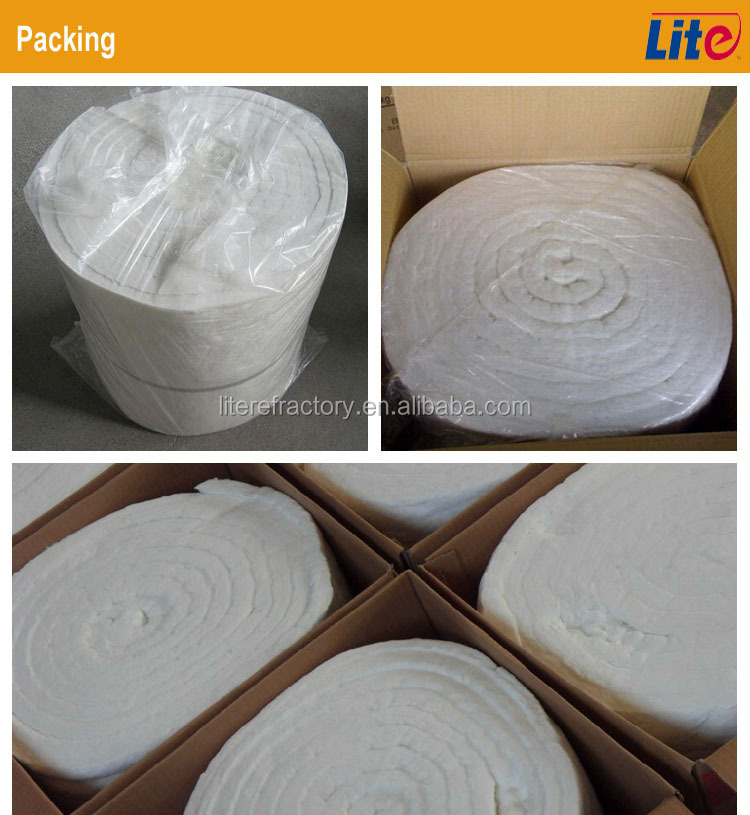

The packaging of our ceramic fiber insulation blanket:

1. Outer carton, inner plastic bag
2. According to customer requirements

3. We will do our best to avoid damage to the goods and ensure the safety of your goods during transportation.







Shipping of our Ceramic Fiber Insulation Blankets:

1. FEDEX/DHL/UPS/TNT for samples.

2. Bulk goods by sea.

3. Delivery time: within 25 days
