128kg/m3 ceramic fiber insulation blanket

Product Detail

grade:HAZ (High Aluminum Zirconium)thickness:20-40mm
port:Tianjin harborThermal Conductivity:0.048
brand:conicalUses of ceramic fiber blankets:Refractory lining
Certificate:ISO9001:2000density:90-128 kg/m3
Packaging Details:Ordinary packing of ceramic fiber: woven bag or cartonchemical composition:95-99%
length:3600mmFeatures:pure white
payment terms:L/C, Western Union, T/Tcolor:white
Advantage:high working temperatureOperating temperature:1260
model:AC001thickness:50mm
pack:carton or bagDensity (kg/m3):128
feature:Excellent tensile strengthOrigin:Hebei china
application:refractoryShrinkage (1800℉, 3 hours):0.04
Package:Woven bagUltimate Strength (≥MPa):0.08-0.12Mpa(128kg/m3)
width:600mmSupply capacity:10000 tons per day 100000000 rolls of ceramic fiber blanket for insulation per month
Fiber Diameter:6
Product Description



Aluminum silicate ceramic fiber blanket

CONING Aluminum Silicate Ceramic Fiber Blankets offer 5 standard grades of spun ceramic fiber blankets, which are completely inorganic and available in various densities, thicknesses, widths and temperature grades, all of which are lightweight and thermally efficient, thereby This gives the material the advantage of low heat storage and complete thermal shock resistance.

Ceramic fiber blankets are used in a variety of heat treating applications and are made from high strength spun ceramic fibers and needle punched to provide excellent handling strength.



Technical parameters of aluminum silicate ceramic fiber blanket

Type (°C)Ordinary ceramic fiber blanketStandard Ceramic Fiber BlanketHigh Purity Ceramic Fiber BlanketHigh alumina ceramic fiber blanketZirconia ceramic fiber blanket
Celsius)950°C1050°C1100°C1200℃1350°C
Operating temperature(Floor 1742)(1922)(2012F)(Floor 2192)(Floor 2462)
density64-160
(kg/cubic meter)
(%)950°Cx24 hours1050°Cx24 hours1100°Cx24 hours1200°Cx24 hours1350°Cx24 hours
heating permanent change≤-3≤-3≤-3≤-3≤-3
 0.150.120.120.120.16
W/(m·k)(128kg/m3)(600°C)(600°C)(600°C)(600°C)(800°C)
Theoretical thermal conductivity0.220.20(0.20.20.2
 (800°C)800°C)(800°C)(800°C)(1000℃)
(MPa)≥0.04≥0.05≥0.05≥0.04≥0.06
(25mm)
tensile strength
(thickness 25mm)
 Al2O3(%)4445-4647-4952-5539-40
chemical industryAl2O3+SiO2(%)≥96≥98≥99≥99-
workZrO2(%)----15-17
 Al2O3+SiO2----≥99
 +ZrO2(%)
 Ferric oxide(%)≤1.0≤0.8≤0.2≤0.2≤0.2
 Na2O+K2O(%)≤0.4≤0.3≤0.2≤0.2≤0.2
 Calcium Oxide + Magnesium Oxide≤0.3≤0.2≤0.2≤0.2≤0.2

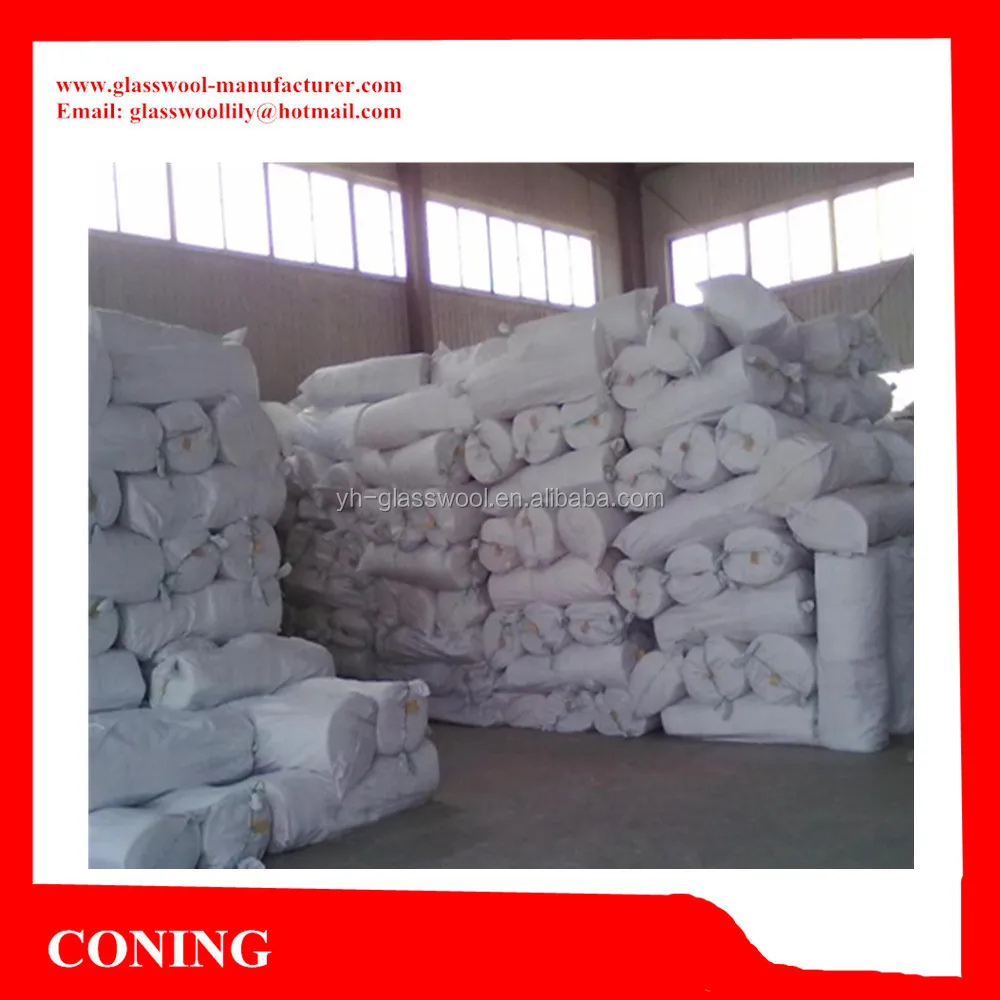

Packaging and Shipping
