2020 glass tube oil cleaner spiral quartz glass tube oil nail water pipe
-
$2.00 / 100 - 999 pieces
$1.80 / >=1000 pieces - 100 pieces
- Qingdao Vatti Glass Co., Ltd.
- Shandong, China
- Mr Simon Xu
Product Detail
| Supply capacity: | 100,000 square meters per month | density: | 2.2 g/cm3 |
| place of origin; place of origin: | China | Material: | 99.99% Pure Quartz |
| Packaging Details: | safety wooden box | length: | 10-2500mm |
| application: | Electric light source, electrical appliances | color: | transparent |
| Surface treatment: | grinding | standard: | ISO9001 |
| pack: | wooden box | Operating temperature: | 1200 degrees Celsius |
| Softening Point: | 1700 degrees | brand: | Vantage |

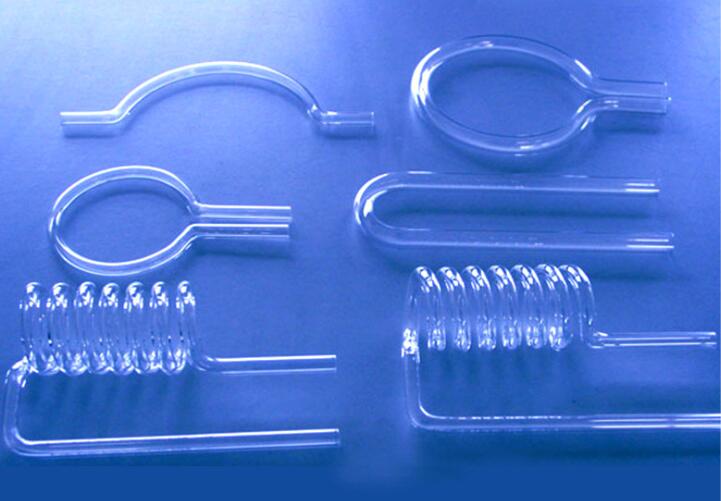

| Processing services: | Bending, welding, punching, decoiling, cutting, forming | feature: | High temperature and high pressure |
| size: | customer request | Outer diameter: | 3mm-300mm |
| shape: | Quartz tube closed at one end | product name: | Quartz glass sleeve |
| payment terms: | L/C, T/T, Western Union, MoneyGram | Package preview: | |
| model: | Quartz glass tube | Ozone content: | Ozone free |
| port: | Qingdao | Types of: | Clear Quartz Tube |

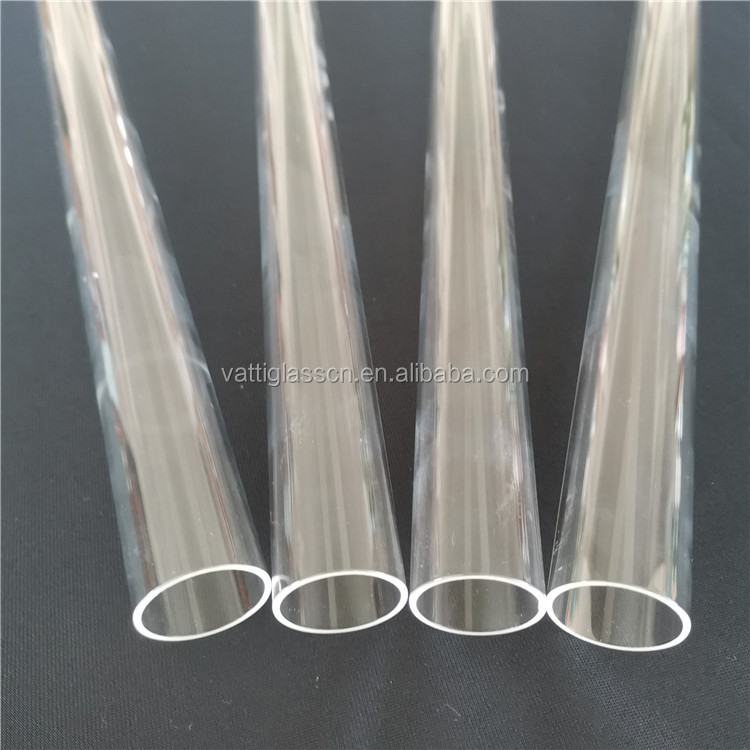

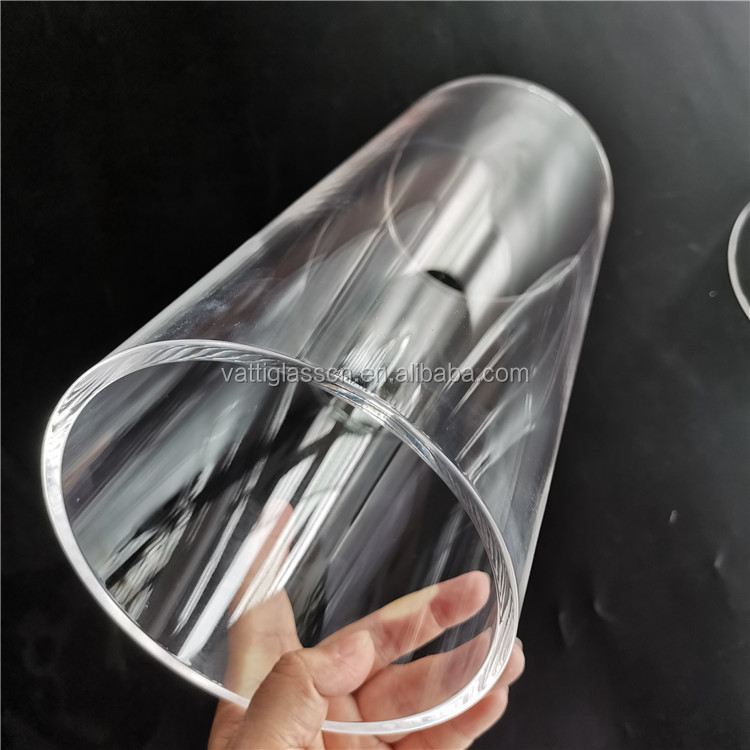

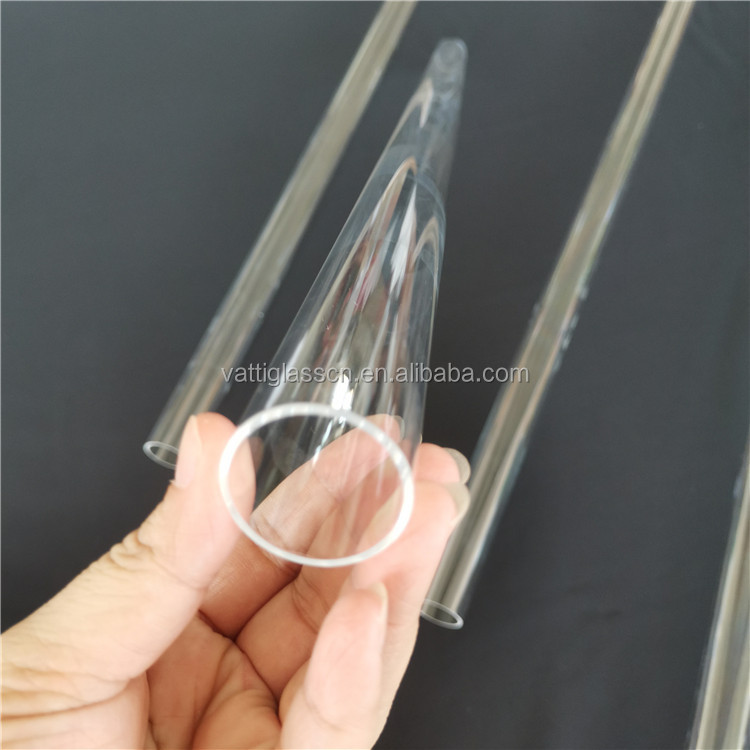

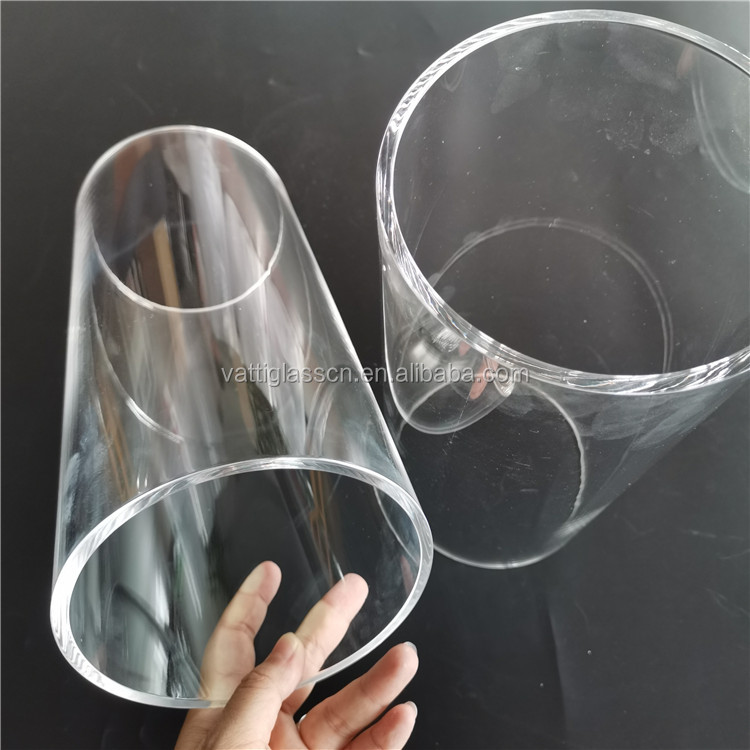

Qingdao factory direct sales of large diameter quartz glass tube
Product Description
The formation of quartz glass is a result of the high viscosity of the melt. It is used in the manufacture of semiconductors, electric light sources, semiconductor communication devices, lasers, optical instruments, laboratory instruments, electrical equipment, medical equipment and high temperature and corrosion resistant chemical instruments, chemical industry, electronics, metallurgy, building materials and national defense industries. widely.
High-purity quartz glass can be used to make optical fibers. With the development of semiconductor technology, quartz glass is widely used in various processes of semiconductor production. For example, the Czochralski method converts polycrystalline silicon into single crystal silicon; cleaning tanks for cleaning; diffusion tubes and tank boats for diffusion; bell jars for ion implantation, etc.
characteristic:High-purity quartz glass can be used to make optical fibers. With the development of semiconductor technology, quartz glass is widely used in various processes of semiconductor production. For example, the Czochralski method converts polycrystalline silicon into single crystal silicon; cleaning tanks for cleaning; diffusion tubes and tank boats for diffusion; bell jars for ion implantation, etc.
1. SiO2>99.99%, high-purity quartz tube
2. Working temperature: 1250℃
Softening temperature: 1730°C
3. Excellent visual and chemical properties.
4. No surface coating
5. Health care and environmental protection
6. Any size can be made.
7. CE RoHs SGS certification.
Specification
hardness | 5.5-6.5 Mohs hardness 570 KHN 100 |
design tensile strength | 4.8x107 Pa (N/mm2) (7000psi) |
Design compressive strength | >1.1x109 Pa (160,000 psi) |
bulk modulus | 3.7x1010 Pa (5.3x106psi) |
modulus of rigidity | 3.1x1010 Pa (4.5x106psi) |
Young's modulus | 7.2x10-10 Pa (10.5x106 psi) |
Poisson's ratio | 0.17 |
Thermal expansion coefficient | 5.5x10-7 cm/cm. °C (20°C-30°C) |
Thermal Conductivity | 1.4 W/m. Celsius |
specific heat | 670 J/kg. Celsius |
Softening Point | 1683°C |
Annealing point | 1215°C |
strain point | 1120°C |
Electroacceptance | 7x107 ohm.cm (350°C) |
speed of sound | 3.75x103 m/s |
Sonic/compression wave | 5.9x103 m/s |
Acoustic attenuation | <11dB/m MHz |
Chemical stability (except hydrofluoric acid) | High water and acid resistance |
Dielectric Properties (20°C and 1MHZ) continuous strength Loss factor Dissipation factor | 3.75 5x107 V/M less than 4x10-4 less than 1x10-4 |
application
1. High temperature resistant glass can work continuously below 1200°C, and even work below 1450°C in a short period of time, and its softening point is 1730°C.
2. Quartz glass does not react chemically with acids other than hydrofluoric acid. The acid stability is 30 times that of ceramics and 150 times that of stainless steel. Especially the chemical stability at low temperature is unmatched.
3. Electrical insulation.
4. Excellent thermal shock stability

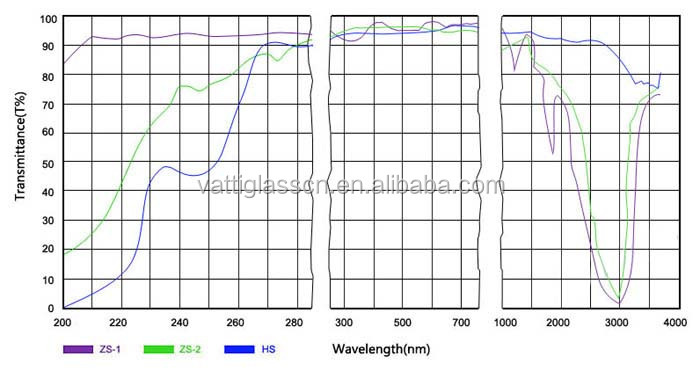

5. Light transmittance above 85%
6. Widely used in semiconductor, lighting, electric heating industries.
2. Quartz glass does not react chemically with acids other than hydrofluoric acid. The acid stability is 30 times that of ceramics and 150 times that of stainless steel. Especially the chemical stability at low temperature is unmatched.
3. Electrical insulation.
4. Excellent thermal shock stability
5. Light transmittance above 85%
6. Widely used in semiconductor, lighting, electric heating industries.
