JDS transparent quartz tubes and sapphire glass tubes for semiconductor and solar energy

Product Detail

Surface Quality:60/40 , 40-20 or betterdensity:2.2 g/cm3
Surface treatment:polishingdiameter:0.5-500mm
model:JDS-QTSoftening Point:1680
payment terms:L/C, D/A, D/P, T/T, Western Union, MoneyGram, Paypal or as requiredbrand:Jedes
shape:Quartz tube closed at one endSupply capacity:100,000 pieces of sapphire quartz glass per week
Packaging Details:Sapphire quartz glass: single product --------------with private label or upon request Inner packing --------------Outside of special packaging for optical optics Packaging --------------- Three-layer corrugated box, wooden box or according to requirements Shipping method --------------- Air freight: UPS, DHL , Fedex, TNT, EMS, SF etc. or by seaOperating temperature:1100 degrees Celsius
Ozone content:Ozone freelength:100mm-2500mm
Origin:Jilin Province, Chinasize:custom size
color:as requestedAnnealing point:1215 degrees Celsius
Delivery Details:Stock: 1-3 days Customized: 7-35 daysWall thickness:custom made
port:Shanghai or upon requestOuter diameter:0.5-350 mm
application:Chemical industry, heat supply, electric light sourcetype:Clear Quartz Tube
product name:light pipe

JDS transparent quartz tubes and sapphire glass tubes for semiconductor and solar energy

Specification
density
2.2×103kg/m3
Dielectric properties
(20°C and 1MHz)
hardness
5.5 - 6.5 Mohs hardness 570 KHN 100
continuous
3.75
design tensile strength
4.8×107Pa (N/m2) (7000 psi)
strength
5×107V/m
Design compressive strength
Greater than 1.1 x l09Pa (160,000 psi)
Loss factor
less than 4x10-4
bulk modulus
3.7×1010Pa (5.3x106 psi)
Dissipation factor
less than 1x10-4
modulus of rigidity
3.1×1010Pa (4.5x106 psi)
Refractive index
1.4585
Young's modulus
72GPa (10.5x106pounds per square inch)
Constraint (Nu)
67.56
Poisson's ratio
0.17
Sound velocity - shear wave
3.75x103multiple sclerosis
Thermal expansion coefficient
5.5×10-7cm/cm·°C (20°C-320°C)
Sonic/compression wave
5.90X103multiple sclerosis
Thermal Conductivity
1.4W/m·℃
Acoustic attenuation
Less than 11 db/m MHz
specific heat
670J/kg·℃
Permeability constant (700°C)
(cm3 mm/cm2 sec cmHg)
Softening Point
1683°C
helium
210x10-10
Annealing point
1215°C
hydrogen
21×10-10
strain point
1120°C
deuterium
17×10-10
Resistivity
7x107Ohm cm (350°C)
neon
9.5×10-10
parameter/value
JGS1
JGS2
JGS3
biggest size
<φ200mm
<φ300mm
<φ200mm
transmission range
(medium transmission ratio)
0.17~2.10um (average>90%)
0.26~2.10um (average>85%)
0.185~3.52um (Tavg-85%)
OH-content
1200ppm
150ppm
5ppm
Fluorescence (ex254nm)
almost free
Strong VB
Strong VB
Impurity content
5ppm
20-40ppm
40-50ppm
birefringence constant
2-4 nm/cm
4-6 nm/cm
4-10nm/cm
melting method
Synthetic CVD
Oxygen fusion
Electrofusion
Application field
Laser substrates: windows, lenses, prisms, mirrors
Semiconductor and High Temperature Window
infrared and ultraviolet



Product Category



Applications





Optical Tube⇒

 Commonly used in electric light source, semiconductor, optical communication, military industry, chemical industry, construction, machinery, environmental protection and other fields

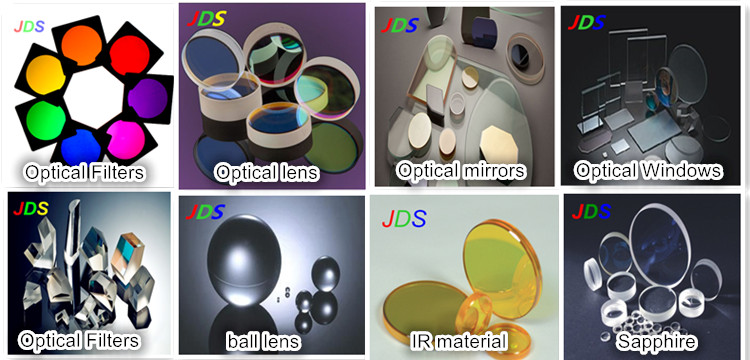

We offer various substrates such as sapphire, quartz, germanium (Ge), silicon (Si), N-BK7, UV fused silica, zinc selenide (ZnSe) or potassium bromide (KBr). Wide choice of anti-reflective coatings for ultraviolet (UV), visible light or infrared (IR)



JDS® Optics and Lasers ⇒



A wide variety of sapphire optics are available for various applications, including ball lenses, spherical lenses or windows. Sapphire ball lenses have a high refractive index and are ideal for minimizing the distance between the fiber output and the lens. Sapphire hemispherical lenses simplify installation or system integration. A ruby-doped sapphire ball lens is also available for easy handling.

JDS® Optics and Lasers ⇒



Optical products of various shapes, sizes and precisions can be customized. Including spherical lens, aspheric lens, achromatic lens and provide coating. It is available in UV, visible or infrared wavelengths.



We trust JDS® to serve you best.





OEM service



If you need to develop custom optics, we can help!

  • Our team can evaluate your design tolerances and performance
  • We make your design more feasible and affordable
  • Create 3D models and drawings
  • All drawings are ISO compliant
  • Optical Component Purchasing Assistant
  • We can design your optics today!

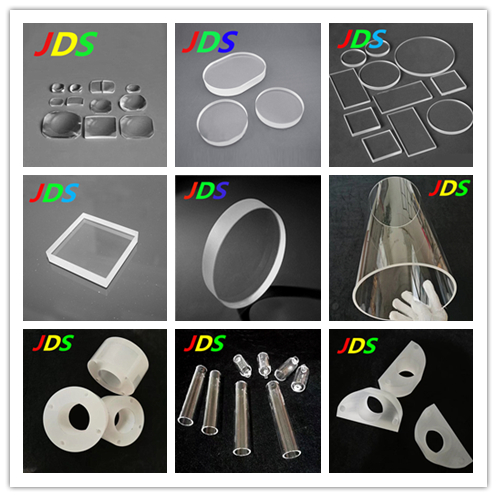

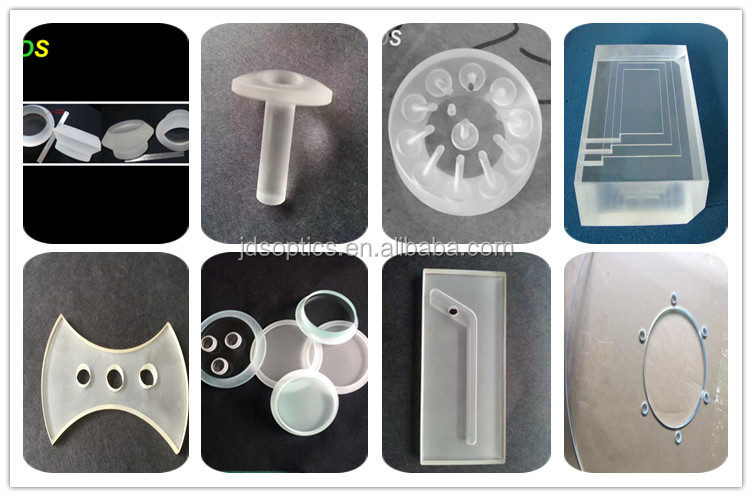

other products

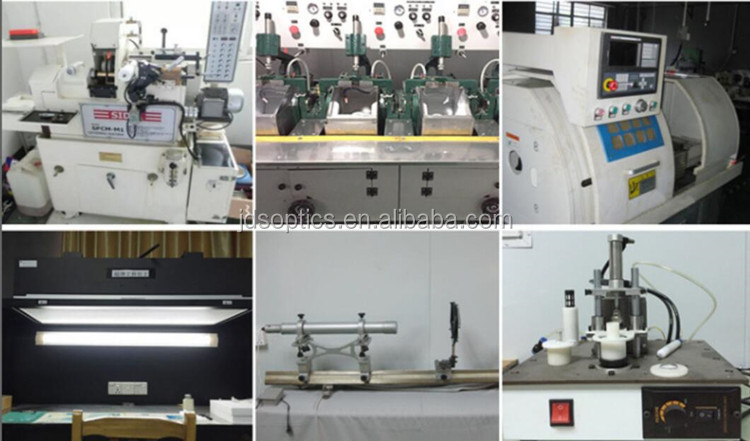

QC



Packaging and Shipping





Packagesingle product→ private label or on request
inner packaging→ Special packaging for optical and laser components
outer packaging→ Three-layer corrugated box, wooden box or as required
shippingair transport→ UPS, DHL, Fedex, TNT, EMS, SF, etc.
by sea
