QUARTZ PIECES WITH KOSOVO

Product Detail

type:Clear Quartz TubeSurface treatment:polishing
brand:Contact Quartzpayment terms:L/C, Western Union, D/P, D/A, T/T, MoneyGram, PayPal
Outer diameter:3mm-350mmdensity:2.2 g/cm3
length:10-3000mmOrigin:Jiangsu, China
size:custom madePackaging Details:Standard export packing Inner packing: bubble paper Outer packing: hard corrugated carton or wooden case or transparent UVC large diameter quartz heating element according to your requirements
Operating temperature:1100°Cmodel:LQ002
brand:Contact Quartzproduct name:Custom Quartz Parts
Wall thickness:0.5-6.0mmcolor:to clear
shape:Type Capplication:laboratory instrument
Ozone content:Ozone freeport:Shanghai
Supply capacity:10,000 pieces of quartz glass tubes for UV lamps per weekpack:wooden box
purity:99.9%Material:silica

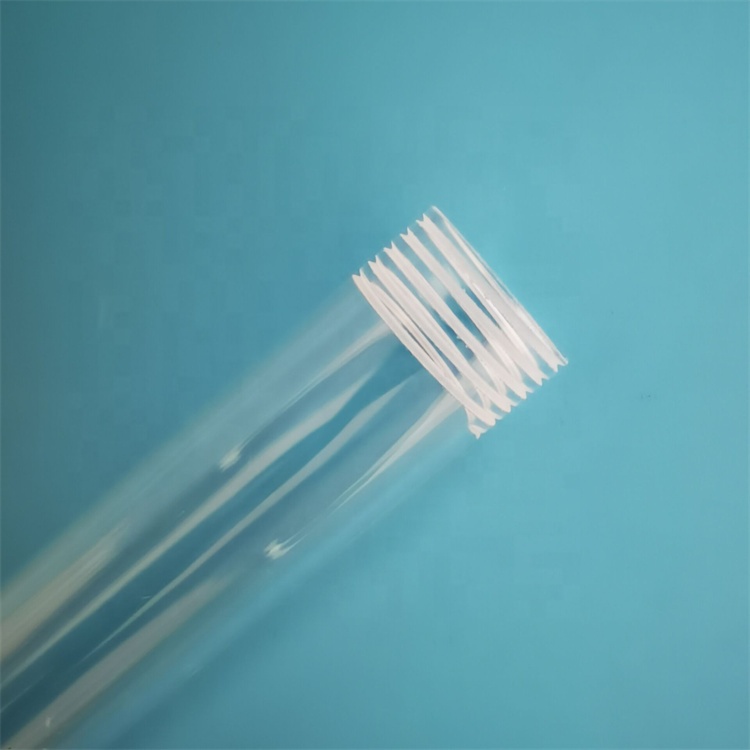

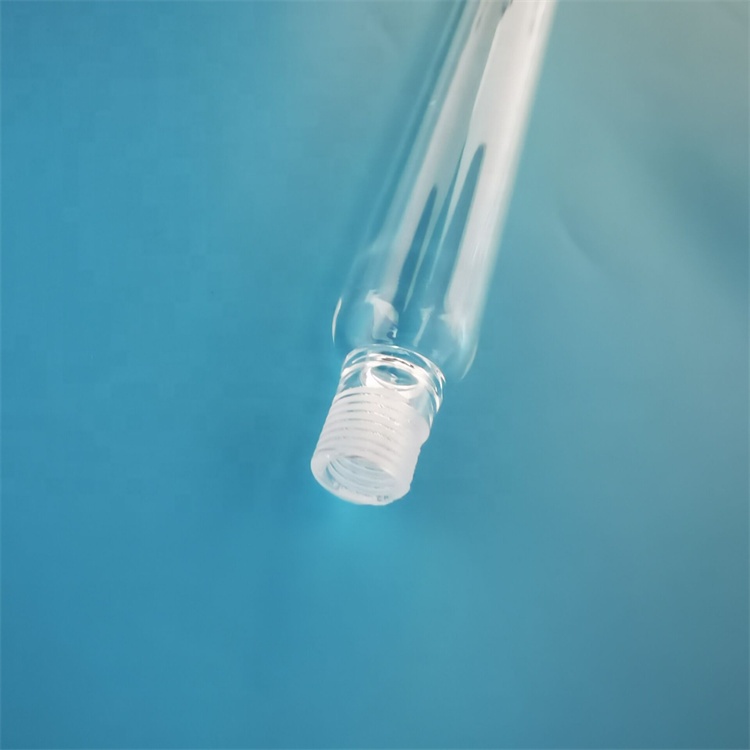

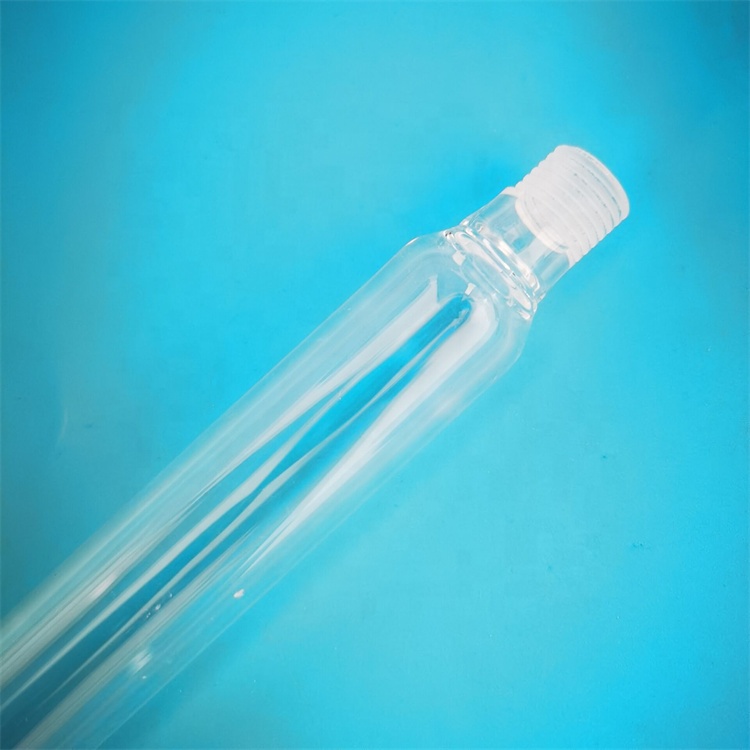

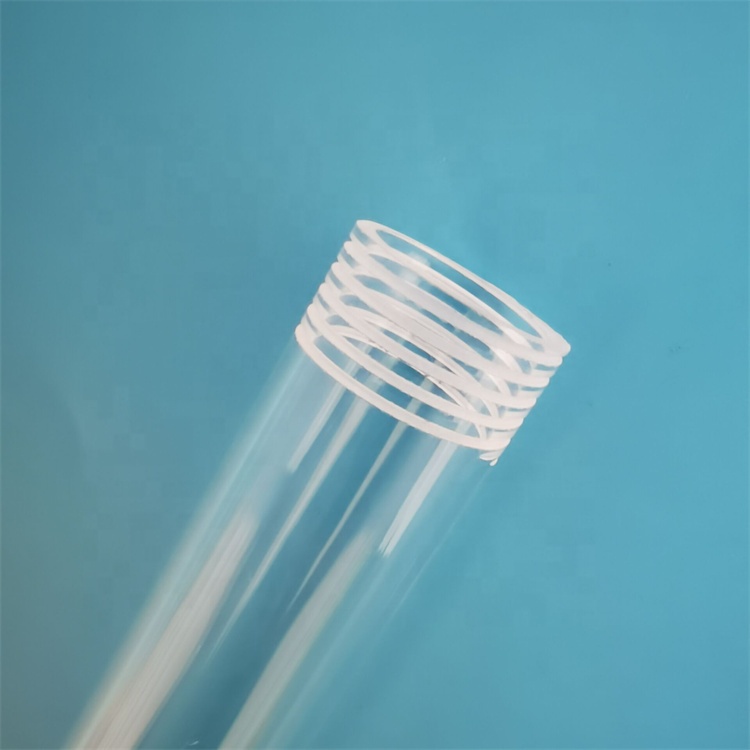

Threaded Quartz Tube Manufacturing Threaded Clear Quartz Glass Tube Custom Quartz Glass

Product Description







physical properties



Silica:

99.99%

density:

2.2 (g/cubic centimeter)

mosh' hardness level:

6.6

Expansion coefficient 25--300°C°C-1 (×10-6)

0.58

Melting point:

1732°C

Operating temperature:

Below 1100℃

The highest temperature that can be reached in a short time:

1450°C

Acid resistance:

30 times that of ceramics and 150 times that of stainless steel

Visible light transmittance:

More than 93%

Transmittance in the ultraviolet spectral region:

80%

resistance:

10,000 times that of ordinary glass

Annealing point:

1180°C

Softening Point:

1630°C

Strain point:

1100°C

Dimensional Tolerance(mm)



specify

outer diameter

WT

maximum. siding

maximum. Ellipticity

maximum. bow

1-3mm

±0.05

±0.05

0.05

0.05

1‰

3-10mm

±0.1

±0.1

0.1

0.15

2‰

10-20mm

±0.2

±0.1

0.1

0.2

2‰

20-30 days

±0.2

±0.15

0.15

0.2

2‰

30-40

±0.4

±0.15

0.2

0.2

2‰

40-50

±0.5

±0.2

0.25

0.25

2‰

50-65

±0.6

±0.2

0.35

0.25

2.5‰

65-85

±0.8

±0.3

0.45

0.3

2.5‰

85-100

±1

±0.3

0.5

0.5

2.5‰

100-150

±1.5

±0.4

0.5

0.8

3‰

150-200

±2

±0.6

0.6

1

4‰

200-300

±3

±0.8

0.7

2

5‰



Spectral transmittance at 1.0mm thickness

Nano

220

255

280

315

350

380

590

780

%

89

91

93

93

93

93

93.2

93.4



Chemical composition, unit: PPM

potassium + sodium

calcium

iron

aluminum

magnesium

titanium

-bar

plum

copper

<10

<3

<1.5

<20

<1.0

<3.0

<0.2

<1.0

<0.5



Uses of Standard Clear Quartz Tubes:Halogen lamps, mercury lamps, single-ended lamps, automotive lamps, stage lamps, thermoelectric boilers, copier lamps, water treatment lamp housings, quartz vessels and pipes.


Applications of UV Quartz Tubes:Single-ended metal halide lamps, automotive metal halide lamps, G12 metal halide lamps, explosion-proof metal halide lamps, high-power stage lights, etc.


Application of free ozone quartz tube:Germicidal ozone lamps, materials used in hospitals, homes, and public places for ultraviolet sterilization and water treatment.



Uses of Quartz Rods:Linear light source products, light guide rods, light pipes, fiber optic lighting, quartz fiber manufacturing, semiconductor silicon wafers, hollow semicircles.


Application of coated quartz heating tube:Tankless water heaters, alkaline water purifiers, electric heaters, oven heating, aquarium heaters, screen printing, drying, sealing, food insulation, plastic molding, lamination.



Applications of quartz plates:Military-industrial complexes, machinery, metallurgy, printing and dyeing, optical instruments, high-temperature sight glass, fire hole industry and other high-temperature industries, electric light source equipment, laboratory instruments, chemical instruments.

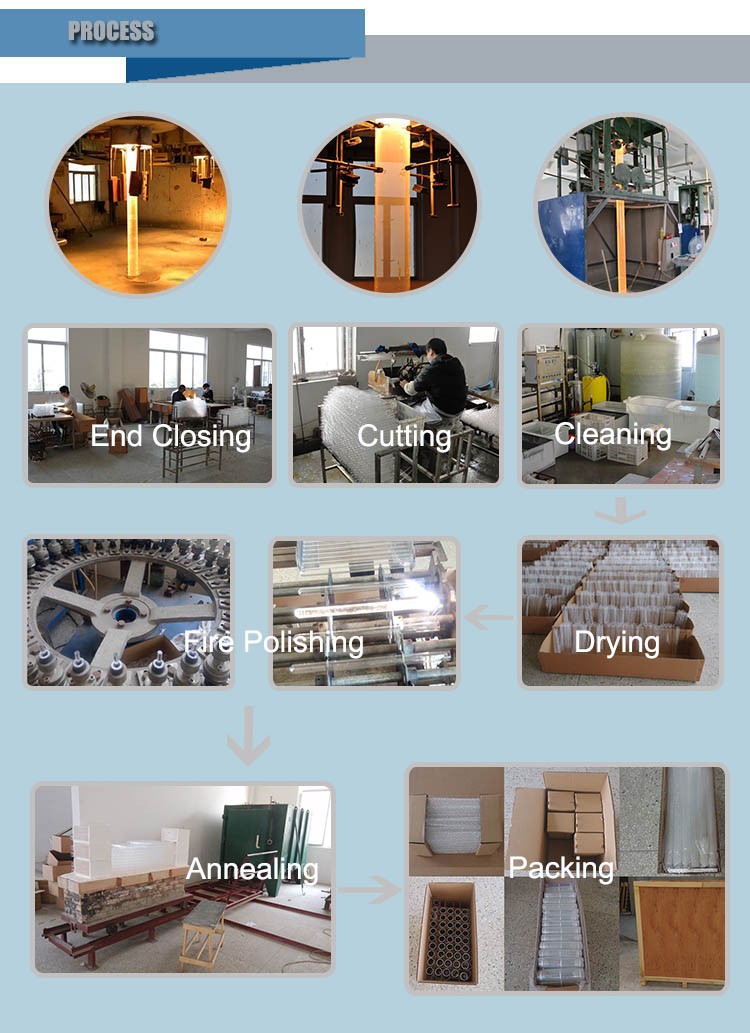

Production Process





The general process of quartz tube: sealing - cutting - fire polishing - cleaning - drying - annealing - cooling - inspection - packaging
