AFS40-45 Chromite Ore Chromium 45%

Product Detail

Bulk density:2.5-3 g/cm3size:AFS25-35~AFS60-65
Origin:South AfricaSupply capacity:1000 metric tons per month
PH value:7-9model:AFS25-35~AFS60-65
Melting point:>1800℃product name:AFS40-45 Chromite Ore Chromium 45%
delivery time:3-10 dayschemical composition:Chromium trioxide
Packaging Details:1.25kg woven bag, 40pcs woven bag/jumbo bag 2.25kg woven bag, 40pcs woven bag/tray 3.25kg paper bag, 40pcs paper bag/pallet 4.25kg paper bag, 40pcs paper bag/carton 5. Customized packingPackage preview:
payment terms:L/C, Western Union, D/P, D/A, T/T, MoneyGramMoisture (%):0
Certificate:ISO9001:2008hardness:Mohs 5.5-6
application:castingport:Tianjin, Qingdao, Shanghai, Yiwu, Guangzhou, Lianyungang
Cr2O3 (minimum):46%type:fine
To focus or not to focus:non-concentratedbrand:Haixu Abrasives
color:bright blackAdvantage:Alkali resistance

Product Description:

AFS40-45 Chromite Ore Chromium 45%

Chromite sand is a special sand for foundry. It is a natural spinel dominated by chromite. After crushing, grinding and screening, it is divided into specified particle size, which is suitable for molding (core making) sand. Chromium ore can be divided into two grades according to chemical composition, first-grade Cr2O3 (>45%) and second-grade Cr2O3 (>35%).



feature:



1. Heating volume stability

2. High thermal conductivity

3. Strong alkali resistance

4. Solid phase sintering, non-sticky sand



Advantages of chromite sand

Compared with silica sand, chromite sand can avoid most castings sticking sand, so it can also save the cost of surface treatment. Furthermore, chromite can be recycled many times through different techniques.

Generally speaking, among the chromite ores in the world, the quality of chromite in South Africa is the best. Therefore, Haixu Abrasives imports raw chromite ore from there and refines it to a better purity of 46% Cr2O3.



Technical data sheet:

chemical composition
Chromium trioxide ≥46.0%
silica ≤1.0%
Ferrous oxide ≤26.5%
Calcium Oxide ≤0.3%
magnesium oxide ≤10%
Aluminum oxide ≤15.5%
phosphorus ≤0.003%
S ≤0.003%
Chromium/Fe 1.55:1
Typical Physical Properties
hardness: Mohs: 5.5-6
Melting point: Sublimation at 2180℃
Sintering point: >1800℃
Sintered 1600℃
proportion: 4.0-4.8 g/cm3
Bulk density (LPD): 2.5-3 g/cm3
color: Black
PH value 7-9
Percentage of free acid in sand 0%
amount of acid ≤2ML
soil percentage ≤0.1
Moisture percentage ≤0.1
optional size
AFS25-35, AFS25-30, AFS30-35, AFS35-40, AFS40-45, AFS45-50, AFS40-50, AFS50-55, AFS55-60, AFS60-65


application:

1. Chromite sand in foundry industry

l Its properties make the material useful as core and foundry sand in high strength gray iron and steel foundries.

l High thermal conductivity makes it have good cooling performance, and low thermal expansion makes it have good dimensional stability.

l The alkalinity is close to neutral, a variety of resin binder systems and inorganic binders can be used, with high refractoriness and wide sieving distribution.

Chromite sand is suitable for steel castings, including foundries, such as:
wet sand molding;
shell molding;
Pep-Set system;
Furan resin and basic phenolic resin;
core molding
Lost Foam Casting

How does a foundry choose a grain size?
Generally speaking, the smaller the casting that needs to be made, the finer the grain size that the foundry will use. The frame below shows it for reference:



Less than 500KGS



500-1000kg

1-10 tons

10-30 tons

30-100 tons

AFS40-70

AFS 45-50

AFS 45-50

AFS40-45

AFS 35-40

2. Chromite sand in steel industry 20-70#

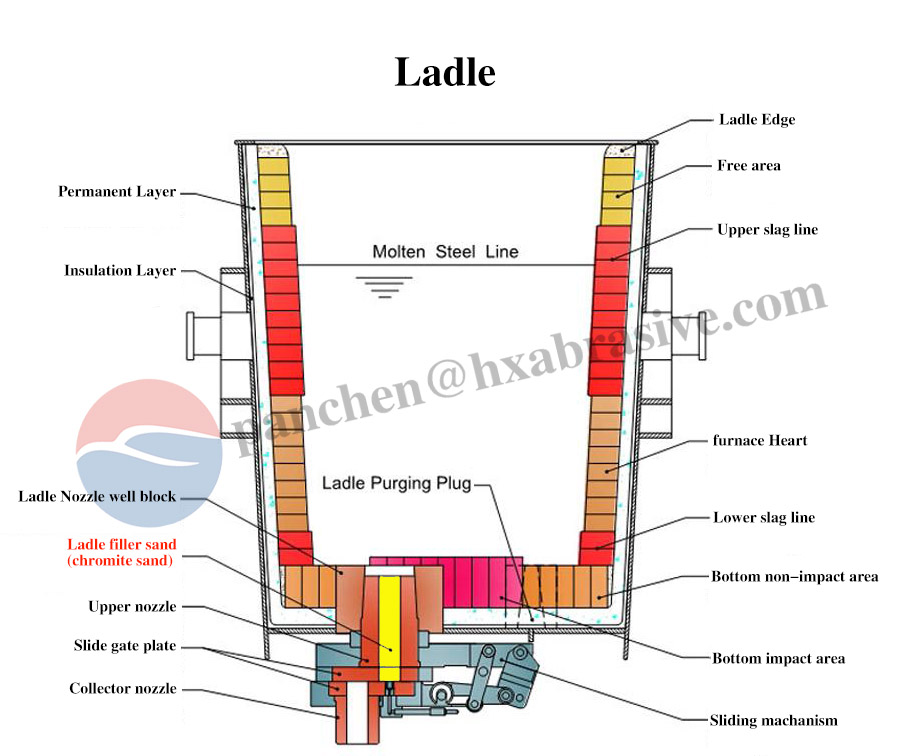

l In steel production, chromite sand is also used as filler to protect the sliding nozzle of large ladles.

Chromium drainage sand is made from chromite sand and additives. It has the advantages of high specific gravity, good fluidity, high melting point, and no excessive sintering. In chromium drainage sand, when the addition of chromite is greater than 60%, the chromite is continuously distributed, and this distribution is conducive to the formation of a continuous sintered layer. At high temperature, FeO in chromite reacts to desolvate, forming secondary spinel, which causes the volume change of the sintered layer and produces cracks. In this way, when the slide plate is opened, the unsintered drainage sand under the nozzle will flow out rapidly, and the cracks in the sintered layer will expand rapidly, and the sintered layer will be completely destroyed under the action of hydrostatic pressure. , so as to achieve the purpose of automatic pouring. Most large steel mills use chromium drainage sand, which accounts for about 30% of the entire ladle drainage sand, especially the refining ladle drainage sand.

3. Chromite sand in the glass industry

l When ground into a fine powder, chromite sand can be used as a colorant in the production of green glass beverage containers.









1. We are a manufacturer, it is easier to control the cost than a trading company, and we can reply you faster.
2. As a manufacturer, we understand a lot of technology and can provide you with more support on technical issues.
3. Professional and experienced service team, specialized in abrasive production for more than 10 years.
4. Our products have complete specifications and various sizes.
5. We enjoy a good reputation among customers in domestic and foreign markets.
6. Large production capacity and short delivery time.
7. 7*24 hours online service.AFS25-30 South African chrome ore AFS25-30 South African chrome ore AFS25-30 South African chrome ore AFS25-30 South African chrome ore AFS25-30 South African chrome ore AFS25-30 South African chrome ore AFS25-30 South African chrome ore AFS25-30 South African chrome ore AFS25-30 South African chrome ore
