Industrial Boiler Thermal Shock Insulation Refractory Block Thick Plate Lightweight Plate

Product Detail

CrO content (%):0Fire load (RUL):1100°C
product name:vermiculite blockshape:jam
CaO content (%):1.5-3%feature:Thermal shock resistance
size:custom madeMaterial:Vermiculite
Supply capacity:100000 pieces per monthBulk density:900 kg/m3
Al2O3 content (%):13-16%port:Tianjin harbor
Silica content (%):45-48%sample:usable
color:sandapplication:industrial boiler
Processing services:punching, cutting, formingSilicon carbide content (%):0
payment terms:L/C, D/P, T/Tbrand:blue wind
model:V-1200MgO content (%):14-20%
Packaging Details:Carton packaging and pallet loading;Cold Compression Strength:6 MPa
raw material:Expanded VermiculitePackage preview:
Origin:Hebei chinaRefractoriness (degrees):Ordinary (1580°
Description of Vermiculite Board
feature
heat resistanceup to 1200C
Thermal Conductivity0.18 W/m²
density900 kg/m3
shape: Molded products

Features of condensing gas boiler
no damage
preservative
long lasting
low dimensional tolerance
low cost
no pollutants
high strength
Fire insulation performance
light
Molded parts

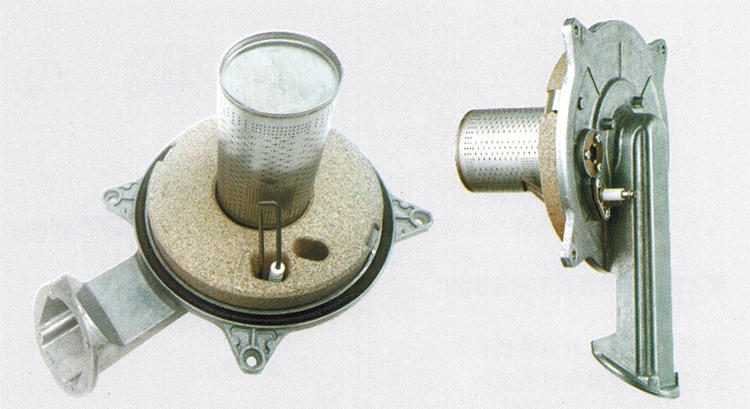

thermal battery
The heat chamber is the heart part of the condensing boiler, which determines the service life of the condensing boiler.
The 1200℃ vermiculite board can withstand extremely rapid drying and water immersion environments; it has better performance than traditional ceramic fiber boards.

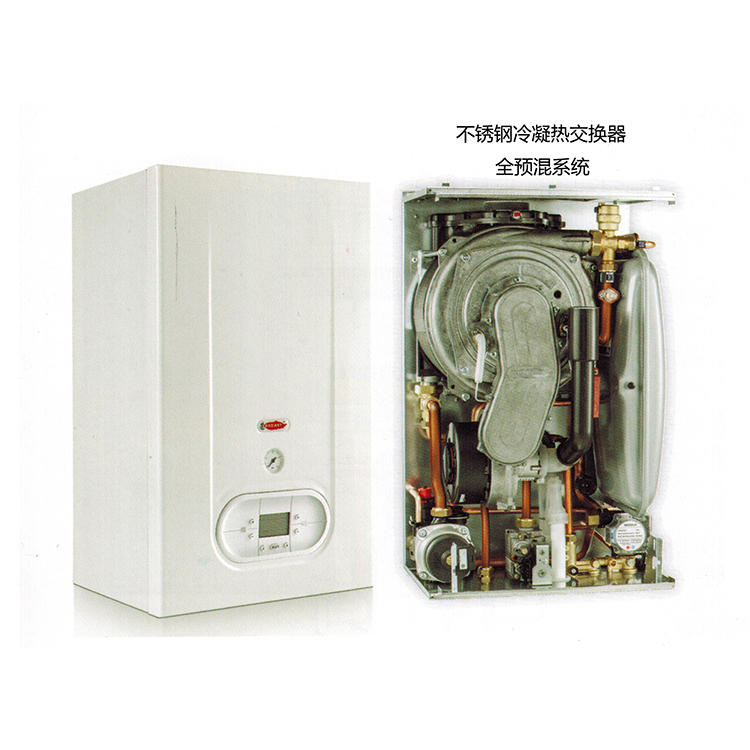

condensing boiler
The ideal service life of a condensing boiler is about 12-15 years, and the heat battery at the heart determines whether it can achieve the ideal life. The use of high-quality vermiculite board can reduce the number of hot core replacements and reduce the worries of users.

The vermiculite board uses expanded silver vermiculite of 0.3-1mm as the raw material, is bonded with an inorganic mixture, pressed under high pressure, and dried for several hours to make a fireproof insulation board with good strength.
For use under harsh conditions, vermiculite boards have excellent mechanical strength, good resistance to thermal spalling, and are highly resistant to chemical attack by volatile alkalis and some slags.
detailed drawing
Product parameters
physical parameters
Density (kg/m3)
700
800
900
maximum temperature
1150°C
1150°C
1150°C
strength
4.5/2.0 MPa
5.5/2.1 MPa
6.2/2.2MPa
linear shrinkage
1%
1%
1%
Heat Conduction.



@200℃
0.14 W/m²
0.16 W/m²
0.18 W/m²
@ 400°C
0.16W/square meter
0.18 W/m²
0.2 W/m²
@600℃
0.18 W/m²
0.2 W/m²
0.22 W/m²
chemical parameter
silica
43-46%
43-46%
45-48%
Aluminum oxide
10-13%
10-13%
13-16%
Ferric oxide
4-6%
4-6%
4-6%
Titanium dioxide
1-2%
1-2%
1-2%
magnesium oxide
16-23%
16-23%
14-20%
potassium oxide
7-10%
7-10%
5-8%
Na2O
1-2%
1-2%
1-2%
LOI @ 1000C
4-6%
4-6%
3-5%
Standard Sizes and Thicknesses
1005*615mm
10-60 mm thickness
10-60 mm thickness
10-60 mm thickness
1225*615 mm
10-60 mm thickness
10-60 mm thickness
10-60 mm thickness
Data are average results of tests performed under standard procedures and are subject to change.
production process
urgent

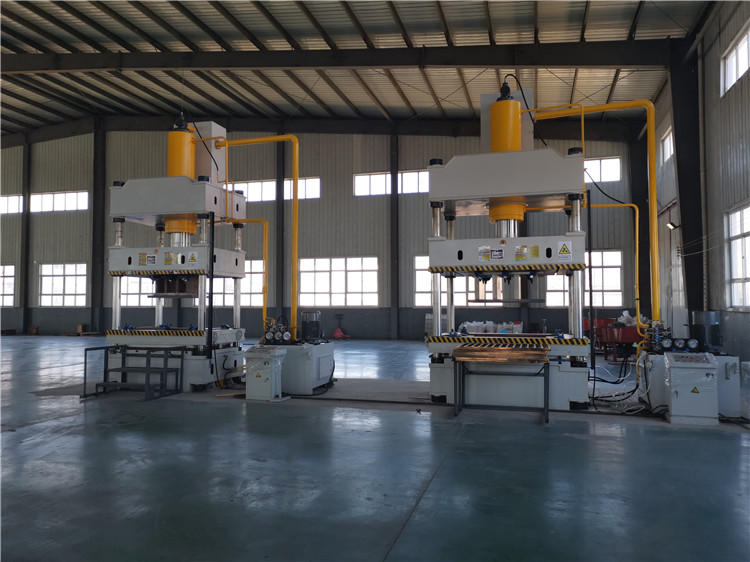

High pressure molded to desired shape

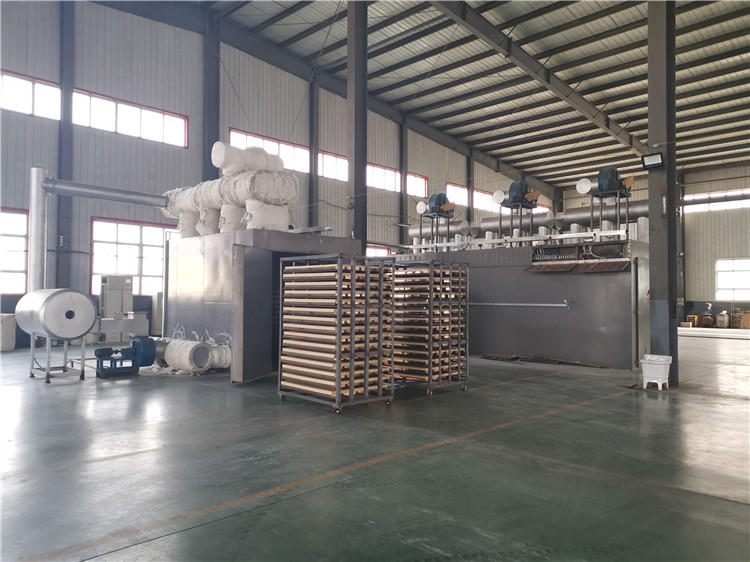

drying
Dries to release contained moisture and form a stable application
quality inspection
For each unit, we have one by one inspection to ensure the final use.
Product packaging
