High temperature refractory steam pipe insulation ceramic welding strap 50mm

Product Detail

Operating temperature:1000℃,1050Ultimate Strength (≥MPa):0.3
size:2X50X30000mmdeliver goods:Within 25 days after payment
Name:Ceramic fiber tape with adhesivechemical composition:Al2O3SiO2
Thermal Conductivity:0.075brand:Yao Xing
payment terms:L/C, T/Tdensity:550kg/m3
Fiber Diameter:3 nanometersClassification temperature:1260°C
Package:Woven baglength:30000mm
Packaging Details:Ceramic fiber woven bag with adhesivePay:wire transfer
Origin:Chinagrade:ST (Standard)
port:QingdaoSupply capacity:900m/day glued ceramic fiber belt
width:50mmmodel:Yuxintong
type:Stainless Steel Wire ReinforcementShrinkage (1800℉, 3 hours):<3%
application:Gas insulation, heat insulation

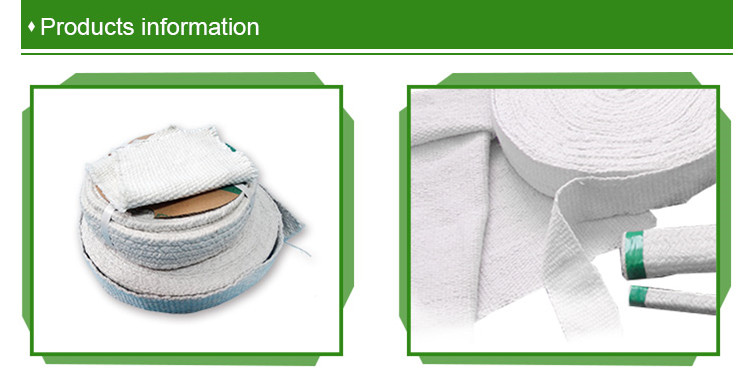

Ceramic wire insulation fiber tape picture



Product Series:

1.1260C ceramic fiber cloth YXTX-208A1 (glass fiber reinforced);

2. 1260C ceramic fiber cloth YXTX-208A2 (steel wire reinforcement)

3.1260C ceramic fiber belt YXTX-208B1 (glass fiber reinforced);

4.1260C ceramic fiber belt YXTX-208B2 (steel wire reinforcement)

5. 1260C ceramic fiber round braided rope YXTX-208C1 (glass fiber reinforced)

6. 1260C ceramic fiber round braided rope YXTX-208C2 (steel wire reinforcement)

7.1260C ceramic fiber twisted rope (yarn) YXTX-208D1 (glass fiber reinforced)

8.1260C ceramic fiber twist rope (yarn) YXTX-208D2 (steel wire reinforcement)

9.1260C ceramic fiber square braided rope YXTX-208E1 (glass fiber reinforced)

10.1260C ceramic fiber square braided rope YXTX-208E2 (steel wire reinforcement)

11.1260C ceramic fiber casing YXTX-208F

12.1260C ceramic fiber yarn YXTX-208G1 (glass fiber reinforced)

13.1260C ceramic fiber yarn YXTX208G2 (steel wire reinforcement)

14.1260C ceramic fiber twisted rope (wicker) YXTX-208H

describe:

Yaoxing ceramic fiber textiles include cloth ropes, yarns, etc.

It is made of ceramic fiber, glass fiber and steel wire through special processing.

In addition, we can produce and supply products in various sizes according to customers' needs

We are experts in kiln insulation construction.

We are in tunnel kiln, trolley furnace, pit furnace, down tube furnace,

Aluminum melting furnace cover, furnace door, etc.

And our ceramic fiber blankets, ceramic fiber modules, refractory anchor bolts and other related kiln refractory materials

Exported to Malaysia, Indonesia, Vietnam, Tajikistan, etc.

What's more, we can provide you with professional guidance on your construction site.

Therefore, choosing us is the best opportunity for us to exchange experience in international kiln construction.

Sincerely hope we can have pleasant cooperation in the future.

Grading temperature

1260

product

1260 ceramic fiber cloth

1260 ceramic fiber tape

the code

YXTX-208A1

YXTX-208A2

YXTX-208B1

YXTX-208B2

Operating temperature (°C)

450

1000

450

1000

basic material

Ceramic fiber/

glass fiber reinforced

Ceramic Fiber/Stainless Steel Reinforcement

Ceramic fiber/

glass fiber reinforced

Ceramic Fiber/Stainless Steel Reinforcement

Theoretical density (kg/m3)

400-500

550-630

550

Specifications (mm)

3000×1000/1500×2/3

3000×20/50/75/100×2/3

Moisture content (%)

≤2

Warp density

56-60pcs/10cm

Weft density

24-30pcs/10cm

Organic matter content (%)

≤15
