Industrial kiln braided thermal insulation ceramic fiber belt

  • $2.60 / >=20 kilometers
  • 20 kilometers
  • DKJL Co., Ltd.
  • Beijing, China
  • Ms Cherie Huang

Product Detail

payment terms:L/C, Western Union, D/P, D/A, T/T, MoneyGram, Alibaba Escrowraw material:ceramic fiber bulk
Fiber Diameter:3-5 micronsThermal Conductivity:0.20(1000℃)
width:1Mmodel:ceramic tape
brand:East Kangjilincolor:white
density:500~750kg/cubic metersample:usable
Certification:ISO9001:2008grade:HA (High Aluminum)
chemical composition:Aluminum oxide, silicon dioxideproduct name:ceramic fiber tape
port:TianjinUltimate Strength (≥MPa):0.5
Shrinkage (1800°F, 3 hours):0.3%length:30M
Operating temperature:600℃/1260℃application:Insulation, heat insulation
Name:ceramic fiber tapePackaging Details:Ceramic fiber tapes are first packed in plastic bags, and then packed into polypropylene woven bags or cartons. Usually 1x20FCL container loads 8-10 tons.
Origin:Shandong Province, ChinaSupply capacity:10 tons of ceramic fiber belt per week
type:round ropeOEM:OK

Industrial kiln braided thermal insulation ceramic fiber belt

Product Description

The ceramic fiber tape is made of special high-strength swinging long fiber with good spinning performance, which is spun and woven. According to different use temperature or different use conditions, glass fiber, stainless steel or other reinforcing materials are added to enhance the strength of the rope.



According to different processes, ceramic fiber belts can be divided into round ropes, square ropes and twisted ropes.



Specification of ceramic fiber tape: 6.0mm~50mm

Operating temperature: 800-1200°C.

Length: 1 roll of 25m, 30m, 50m or according to customer requirements.



Advantages of ceramic fiber tape:

(1) Excellent fire resistance (excellent heat resistance), the continuous use temperature of the alloy wire reinforced rope can reach 1260°C.

(2) It has excellent corrosion resistance to acid, oil, gas, aluminum, zinc and other non-ferrous metals.

(3) Excellent high temperature strength and tensile strength,

(4) Excellent electrical insulation,

(5) Non-toxic and harmless, no adverse effects on the environment.

(6) Excellent chemical stability and thermal stability

(7) Low thermal conductivity and low heat capacity make the product have excellent heat insulation performance

(8) Resistance to external mechanical force

(9) Capable of withstanding any thermal shock

(10) There is no gap between modules



Application of ceramic fiber tape

Ceramic fiber tape (can replace asbestos rope) is widely used in fire resistance, heat insulation, fire prevention, sealing; metallurgy, chemical industry, ceramics, glass, refractory materials, shipbuilding, aerospace, automobile, machinery, electronics, building materials, light industry and other industries Department of friction braking, noise reduction, high temperature filtration



(1) Insulation and sealing of high temperature pipes

(2) Cable insulation coating

(3) Coke oven mouth seal

(4) Pyrolyzer brick wall expansion joints

(5) Door sealing of electric furnace, oven and boiler

(6) High temperature gas seal

(7) Flexible expansion joint connection;



Ceramic fiber belt technical indicators:

Ceramic Fiber Twist Ribbon



strengthen

Diameter (mm)

twisted strand

glass wool

5 to 60

1 or more shares

Glass wire + stainless steel wire

5 to 60

1 or more shares





Ceramic fiber round braid

strengthen

Diameter (mm)

Weaving method

glass wool

5 to 60

2 or 4 tracks

Glass wire + stainless steel wire

5 to 60

2 or 4 tracks





Ceramic fiber square (rectangular) braided belt

strengthen

Diameter (mm)

Weaving method

glass wool

5 to 60

2 or 4 tracks

Glass wire + stainless steel wire

5 to 60

2 or 4 tracks

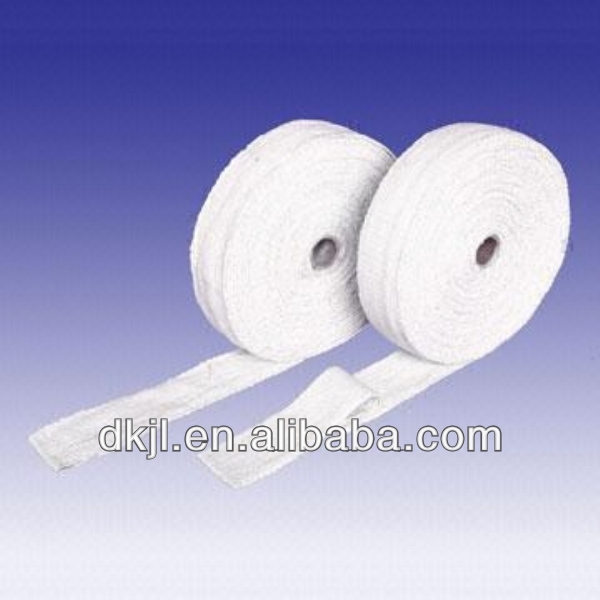

Ceramic fiber tape picture





Packaging and Shipping





Ceramic fiber tape packaging: woven bag or carton, lined with plastic bag

Ceramic fiber tape transportation: from any port in China by ship or train, samples can be shipped by international express.









our service



1. Timely response,

Reply to your inquiry in time, choose multiple recommendations according to your needs, and quickly

Reply to the email with a solution.



2. Free samples

Ceramic fiber tapes accept samples and trial orders for quality evaluation



3. Strict quality control

Arrange production on time and strictly control quality.



4. Shorter delivery time.

Book the earliest ship or plane to guarantee delivery time.



5. Professional Services

Provide all detailed news and pictures from order to delivery;

Provide relevant export documents and original certificates when necessary;

Warm and thoughtful after-sales service
