Fire-resistant ceramic fiber belt

Product Detail

color:whiteCertificate:ISO9000, MSDS, CE, REACH
Fiber diameter:3-5mmport:Ningbo
Shrinkage (1800°F, 3 hours):-3Ultimate strength (≥MPa):12 MPa
width:25MM 50MM 75MM 100MM,25MM 50MM 75MM 100MMThermal Conductivity:0.12-0.20w/mk(600-800C)
brand:Sitexapplication:Adiabatic
Operating temperature:1050℃grade:COM (common)
Material:ceramic fiber yarnmodel:ceramic fiber tape
product name:Fire-resistant ceramic fiber beltlength:30m,30M
strengthen:Glass wire, stainless steel wirepayment terms:L/C, Western Union, D/P, D/A, T/T, MoneyGram
chemical composition:AL2O3+SiO2: 99%Place of origin:Zhejiang, China
Supply capacity:100 tons per dayPackaging details:Standard export carton or customized.
thickness:2MM-3MM

Fire-resistant ceramic fiber belt

Product Description

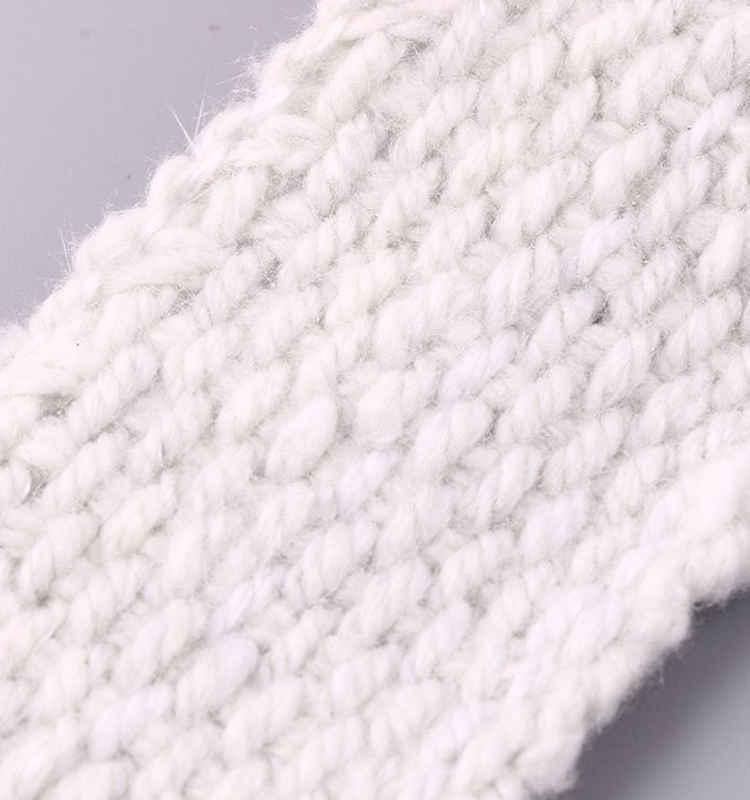

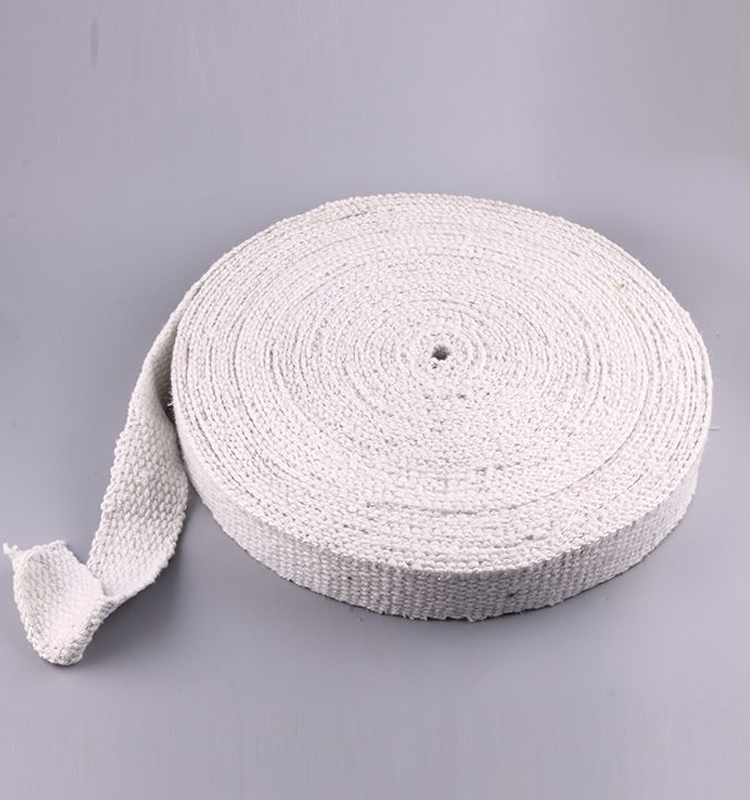

Ceramic fiber tape is a woven tape made from our high quality ceramic fiber yarn. It can be used in high temperature applications up to 1000°C. The tape is reinforced with fiberglass wire and optional stainless steel wire. It contains a certain amount of binder material and usually burns at a lower temperature without affecting the insulation performance.



application

Suitable for protective and insulating covers or shields, cable or pipe wraps, expansion joints, high temperature seals or gaskets. The product has been widely used in welding, foundries, aluminum and steel plants, boiler insulation and sealing, exhaust systems, shipyards, refineries, power plants and chemical plants.



Specification



serial number.

thickness

width

length

Enhanced

Weight per roll

TCR2900G-2-25-30

2mm

25mm

30m

Glass yarn

0.83kg

TCR2900G-2-50-30

2mm

50mm

30m

Glass yarn

1.65kg

TCR2900G-2-75-30

2 mm

75mm

30m

Glass yarn

2.48kg

TCR2900G-2-100-30

2 mm

100mm

30m

Glass yarn

3.3kg

TCR2900G-3-25-30

3mm

25mm

30m

Glass yarn

1.05kg

TCR2900G-3-50-30

3mm

50mm

30m

Glass yarn

2.1kg

TCR2900G-3-75-30

3mm

75mm

30m

Glass yarn

3.15kg

TCR2900G-3-100-30

3mm

100mm

30m

Glass yarn

4.2kg

TCR2900S-2-25-30

2mm

25mm

30m

Stainless steel wire

0.86kg

TCR2900S-2-50-30

2 mm

50mm

30m

Stainless steel wire

1.73kg

TCR2900S-2-75-30

2 mm

75mm

30m

Stainless steel wire

2.59kg

TCR2900S-2-100-30

2mm

100mm

30m

Stainless steel wire

3.45kg

TCR2900S-3-25-30

3mm

25mm

30m

Stainless steel wire

1.1kg

TCR2900S-3-50-30

3mm

50mm

30m

Stainless steel wire

2.25kg

TCR2900S-3-75-30

3mm

75mm

30m

Stainless steel wire

3.4kg

TCR2900S-3-100-30

3mm

100mm

30m

Stainless steel wire

4.5kg

*Special products can be produced according to customer requirements.



detailed image





about Us

Founded in 2002, Hitex is a leading manufacturer and supplier of fiberglass products used in transportation, chemical industry, construction engineering, thermal insulation, sound absorption and other fields. Hitex is engaged in fiberglass yarns and rovings, fiberglass chopped strand mats, fiberglass braided rovings, fiberglass fabrics, etc. We design, build, manufacture and quality control our own products to the strictest specifications, which directly benefits from the many years of experience Hitex has gained across the globeSyntheticmarket. Therefore, all our production plants are ISO9001/ISO14001 certified.

If you have any questions, welcome to ask for a quote and we will get back to you as soon as possible.
