Factory supply high temperature resistant rope seal ceramic gland packing

Product Detail

Packaging Details:Bagtype:Square rope
product name:ceramic ropemodel:CBR-102S
application:insulationusage:High temperature refractories
Supply capacity:50000 kg per monthchemical composition:Al2O3+SiO2
length:According to customer requirementspayment terms:L/C, D/A, D/P, T/T, Western Union, MoneyGram
feature:fire protectionFiber Diameter:3-5um
density:500~650kg/m3Thermal Conductivity:0.20(1000℃)
strengthen:stainless steel wire or fiberglassOrigin:Hebei china
quality:high qualitycolor:white
deliver goods:fast deliveryUltimate Strength (≥MPa):0.5
width:According to customer requirementsgrade:HP (high purity)
port:Tianjin port or any Chinese portpack:custom made
Shrinkage (1800℉, 3 hours):0.3%thickness:5 mm to 100 mm
Operating temperature:1000℃Serve:24-hour service
brand:Shield
Product Description

Factory Supply High Temperature Rope Seal Ceramic Supplier Specification

Widely used in high temperature neutral media such as water, steam, air and oil.

product information

color white
density 500~650kg/m3
strengthen stainless steel wire or fiberglass
pack custom made
Product Keywords High Temperature Rope Seal, Ceramic Rope Supplier, Ceramic Rope Specifications

describe

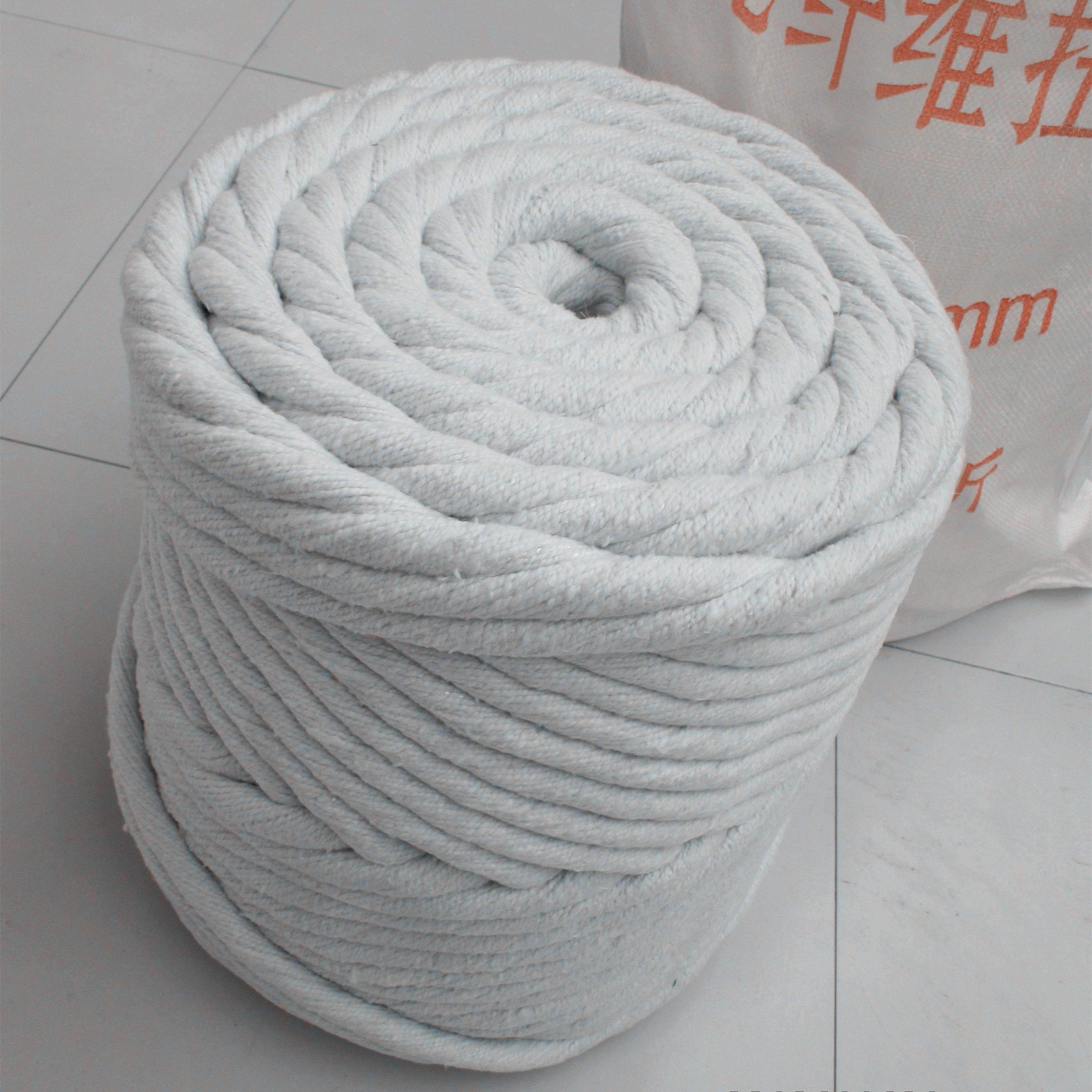

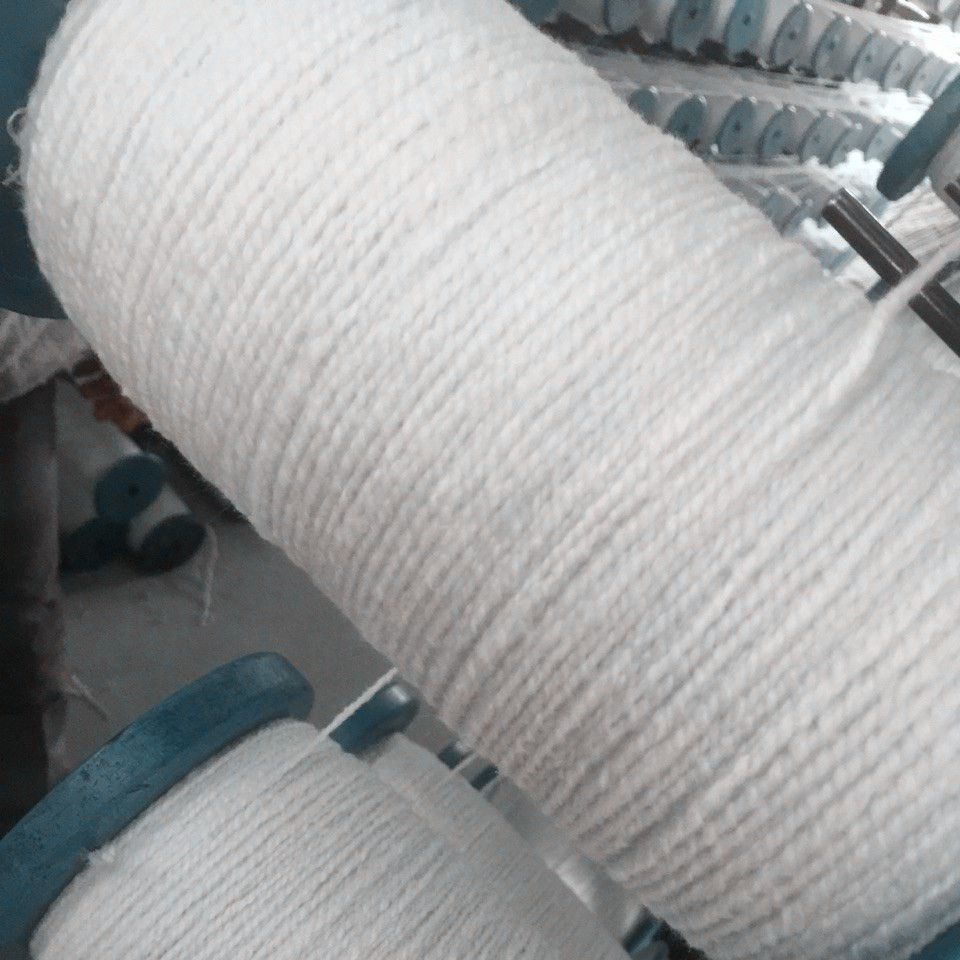

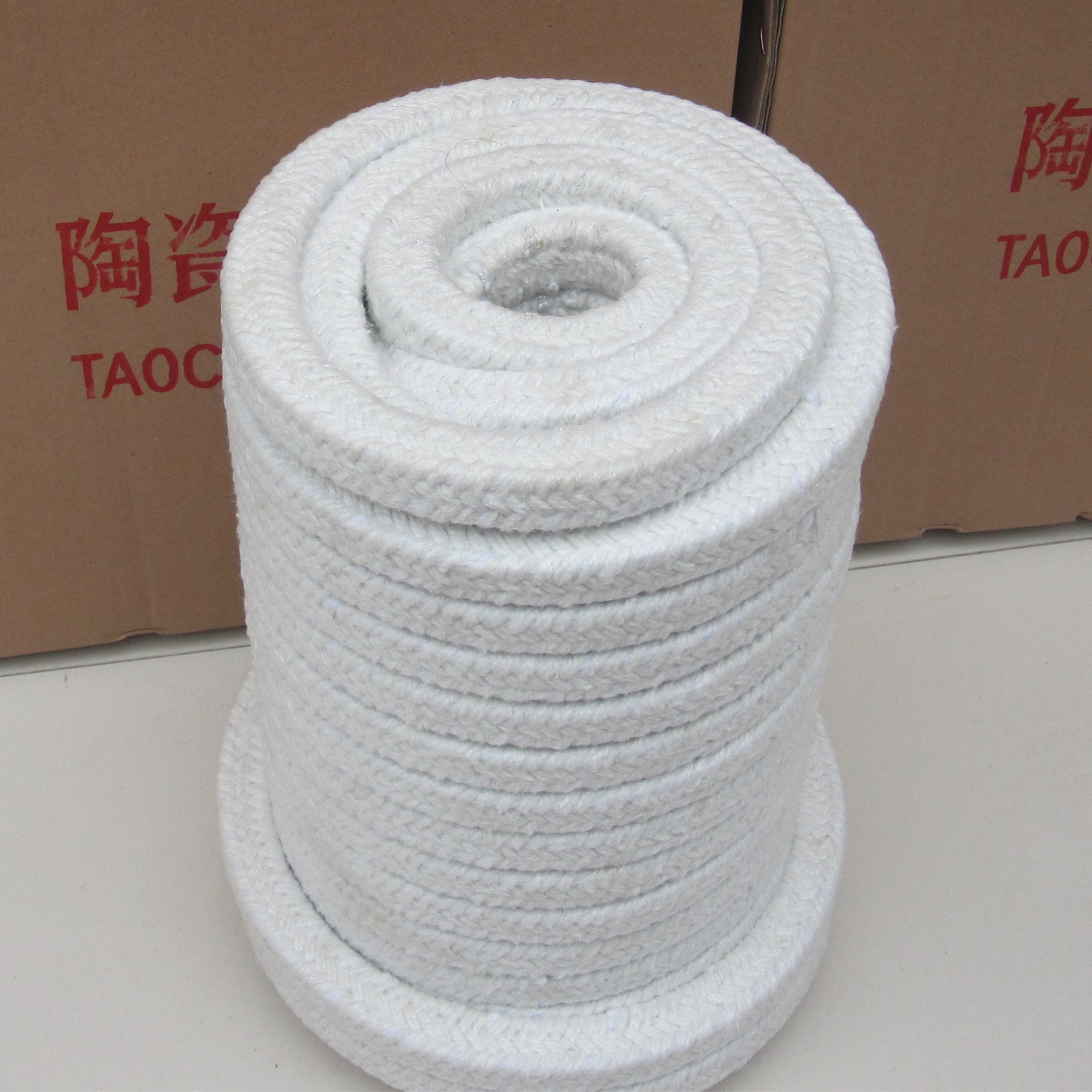

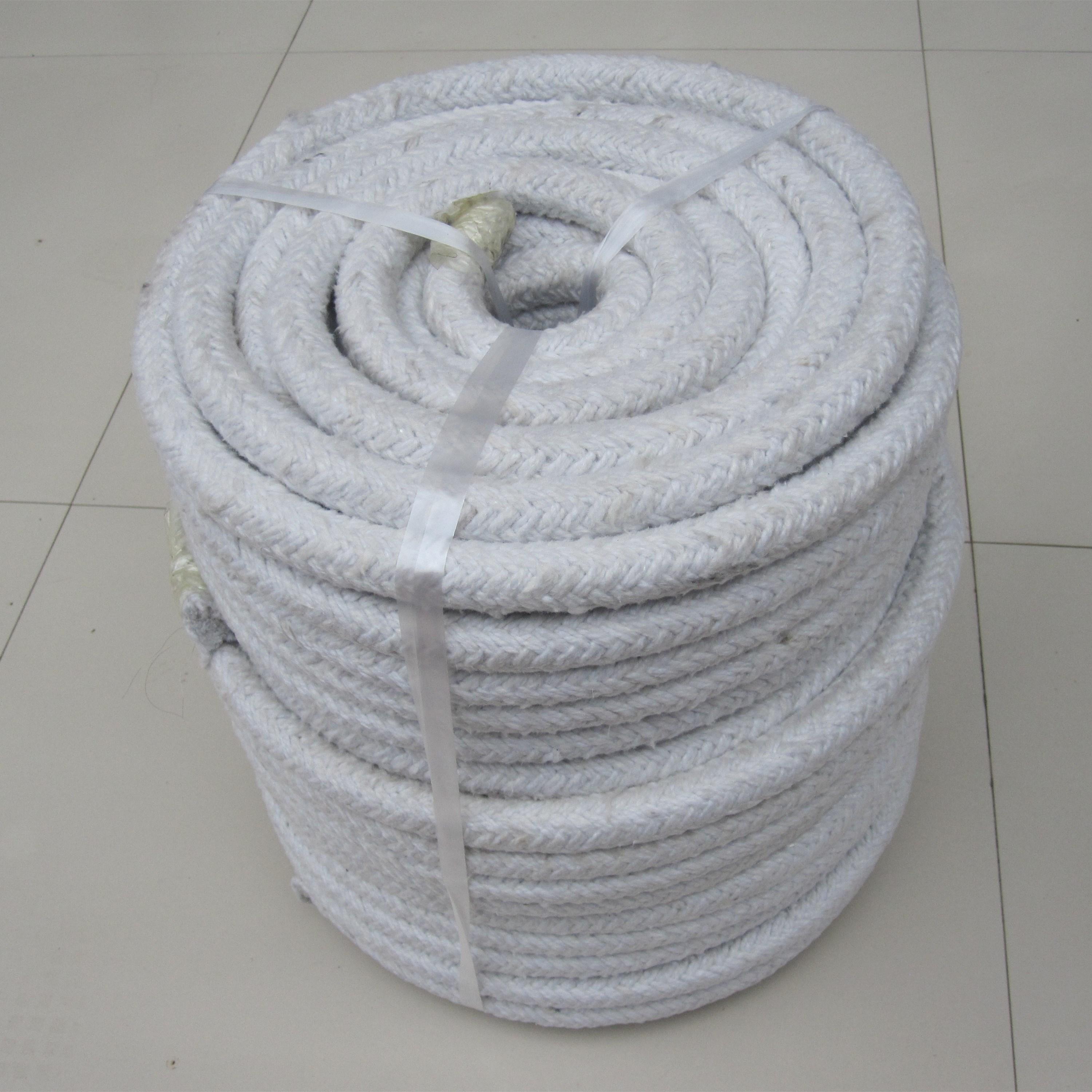

It includes three styles: twists, round braids, and square braids. All made from our high quality ceramic fiber yarn. They can be used in high temperature applications up to 1000°C. The rope is reinforced with fiberglass filaments and optional stainless steel wire. It contains a certain amount of binder material, which usually burns at a lower temperature and does not affect the insulation performance.

feature

- Woven from high-quality ceramic fibers,

-high strength,

- high temperature resistance,

- low density,

- low thermal conductivity,

-Excellent insulation and non-combustibility.

Specification

product

Reference no.

strengthen

temperature. Resistance (C degrees)

Diameter (mm)

Weaving method

Ceramic Fiber Packing

CBR-102G

glass wool

650

5 to 100

2 or 4 tracks

CBR-102S

Glass wire + stainless steel wire

1000

5 to 100

2 or 4 tracks

Ceramic Fiber Hemp Rope

CTR-102G

glass wool

650

5 to 100

2 or 4 tracks

CTR-102S

Glass wire + stainless steel wire

1000

5 to 100

2 or 4 tracks

application:

Widely used in high temperature neutral media such as water, steam, air and oil.

Used for pipeline insulation and fire protection, static sealing of containers, heaters, manholes, furnace ports, high temperature flanges, etc.

This filler is the ideal product to replace traditional asbestos gaskets. Perfect material for door sealing or caulking, expansion joints, cable or pipe wrapping, high temperature sealing or gasketing in ovens, furnaces and boilers. These products have been widely used in welding, foundries, aluminum and steel mills, boiler insulation and sealing, exhaust systems, shipyards, refineries, power plants and chemical plants. They are also used as the core for tadpole washers. Three different styles are designed to suit different application needs: the twisted rope is a soft rope, while the square and round weaves are denser and firmer.
