Refractory round rope with ceramic fiber//

Product Detail

Fiber Diameter:2-5μmtype:twisted rope, round rope, square rope, round rope
width:not anyOrigin:Henan, China
model:Square Braided Rope 15mmMoisture content:≤2%
length:25/30/50mgrade:ST (Standard)
Operating temperature:650-1050℃Packaging Details:1. Wooden box packaging 2. Ton bag packaging 3. Pallet packaging 4. Customized packaging according to customer needs
Supply capacity:30000 tons per monthapplication:insulation
diameter:5-100mmthickness:not any
Bulk density (kg/m3):350 - 620Shrinkage (1800°F, 3 hours):-3%
payment terms:L/C, Western Union, D/P, D/A, T/T, MoneyGramchemical composition:Aluminum oxide, silicon dioxide
Organic content:≤15%pack:woven bag or other
port:Qingdao, Tianjin, Shanghai and other important portsCertification:ISO9001:2008
Package preview:Loss on ignition (%):18±3
Aluminum oxide:≥45%brand:Lite
Thermal Conductivity:<=0.120(W/mk)Ultimate Strength (≥MPa):0.5
strengthen:Glass or stainless steel wire

Insulated Furnace Glass Sealed Ceramic Fiber Square Braided Rope

Product Description

What are the details of our ceramic braided rope?

1. Ceramic fiber rope includesSquare braided rope, round braided rope, twisted rope.

2. They are made of high qualityceramic fiber material. The rope is reinforced withglass fiber filament, orStainless steel wire.glass fiber filamentThe reinforced rope can work at the following temperature650°Chave electrical insulation properties, whileStainless steel wirecan work at temperature1100°CHas higher strength.

3. Ceramic fiber textiles (cloth, belt, rope) contain a certain amount of adhesive material, which usually burns at a relatively low temperature and does not burn.Affect insulation performance.

4.Twists are soft cords, while square and round braids are denser.



What are the technical data of our ceramic braided rope?



Classification

1. Ceramic fiber round rope 5-100mm

2. Ceramic fiber square rope 5*5-80*80mm

3. Ceramic fiber twisted rope 10-80mm

strengthen

1. Glass wool

2. Stainless steel wire

Technical data

Aluminum oxide

≥45%

silica

≥46%

Fiber diameter (micron)

2-5

Loss on ignition (%)

18±3

Continuous working temperature (℃)

1.650 (glass filament)

2.1050 (stainless steel wire)

Heat shrinkage rate (%)

<4% (9 hours at 1150°C)

hot Conductivity(%)

<0.20 (800°C)

Bulk density (kg/m33)

350 - 620

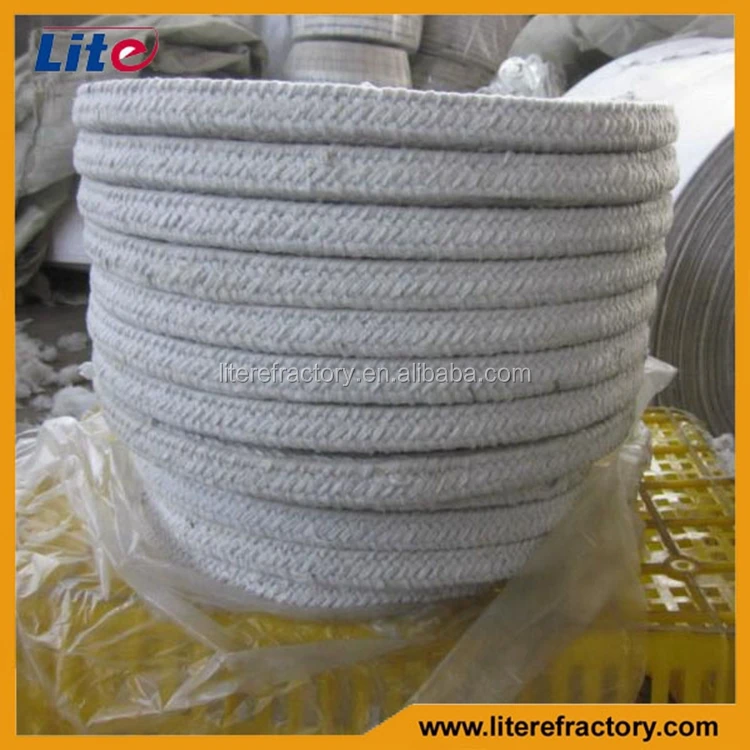

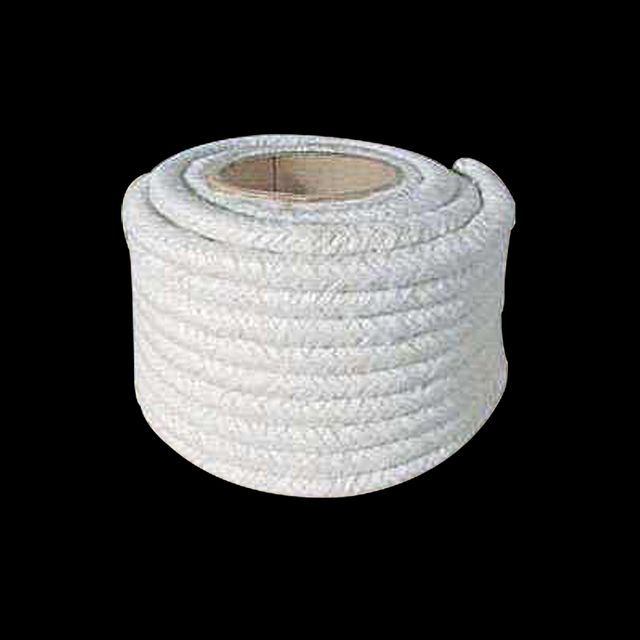

product photo



What are the features of our ceramic braided rope?

1. Excellent high temperature stability

2. Excellent tensile strength

3. Excellent thermoelectric insulation

4. Excellent chemical resistance and stability

5. Low thermal conductivity.



What are the applications of our ceramic braided ropes?

Widely used in welding, foundries, aluminum and steel mills, boiler insulation and sealing, exhaust systems, shipyards, refineries, power plants and chemical plants, etc.

(1) Insulation and sealing of high temperature pipelines

(2) Insulation coating of cables and wires

(3) Coke oven mouth seal

(4) Pyrolyzer brick wall expansion joints

(5) Door sealing of electric furnace, oven and boiler

(6) High temperature gas seal

(7) Flexible expansion joint connection

(8) Furnace curtain and hot zone partition

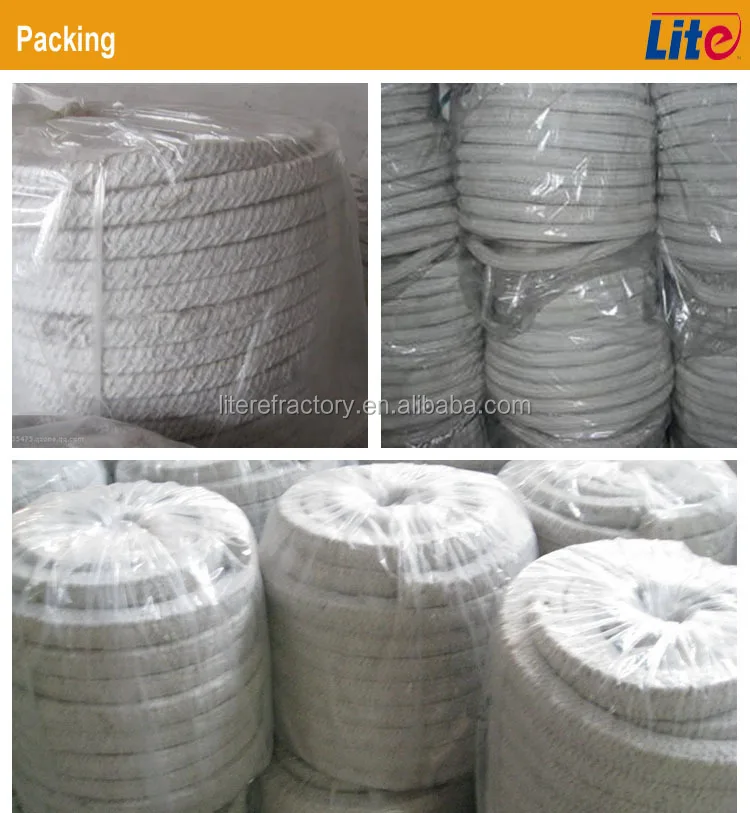

Packaging and Shipping

Packing, Shipping, Trade Terms



shipping

1.FedEx/DHL/UPS/TNTfor samples.



2.Bulk shipments by sea.



3. The customer specifies the freight forwarder or can negotiate the transportation method!

4.delivery time:3 days for samples; within 7-15 days for bulk goods.

payment terms

1. Payment method:T/T, Western Union, LC; usually 30% deposit, 70% balancebefore delivery ornegotiationto solve.



2. MOQ: usually 10 rolls.

3. Quality assurance:1 year,

4. Packing information: 1. Woven bag lined with plastic bag 2. According to customer requirements
