Ceramic fiber tape with heat resistant insulation 2-3 mm

Product Detail

Supply capacity:100 tons per day 2-3MM heat-resistant insulating ceramic fiber tapeUltimate Strength (≥MPa):12Mpa
Shrinkage (1800℉, 3 hours):-3port:Ningbo
brand:high spinningFiber Diameter:3-5mm
Packaging Details:Standard export carton or customized. 2-3MM heat-resistant insulating ceramic fiber tapepayment terms:L/C, D/A, D/P, T/T, Western Union, MoneyGram
Operating temperature:1050°Cgrade:Serial port (common)
strengthen:Glass yarn, stainless steel wireThermal Conductivity:0.12-0.20w/mk (600-800C)
thickness:2MM-3MMCertificate:ISO9000, MSDS, CE, REACH
length:30M, 30mwidth:25MM 50MM 75MM 100MM, 25MM 50MM 75MM 100MM
application:insulationMaterial:ceramic fiber yarn
product name:2-3MM heat-resistant insulating ceramic fiber tapeplace of origin; place of origin:Zhejiang, China
chemical composition:Alumina + silica: 99%model:ceramic fiber tape
color:white

2-3MM heat-resistant insulating ceramic fiber tape

Product Description

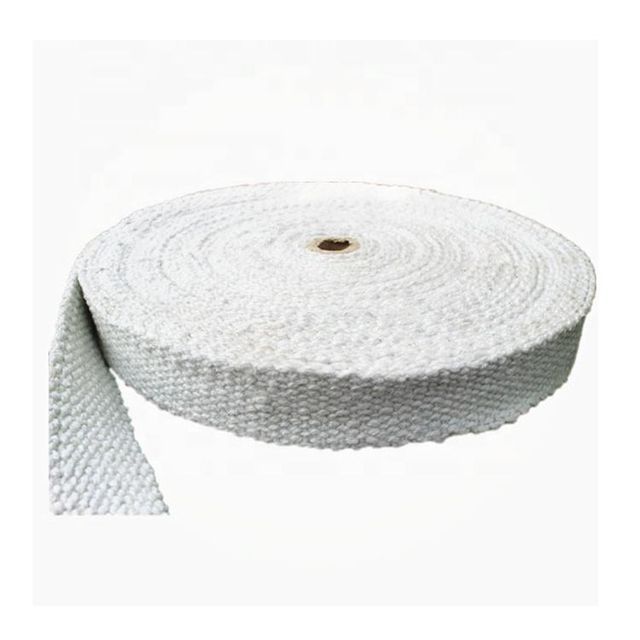

Ceramic fiber tapes are braided tapes made from our premium ceramic fiber yarns. It can be used in high temperature applications up to 1000°C. The tape is reinforced with fiberglass filaments and optional stainless steel wire. It contains a certain amount of binder material, which usually burns at a lower temperature and does not affect the insulation performance.



application

Ideal for protective and insulating covers or shields, cable or pipe wrapping, expansion joints, high temperature seals or gaskets. The product has been widely used in welding, foundries, aluminum steel mills, boiler insulation and sealing, exhaust systems, shipyards, refineries, power plants and chemical plants.



Specification



Numbering.

thickness

width

length

strengthen

Weight per roll

TCR2900G-2-25-30

2 mm

25mm

30 meters

glass yarn

0.83 kg

TCR2900G-2-50-30

2 mm

50mm

30 meters

glass yarn

1.65 kg

TCR2900G-2-75-30

2 mm

75mm

30 meters

glass yarn

2.48 kg

TCR2900G-2-100-30

2 mm

100mm

30 meters

glass yarn

3.3 kg

TCR2900G-3-25-30

3mm

25mm

30 meters

glass yarn

1.05 kg

TCR2900G-3-50-30

3mm

50mm

30 meters

glass yarn

2.1 kg

TCR2900G-3-75-30

3mm

75mm

30 meters

glass yarn

3.15 kg

TCR2900G-3-100-30

3 mm

100mm

30 meters

glass yarn

4.2 kg

TCR2900S-2-25-30

2 mm

25mm

30 meters

Stainless steel wire

0.86 kg

TCR2900S-2-50-30

2 mm

50mm

30 meters

Stainless steel wire

1.73 kg

TCR2900S-2-75-30

2 mm

75mm

30 meters

Stainless steel wire

2.59 kg

TCR2900S-2-100-30

2 mm

100mm

30 meters

Stainless steel wire

3.45 kg

TCR2900S-3-25-30

3mm

25mm

30 meters

Stainless steel wire

1.1 kg

TCR2900S-3-50-30

3mm

50mm

30 meters

Stainless steel wire

2.25 kg

TCR2900S-3-75-30

3mm

75mm

30 meters

Stainless steel wire

3.4 kg

TCR2900S-3-100-30

3mm

100mm

30 meters

Stainless steel wire

4.5 kg

*Specific products can be made according to customer requirements.



detailed image





about us

Established in 2002, Hitex is a leading manufacturer and supplier of fiberglass products for applications such as transportation, chemical, construction, thermal insulation, and sound absorption. Hitex is engaged in fiberglass yarns and rovings, fiberglass chopped strand mats, fiberglass woven rovings, fiberglass fabrics, etc. We design, build, manufacture and quality control our own products, allowing for the strictest specifications, benefiting directly from Hitex's many years of experience gained globallySyntheticmarket. Therefore, all our production plants are ISO9001/ISO14001 certified.

If you have any questions, welcome to request a quotation, we will reply you as soon as possible.
