Custom Fused Silica Roller Ceramic Roller For Glass Tempering Furnace Diameter 85 X 3360mm
- $300.00 / >=10 pieces
- 10 pieces
- Luoyang Lever Industry Co., Ltd.
- Henan, China
- Mr Kevin Xing
Product Detail
| brand: | lever | Supply capacity: | 100,000 volumes per month |
| Transverse strength (Mpa): | ≥30 | Silica Purity: | ≥99.8% |
| application: | Glass Tempering Furnace | Apparent porosity(%): | 7-11 |
| port: | Shanghai | Origin: | China |
| TIR (rotational tolerance, mm): | ≤0.10 | Processing services: | Welding, punching, decoiling, cutting, forming |
| shape: | round shape | Ferric oxide: | ≤ 45ppm |
| Package preview: | density: | 2.00 g/cm3 | |
| Packaging Details: | wooden box | application: | northglass, landglass, tamglass, glass tempering furnace |
| Bulk Density (g/cm3): | >1.98 | Alumina: | ≤2000ppm |
| thickness: | Diameter 30-180mm | payment terms: | Western Union, T/T, MoneyGram |
| product name: | Fused Silica Ceramic Roller | type: | opaque quartz plate |
Product Description
Fused Silica Ceramic Roller High Density Conveying Furnace GlassforGlass Tempering Machine Furnace Oven
Fused silica ceramics are fused silica materials made of fused silica or quartz glass using ceramic production technology. It has small thermal expansion coefficient, good thermal stability, good electrical insulation, and chemical corrosion resistance (except hydrofluoric acid and 300°C concentrated phosphoric acid)
acid), low thermal conductivity, good processability.
acid), low thermal conductivity, good processability.
In addition, it has a feather different from other ceramic materials, its
Strength increases with increasing temperature.
We can supply rollers according to your specifications and drawings.
Strength increases with increasing temperature.
We can supply rollers according to your specifications and drawings.
Product parameters
describe | index | describe | index |
raw material | Fused Silica | Compressive strength | ≥ 60(MPa) |
purity | ≥99.8% | transverse strength | ≥30(Mpa) |
Bulk density | ≥1.98g/cubic centimeter | radial beat | ≤0.10mm |
Apparent porosity | 7-11% | press compress | 102 MPa |
Coefficient of expansion | ≤0.6(x10-6/℃) | chemical composition | silica |
Surface roughness | ≤1.6um | shape | round, hollow, etc. |
outer diameter tolerance | ±0.05mm | porosity | 10% |
TIR (rotational tolerance) | ≤0.10mm | Package | Fumigation wooden box |
Common dimensions of ceramic rollers:
customizable
inner diameter (mm) | length | Outer diameter (mm) | length |
15 - 25 | 1300mm | 66 - 75 | 3400mm |
26 - 30 | 1400mm | 76 - 85 | 3400mm |
31 - 35 | 1700mm | 86 - 90 | 3400mm |
36 - 40 | 1700mm | 91 - 100 | 3500mm |
41 - 45 | 2200mm | 101 - 105 | 3700mm |
46 - 55 | 3000mm | 111 - 120 | 3900mm |
61 - 65 | 3200mm | 121 - 130 | 4000mm |

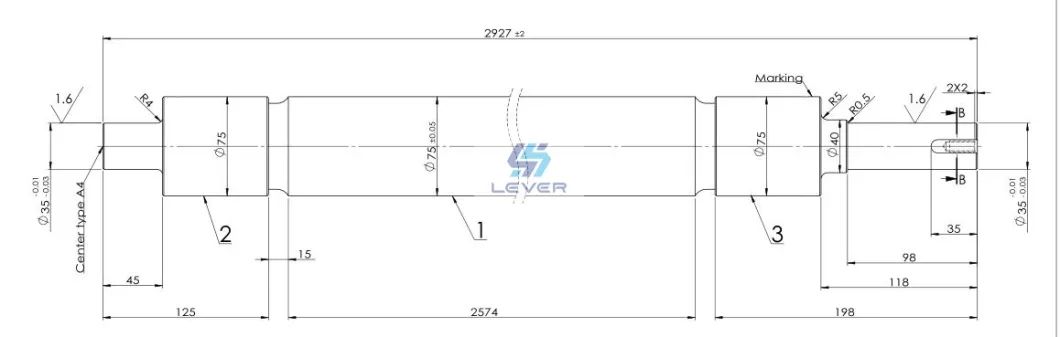

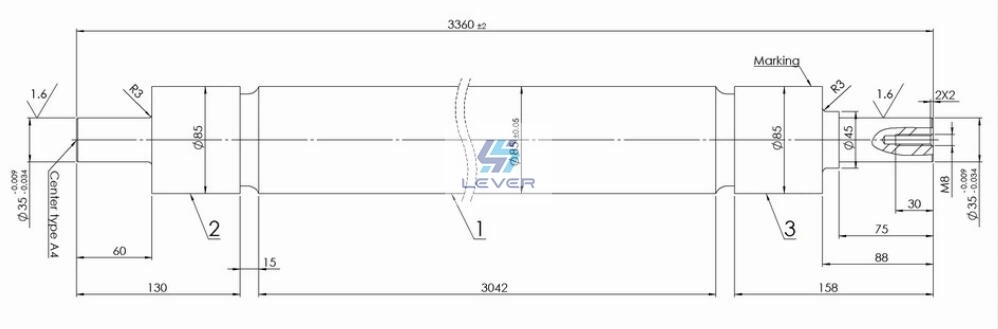

The following drawing samples are for reference only and can be customized
detailed drawing
Get the best offer now!

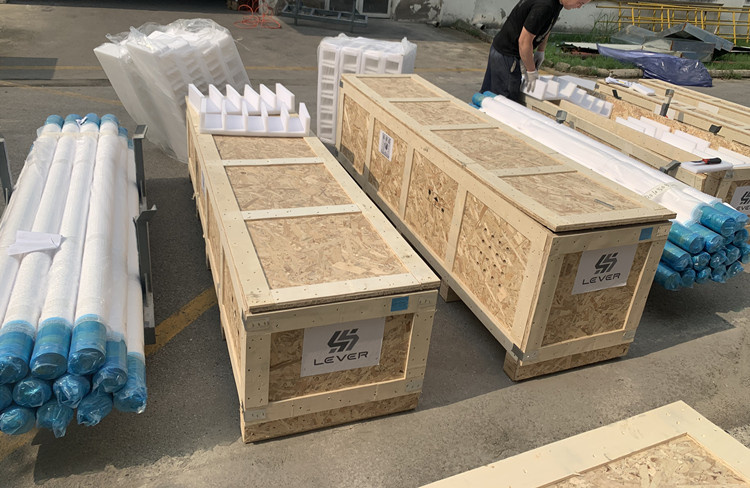

Product packaging
Get the best offer now!
