Transparent high quality quartz glass plate Polished fused quartz glass plate
-
$1.00 / 1 - 99 pieces
$0.80 / >=100 pieces - 1 piece
- Lianyungang Shengfan Quartz Products Co., Ltd.
- Jiasngsu, China
- Mr SHARON
Product Detail
| Annealing point: | 1180℃ | port: | Shanghai Port and Qingdao Port |
| model: | QSP-1 | density: | 2.2 g/cm3 |
| Melting Point: | 1750-1850℃ | Material: | Silicon dioxide content>99.99% |
| Origin: | Jiangsu, China | Operating Temperature: | 1150℃ |
| Strain Point: | 1100℃ | type: | Transparent quartz plate |
| Processing services: | Bending, welding, punching, polishing | hardness: | Morse 6.5 |
| Acid resistance: | 30 times that of ceramics and 150 times that of stainless steel | Product Name: | Quartz Plate |
| shape: | square | size: | custom made |
| Brand Name: | Shengfan | Packaging Details: | Plastic foam/polystyrene foam board/carton/wooden pallet |
| Supply Ability: | 10000 pieces per month | thickness: | 0.5-100 mm |
| application: | Semiconductor, Optics | Payment Terms: | Letter of Credit, Telegraphic Transfer |
| Package Preview: |
Product Description
Features of Shengfan Quartz Plate | ||
*brand | Saint Quartz | |
*Silicon dioxide 2 | 99.99% | |
*density | 2.2 (g/cm3) | |
*Mohs hardness | 6.6 | |
* Melting point | 1732℃ | |
* Operating temperature | 1100℃ | |
* Annealing point | 1180℃ | |
* Softening point | 1630℃ | |
1. SiO2> 99.99%, high purity quartz tube. 2. Working temperature: 1250℃ Softening temperature: 1730℃. 3. Excellent appearance and chemical properties. 4. No surface coating and pollutants. 5. Hygiene and environmental protection. 6. Can be made in any size. 7. CE, RoHs, SGS certification.
density | 2.2×103 kg/m3 | hardness | 5.5 - 6.5 Mohs hardness 570 KHN 100 |
Design tensile strength | 4.8x107 Pascals (N/m2) (7000 psi) | Design compressive strength | Greater than 1.1 x l09 Pa (160,000 psi)SMD 5730 |
Bulk modulus | 3.7x1010 Pascals (5.3x106 PSI) | Modulus of rigidity | 3.1x1010 Pascals (4.5x106 PSI) |
Softening point | 1730℃ | Annealing point | 1215℃ |
JGS1(ZS-1) | JGS2(ZS-2) | JGS3(High speed) | |
Spectral characteristics | 180-2500 nm | 200-2500 nm | 260-3500 nm |
Average transmittance | 90% | 85% | 85% |
Bubble | 0 | 2 | 2 |
Birefringence | 1-2 | 1-2 | 1-2 |
Grain structure | 1 | 2 | 2 |
edge | 1-2 | 2 | 2 |
Uniformity | 1-2 | 2 | 2 |
Fluorescence | 1 | 2 | 2 |
Radiation performance | No color change | Discoloration of vision | Change Color |
Detailed pictures
Product Usage
Applications:
This product is mainly used in electric light sources, electrical appliances (electrical engineering), semiconductors, optical communications, military industry, metallurgy, building materials, chemicals, machinery, electricity, environmental protection and other fields.

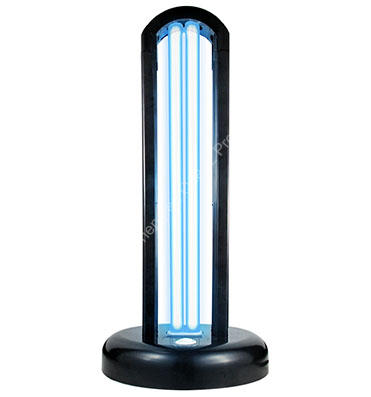

Germicidal lamp

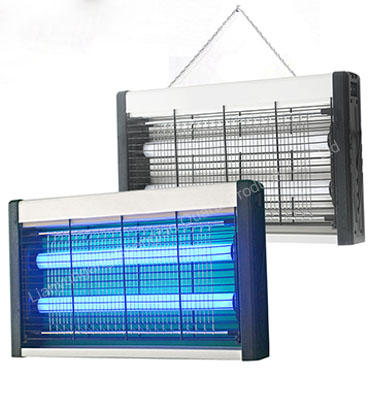

Germicidal lamp

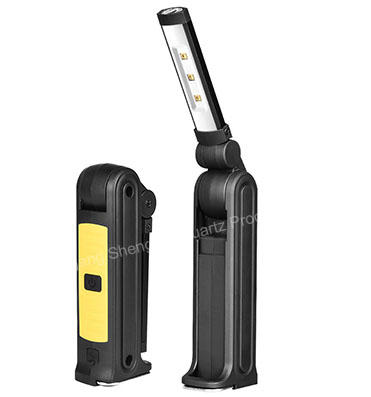

Germicidal lamp
Germicidal lamp
Production Process
