SK34 42% Al2O3 Curved Barbecue Refractory Brick

Product Detail

size:230mm*114mm*65/75mm or other sizesraw material:High alumina bauxite
Supply capacity:6000 tons of sk34 curved barbecue refractory bricks per monthCrO content (%):Little
CaO content (%):Littlemodel:sk34 curved refractory brick
Refractoriness (degrees):Ordinary (1580°shape:brick
payment terms:L/C, T/T, Western UnionSilicon carbide content (%):Little
Apparent porosity:22~26%Cold compression strength (mpa):25 MPa min
Origin:Chinaport:Qingdao, Tianjin and other major ports in China
Load refractoriness:1250 minutesMaterial:Alumina block
sample:Provide free samples of sk34 barbecue curved refractory bricksMgO content (%):Little
Al2O3 content (%):33-48%Bulk density/g/cm3,:1.95~2.15
Packaging Details:1. On wooden pallet with plastic cover 2. According to customer's requirementbrand:Lite
Refractoriness:1700°CSilica content (%):50%~65%
Ferric oxide:3%product name:SK34 42% Al2O3 Curved Barbecue Refractory Brick

SK34 42% Al2O3 Curved Barbecue Refractory Brick

Product Description





What is the details of our sk34 BBQ curved refractory brick?

1. sk34 barbecue curved refractory bricks are made of high-alumina bauxite, which is crushed, mixed, shaped, dried and sintered at high temperature.
2. The main chemical composition of sk34 arc-shaped refractory bricks for barbecue: the content of Al2O3 is 30%-48%, the content of SiO2 is 50%-65%, and there are a small amount of alkali metal and alkaline earth metal oxides.
3. The refractoriness of clay bricks is 1580-1750°C.



What is the specification of our sk34 BBQ curved refractory brick?


thingindex
productSK30 sk34 Curved barbecue refractory bricksSK32 sk34 arc barbecue refractory bricksSK34 sk34 curved barbecue refractory bricks
Aluminum oxide33%38%38-45%
Ferric oxide3%3%2.5%
Bulk density≥ 1.9 ~ 2.0 g/cm3≥2.1g/cubic centimeter≥2.15g/cubic centimeter
Refractoriness≥1670℃≥1700℃≥1730℃
Apparent porosity≤ 26%≤ 26%≤ 22%
Cold compressive strength≥25MPa≥30MPa≥35MPa
Load refractoriness (0.2Mpa)≥1230℃≥1250℃≥1280℃
Reheat linear change (1500℃, 2h)-0.5~0-0.5~0-0.3~0

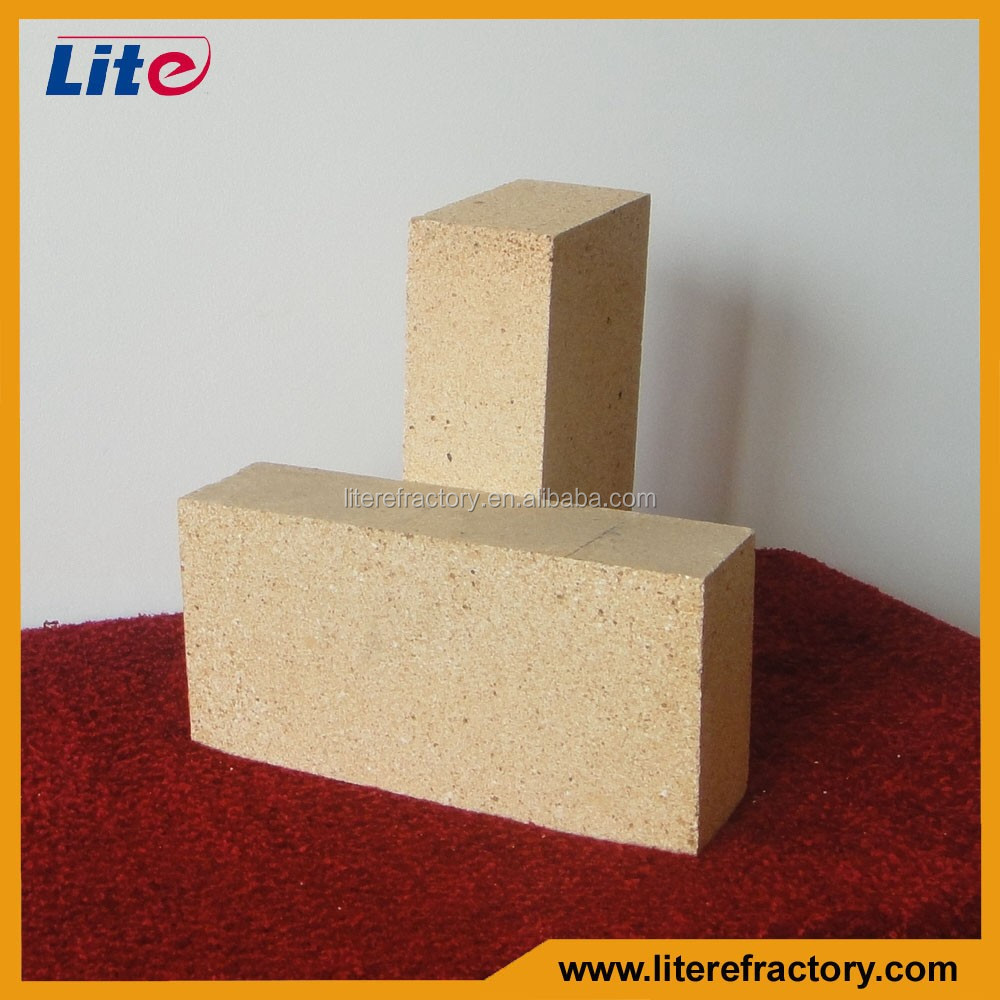

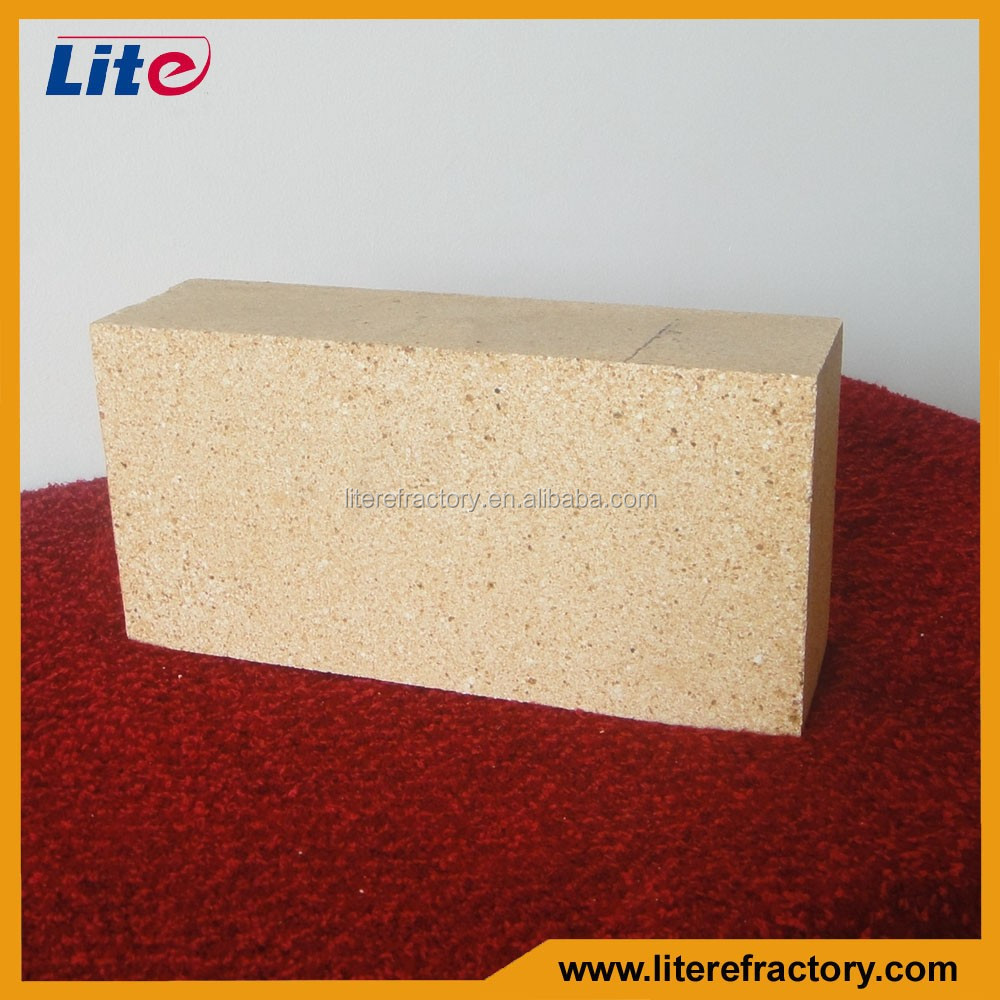

Our sk34 curved refractory bricks for BBQ display:



What is the shape and size of our sk34 BBQ curved refractory brick?



straight

Split

archwedge

watt

other shapes

Length × width × height (mm)

230×114×65

230×114×75

Length x width x height (mm)

230×114×25

230×114×32

230×114×37

230×114×50

Length × width × height / hour (mm)

230×114×65/45

230×114×65/55

230×114×75/45

230×114×75/55

230×114×75/65

Length × width × height / hour (mm)

230×114×65/45

230×114×65/55

220×114×75/45

220×114×75/55

220×114×75/65

Length x width x height (mm)

230×230×38

230×230×50

230×230×65

230×230×75



key brick,

oblique bricks,

Soap,

inspector,

neck,

taper,

We can also make dense refractory bricks in special shapes according to customers' drawings and requirements.

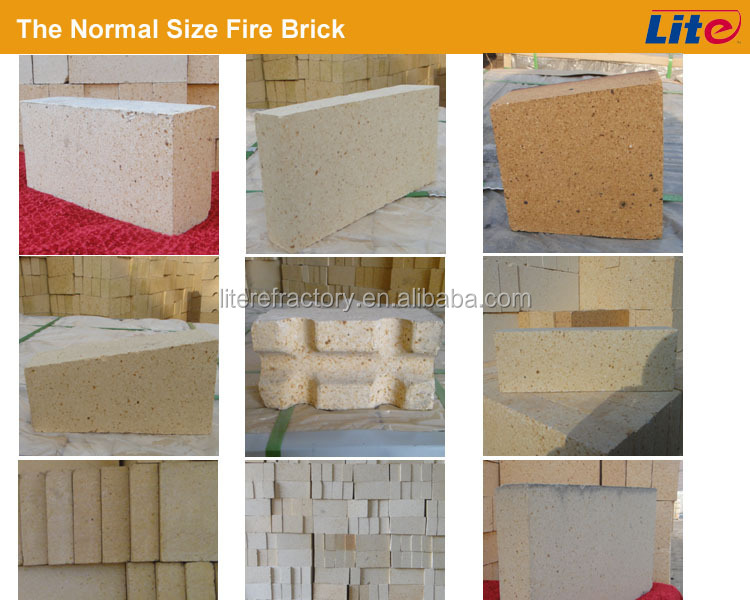

Standard size of sk34 curved refractory brick for barbecue:

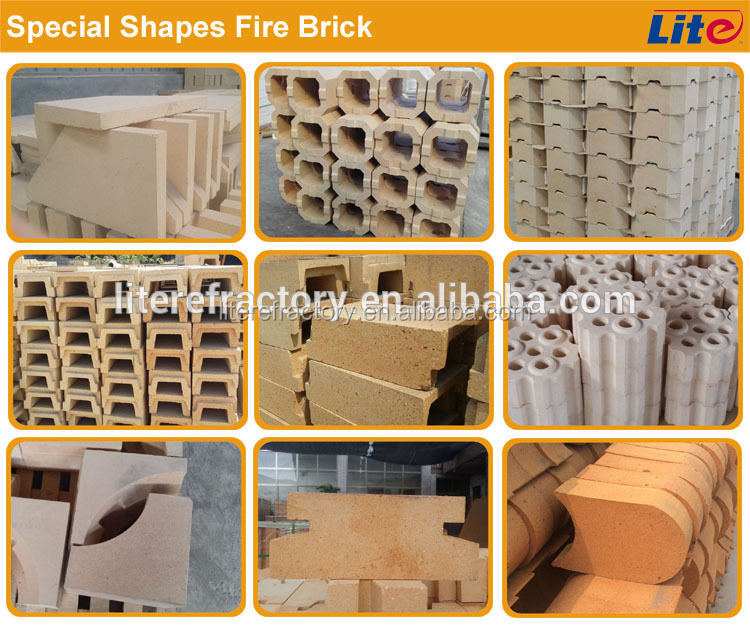

Special shape of sk34 curved refractory brick for barbecue:



What are the features of our sk34 barbecue curved refractory brick?

1. Low coefficient of linear expansion.
2. Good thermal shock resistance.
3. Strong ability to resist acid slag erosion. Good corrosion resistance.
4. High refractoriness and high temperature resistance.
5. Good peeling resistance and wear resistance.
6. Low creep rate at high temperature.
7. Good volume stability at high temperature.

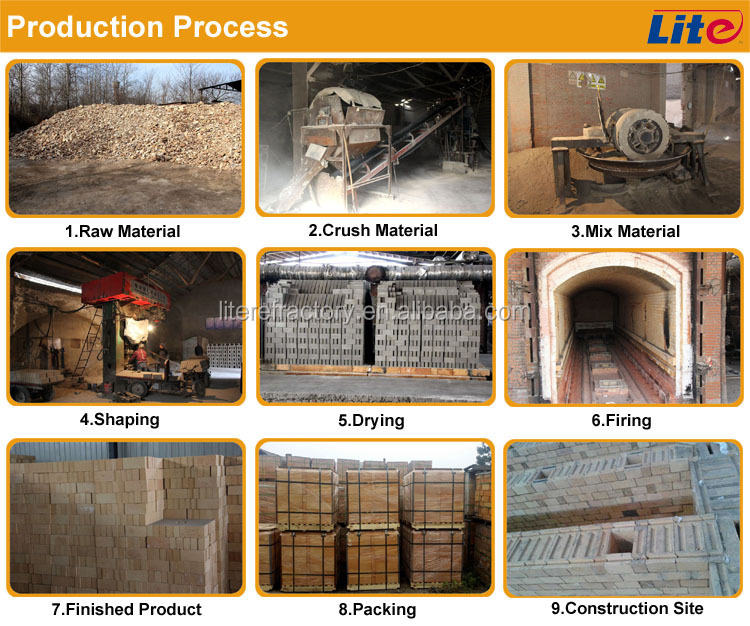

The production process of our sk34 curved refractory bricks for barbecue:

Crushing→mixing→forming→drying→firing→inspecting→packing and shipping

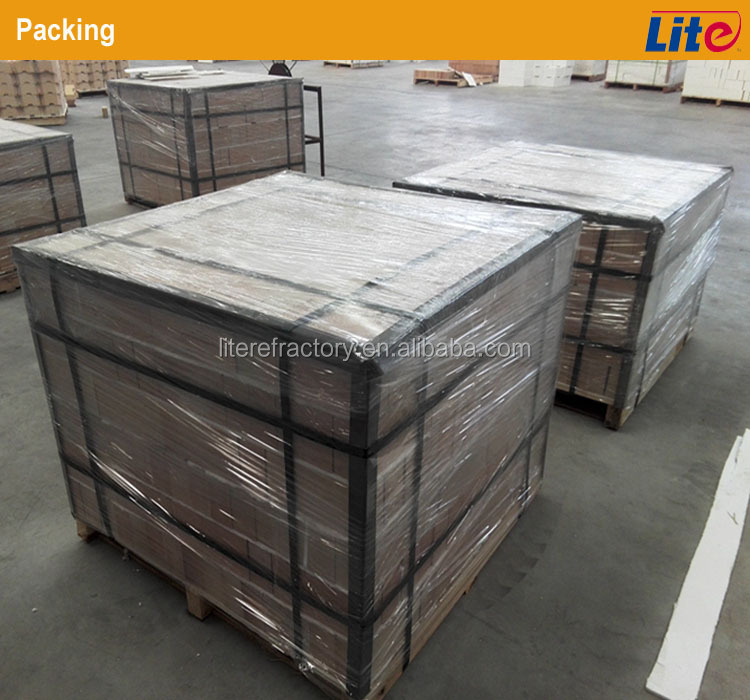

Packaging and Shipping

The packing information of our sk34 BBQ curved refractory brick:

1. On wooden pallet with plastic cover.
2. According to customer's request.



thingSK30 sk34 Curved barbecue refractory bricksSK32 sk34 arc barbecue refractory bricksSK34 sk34 curved barbecue refractory bricks
230*114*65mm



About weight/PC3.3 kg/piece3.5kg/piece3.7kg/piece
piece/ton303PCS/ton285PCS/ton270PCS/ton
Package512PCS/tray
pallet/20ft container14 pallets/20ft container13 pallets/20ft container13 pallets/20ft container
PCS/20ft container7168PCS/20 feet container6656PCS/20 feet container6656PCS/20 feet container
230*114*75mmAbout weight/PC3.8 kg/piece4.1kg/piece4.2kg/piece
piece/ton263PCS/ton243PCS/ton238PCS/ton
Package448PCS/tray
pallet/20ft container14 pallets/20ft container13 pallets/20ft container13 pallets/20ft container
PCS/20ft container6272PCS/20 feet container5824PCS/20 feet container5824PCS/20 feet container









Shipping information of our sk34 curved refractory bricks for BBQ:

1. FEDEX/DHL/UPS/TNT for samples.

2. Bulk goods by sea.

3. Delivery time: within 25 days
