Tape with thermal insulating ceramic fibers
- $1.00 / >=100 kilograms
- 100 kilograms
- Hitex Insulation (Ningbo) Co., Ltd.
- Zhejiang, China
- Mr Ben Zhang
Product Detail
| Shrinkage (1800℉, 3 hours): | -3% | payment terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Operating temperature: | 1260°C | Packaging Details: | Carton or pp woven bag |
| Weft density: | 21~30pcs/10cm | Classification temperature: | 1260°C |
| product name: | Thermal insulation ceramic fiber belt | length: | 30m, 50m, 100m |
| port: | Ningbo | density: | 500+/-30 kg/m3 |
| color: | white | Thermal Conductivity: | 0.055-0.180 |
| Warp density: | 48~60pcs/10cm | Material: | glass fiber reinforced |
| place of origin; place of origin: | Zhejiang, China | width: | 20-150mm |
| grade: | ST (Standard) | chemical composition: | alumina, silica |
| brand: | high spinning | application: | insulation |
| Ultimate Strength (≥MPa): | 0.5 | Fiber Diameter: | 2-5um |
| model: | TCR2900 | Supply capacity: | 10000 kg per week |

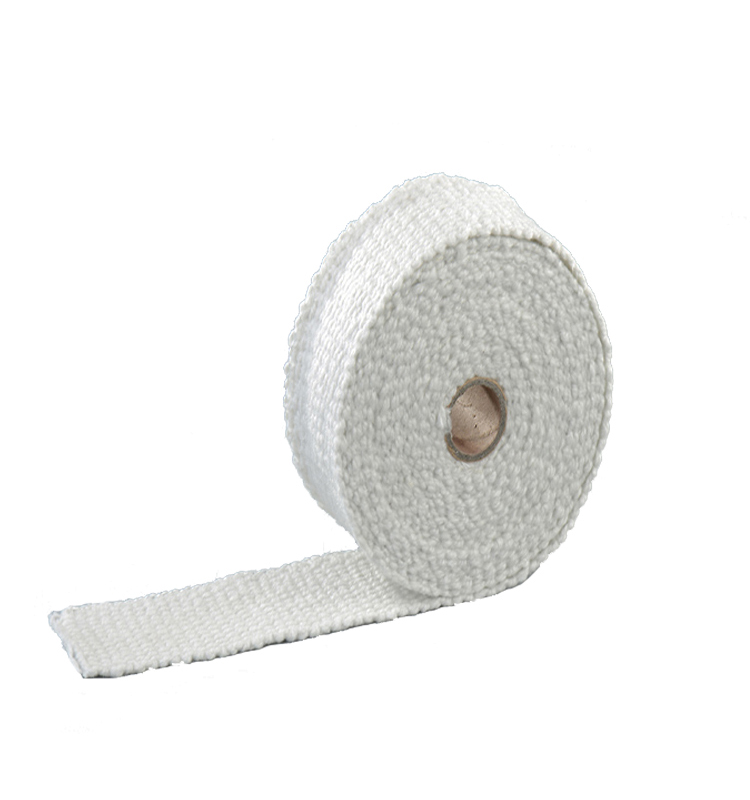

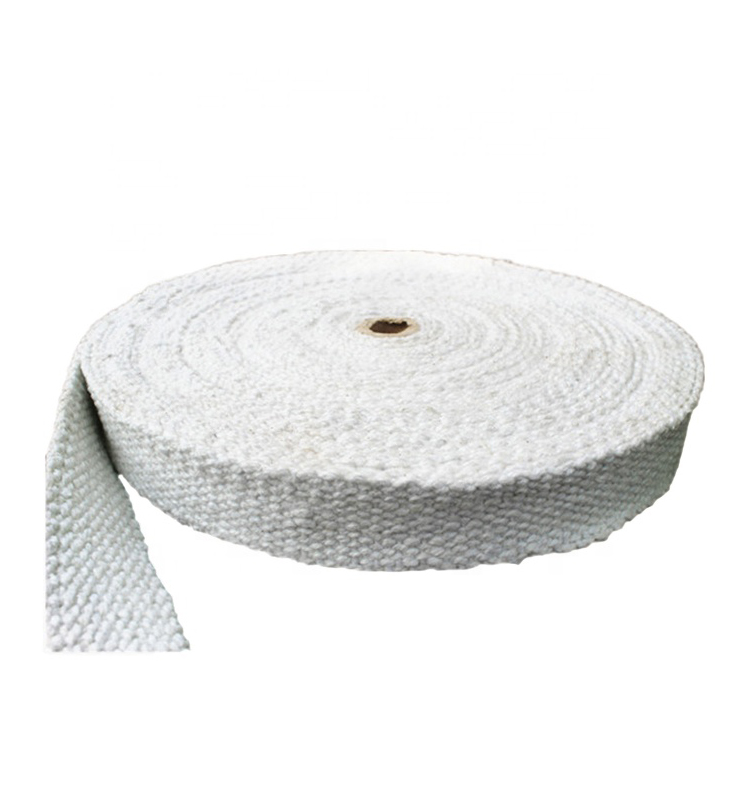

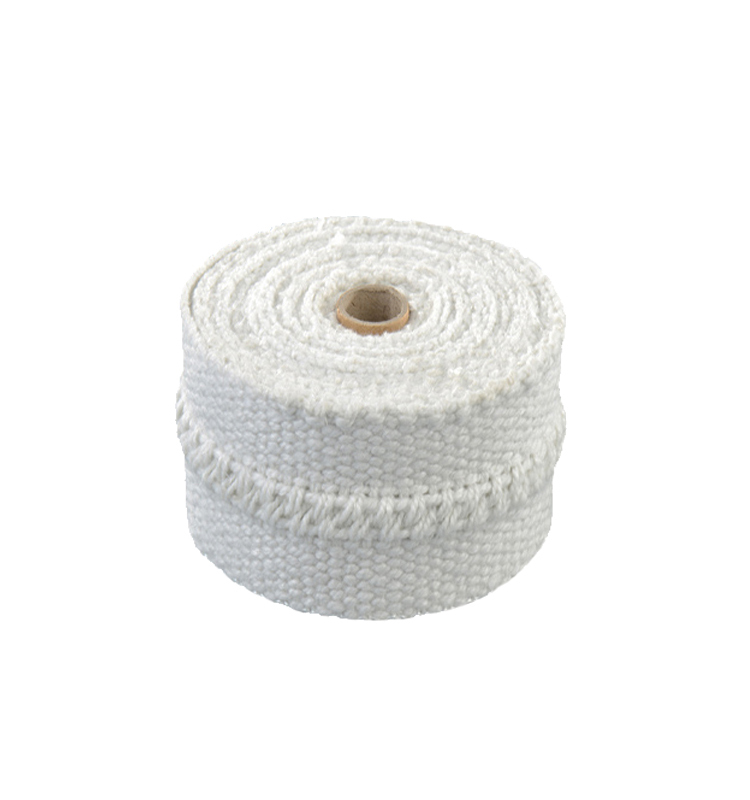

Ceramic Fiber Belt: Hitex brand ceramic fiber belt is woven from ceramic fiber yarn and treated with anti-dust. The tape is an excellent thermal insulation material and a substitute for asbestos tape. It is reinforced with glass fiber filaments or stainless steel wires (Inconel/alloy steel wire).
|
Types of |
data |
|
color |
white |
|
working temperature |
1260°C |
|
Fiber diameter |
3~5μm |
|
Heat shrinkage rate (1232°C, 24h) |
3.5% |
|
Thermal conductivity (538°C, 8pcf) |
0.130 W/m |
|
Aluminum oxide |
45~48% |
|
Ferric oxide |
0.7~1.2% |
|
Calcium Oxide & Sodium Chloride |
0.43% |
|
shooting |
< 8.5% |
|
breakdown voltage |
5kv/mm |
|
Resistance |
5x10 10Ω |
|
moisture content |
< 2% |
|
Organic Fiber Content |
< 20% |
Available Specifications:
Thickness: 2/3/4/5mm
Width: 25mm-150mm
Reinforcement: Fiberglass or stainless steel wire (Inconel).
We also have the following ceramic fiber products:
Ceramic fiber cloth:Hitex Brand Ceramic Fiber Cloth is a woven fabric made from our premium ceramic fiber yarn. The cloth is reinforced with glass fiber filaments or stainless steel wires (Inconel/alloy steel wire).
Normally, it can be used under high temperature conditions up to 1000°C, and the short-term working temperature can even reach 1260°C. What's more, it has good acid corrosion resistance, aluminum resistance,
Attack of zinc and other molten metals.

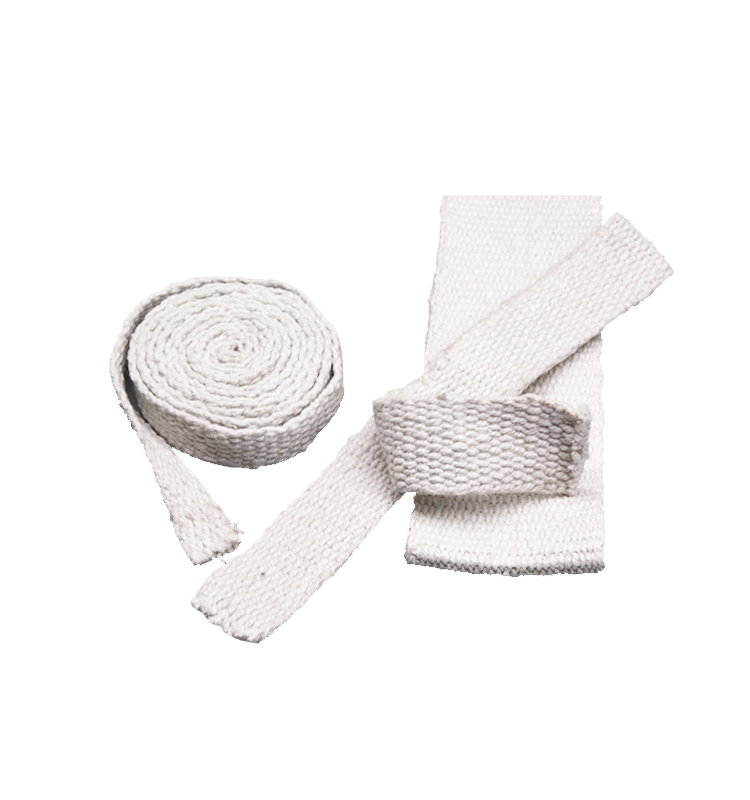

Ceramic fiber tape:Hitex brand ceramic fiber straps are woven from ceramic fiber yarns and treated to prevent dust
control. The tape is an excellent thermal insulation material and a substitute for asbestos tape. tape is
Reinforced with glass fiber filaments or stainless steel wire (Inconel/alloy steel wire).
Ceramic fiber rope:Hitex brand ceramic fiber rope includes three styles: stranded, round braided and
Square weave, made from our premium ceramic fiber yarn. They can be used for high
Temperature applications up to 1000°C. The rope is reinforced with fiberglass filaments and is optional
Stainless steel wire. It contains a certain amount of binder material and usually burns at a lower temperature
temperature, does not affect the insulating properties.
Ceramic fiber blanket:Hitex brand ceramic fiber blanket is made by dense needling
processing. The product does not contain any binders or other ingredients, nor dross
Contains content. Intensive needling process improves fiber interweaving
and anti-delamination properties and tensile strength. After 750-950 heat treatment in the production process, it has good high-temperature shrinkage.
In addition to the common features, it also has better sound insulation performance and mechanical strength,
Easy to process and install.
Ceramic Fiber Board:Hitex brand ceramic fiberboard is made of different aluminum-silicon fibers
Suitable for applications at temperatures up to 1200 ºC by vacuum forming technology. has a rigid character,
Good strength, light weight, easy to handle, ideal material for kiln, boiler pipe, chimney lining
and other thermal equipment.
Ceramic fiber cotton:Hitex brand ceramic fiberboard wool is made from high purity raw materials:
Alumina powder, high temperature grade silica sand and zircon sand are also used. ceramics
The mixture is heated in an electric furnace to temperatures in excess of 2,000 degrees Celsius, and the molten material flows
Drawn into fibers by spinning or blow molding.
Ceramic fiber tape (can replace asbestos rope) is widely used in fire prevention, heat insulation, fire prevention, sealing; metallurgy, chemical industry, ceramics, glass, refractory materials, shipbuilding, aerospace, automobile, machinery, electronics, building materials, light industry and other industries Department of friction braking, noise reduction, high temperature filtration, etc.
l Insulation and sealing of high temperature pipelines
l Cable insulation coating
l Coke oven opening seal
l Pyrolysis furnace brick wall expansion joints
l electric furnace, oven door seal, boiler
l High temperature air seal
l Flexible expansion joint connection
l Excellent heat resistance, the continuous use temperature of alloy steel wire rope can reach 1260C
l Excellent corrosion resistance to acid, oil, gas, aluminum, zinc and other non-ferrous metals
l Excellent high temperature strength and tensile strength
l Excellent electrical insulation
l Non-toxic and harmless, no adverse effects on the environment
l Excellent chemical stability and thermal stability
l Low thermal conductivity, low heat capacity, so that the product has excellent thermal insulation performance
l Resistance to external mechanical force
l Can withstand any thermal shock
l Generate no gaps between modules
Hitex offers a wide range of high temperature fabrics and textiles for the insulation, fire protection, weld and cut protection, seals and gaskets, refractory and composites industries. Technical fabrics are available in different coatings and treatments to suit extreme temperatures and conditions, among other things.
