Glass carbon electrode

Product Detail

property:Good electromechanical and thermal performance, low specific resistancePurpose:Gouging Cutting and Boring
Material:Fine grain, high density molded and extruded graphitediameter:3.2-19mm
strength:direct currentthing:carbon electrode
brand:HirokawaApparent Density (g/cm3):>1.57
length:300-500mmapplication:Gouging Cutting and Boring
Bending strength (N/㎡):>27payment terms:L/C, T/T, Western Union, MoneyGram
Types of:electrode blockResistance (μΩ.m):<19n
Packaging Details:Standard export packagingSupply capacity:1000 pieces per day
application:conductors, electrodes,End:Super fine mold forming, copper plating
place of origin; place of origin:China ShanghaiPackage:Plywood boxes
model:BC-214thermal expansion:<2.4
grade:HP (high power)port:Shanghai
origin:Chinaaspect:custom

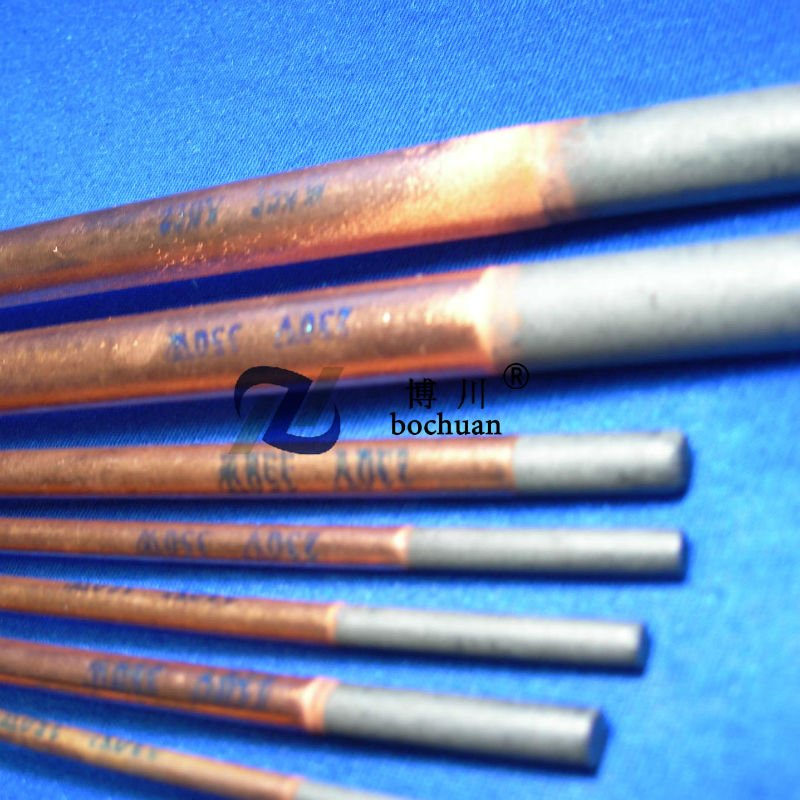

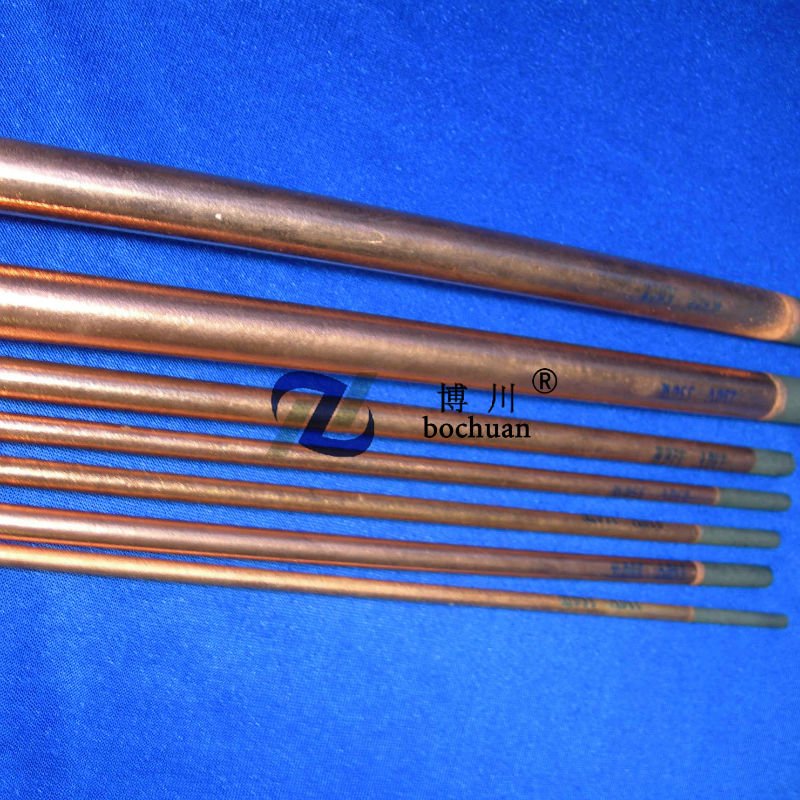

Glassy carbon electrode



Shanghai Bochuan Silicon Carbon Rod Manufacturing Co., Ltd. is a company specializing in the design, development, production and sales of various carbon rods. The carbon rods produced by Bochuan include DC copper-plated joints, flat and pointed gouging rods. Bochuan has advanced equipment and established a reliable quality control system.



This product is based on graphite, asphalt felting, hot extrusion machinery and hot plate molding

Product use: This series of products are widely used in batteries in shipbuilding, boiler and pressure vessel manufacturing, casting, steel, light industry and chemical industry.



Product performance: This product is used for cutting, digging, drilling and welding. Suitable for mild steel, cast steel, stainless steel, pure steel and other metals.



Product advantages: This product is easy to operate, has a wide range of applications, has good effects, and is economical and affordable.



instruct:

  1. The electrode must be kept in a dry environment, if it is damp, it must be dried before use.
  2. When used as a direct current, the electrode is connected to the anode and the cathode.
  3. The working air pressure is stable at 0.5-0.6Mpa.
  4. The arc between the electrode and the task is 3mm, and the electrode comes out clamped about 100mm.
  5. Electrodes and tasks must have an angle and a tangent to digging and throwing.
  6. Keep aeration during use, and operate according to the working limit.

Model

(mm)

(inch)

Current Ranger (A)



3.2x305

1/8x12'

130-180



4x305(355)

5/32x12'(14')

150-200



5x305(366)

3/16x12'(14')

200-250



6x305(355)

15/64x12'(14')

300-350



6.5x305(355)

1/4x12'(14')

320-370



7x355

9/32x14'

350-400



8x305(355)(510)

5/16x12'(14')(20')

400-450



9x305(355)

23/64x12'(14')

450-500



10x305(355)(510)

3/8x12'(14')(20')

500-550



11x305(355)(510)

7/16x12'(14')(20')

600-650



12x305(355)

15/32x12'(14')

750-850



Note: Different needs of customers can be provided, such as high-current carbon rods with different lines on the surface.
