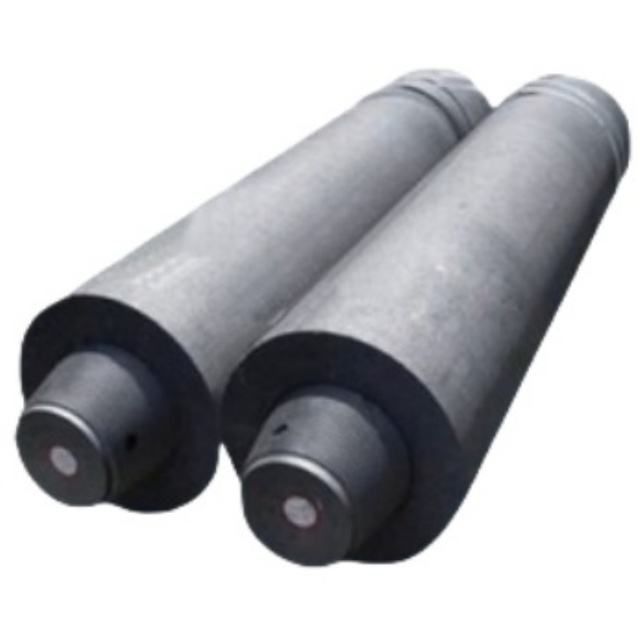

Hot Selling Graphite Electrode High Quality Graphite Electrode Low Price Graphite Electrode
-
$2100.00 / 1 - 19 pieces
$800.00 / >=20 pieces - 1 piece
- Hebei Xianglin Intelligent Technology Co., Ltd.
- Hubei, China
- Ms xiao zhang
Product Detail
| application: | Steelmaking, electric furnace LF | port: | Tianjin/Shanghai/Qingdao |
| Resistance (μΩ.m): | 6.5μΩ.m | model: | HP-240 |
| Place of origin: | Hebei china | grade: | HP (high power) |
| product name: | RP grade graphite electrode | Package preview: | |
| Thermal expansion: | 2.4 | Packaging details: | 1. Packed in plywood boxes. 2. Each piece is separated by thick foam to avoid touch and wear. 3. Pack it tightly to prevent graphite parts from moving during transportation. 4. Custom packaging. |
| type: | Electrode bolt | length: | 1800mm/2100mm |
| usage: | Smelting industry | raw material: | needle petroleum coke |
| color: | dark grey | Apparent density (g/cm3): | 1.65/cubic centimeter |
| Ash: | Maximum 0.3% | Package: | wooden box |
| Key words: | Low resistivity graphite electrode | Supply capacity: | 10,000 tons per month |
| Advantage: | Low consumption rate | nipple: | 3TPI/4TPI/4TPIL |
| brand: | Xianglin | payment terms: | L/C, Western Union, D/P, D/A, T/T, MoneyGram |
| Bending strength (N/㎡): | 10.5 MPa |
Product display
Product parameters
physical properties | RP (diameter 50-600 mm) | life value (diameter 50-600 mm) | ultra high pressure (diameter 50-600 mm) | ||
Resistance (maximum) μΩ-m | electrode | <8.0 | <7.0 | <6.0 | |
nipple | 6.5 | 5.5 | 5 | ||
Bending strength (minimum) Mpa | electrode | 11 | 12 | 12 | |
nipple | 14 | 14 | 16 | ||
Modulus of elasticity (maximum) Gpa | electrode | 9 | 12 | 12 | |
nipple | 12 | 14 | 14 | ||
Bulk density (min) g/cm3 | electrode | >1.58 | >1.65 | >1.68 | |
nipple | >1.70 | >1.72 | >1.73 | ||
CTE (maximum) x 10-6/C | electrode | 2.7 | 2.5 | 2.4 | |
nipple | 2.5 | 2.2 | 2.0 | ||
Ash content (maximum) % | electrode | <0.30 | <0.30 | <0.20 | |
application
Uses of graphite electrodes
(1) Used for electric arc furnace steelmaking; (2) Electric furnace used for mineral heating;
(3) Graphitization furnaces, glass melting furnaces that produce graphite products, and electric furnaces that produce silicon carbide are all resistance furnaces;
(4) Used to prepare shaped graphite products.
Manufacturing Technology
Product packaging
In order to better ensure the safety of your goods, we will provide professional, environmentally friendly, convenient and efficient packaging services.
