Custom Induction Furnace Clay Pottery High Purity Fusion Graphite Pottery

Product Detail

Supply capacity:20000 pieces per monthKey words:Isostatic graphite mold
high:custom madeplace of origin; place of origin:Shandong China
Top Diameter:custom madeBottom diameter:custom made
usage:welding processproduct name:Custom Graphite Molds
Size and shape:custom processingpayment terms:L/C, Western Union, D/P, D/A, T/T, MoneyGram
brand:data storage networkGrain Size:0.02mm-4mm
Material:High-purity graphite materialapplication:Metallurgical industry
Packaging Details:Plywood enclosure or according to customer requirements.port:Shanghai
work:High puritytype:isostatic pressing
Advantage:lubricatingmodel:Graphite mold DSN1000
Ash content:0.2%-0.3%color:Black
Bending strength:15 - 40MPa
About Damori

Pyrolytic graphite, vapor chamber, silica gel pad, die-cutting, special graphite, ceramic filter membrane and other professional solution providers.www.thermalgraphite.com

* Serving telecommunications, industrial consumer electronics and medical, new energy vehicles, machinery, environmental engineering.
* Applied in flexible circuit board, backlight module, touch panel, mechanical hardware, finished product assembly and environmental protection engineering industry

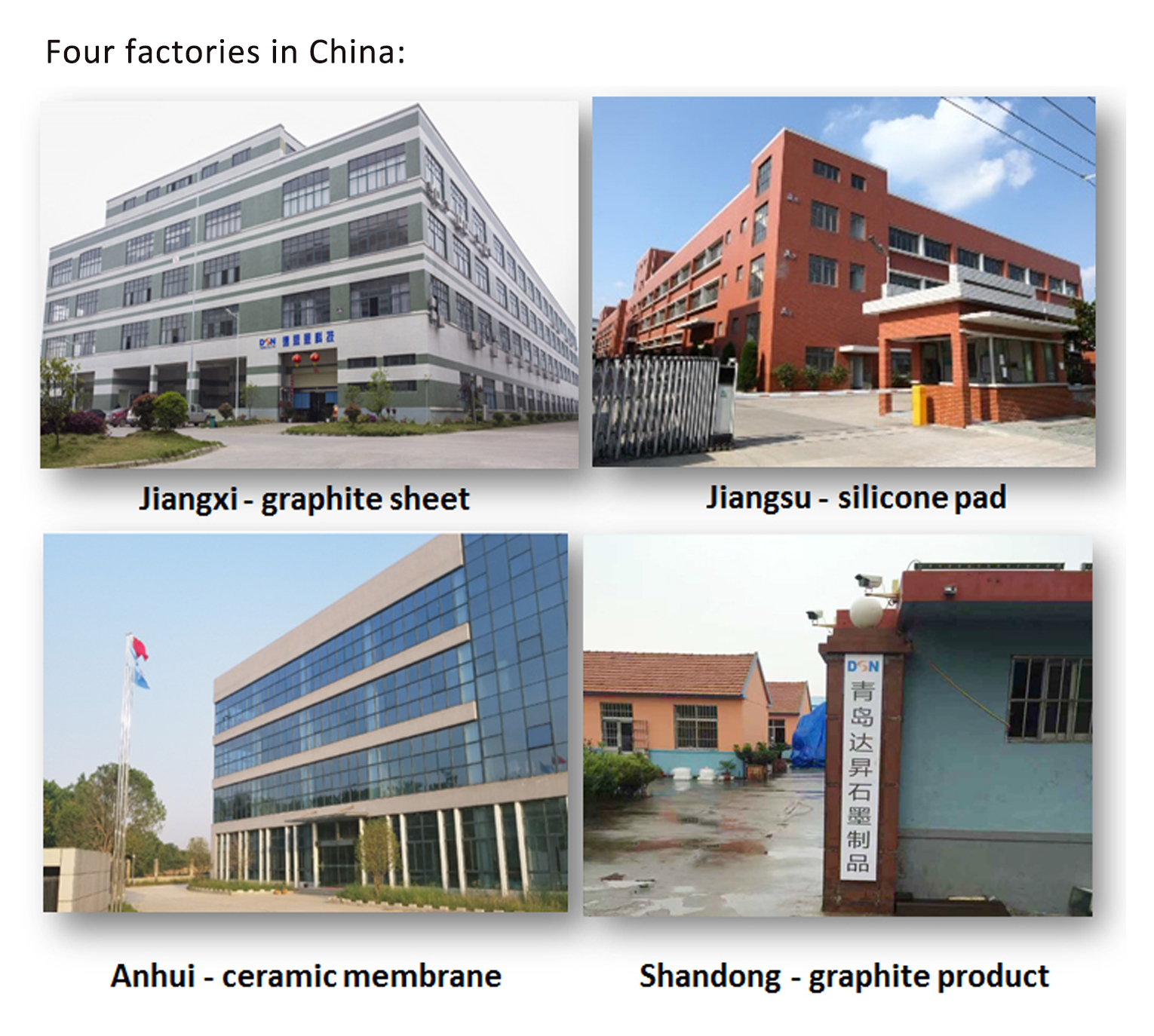

* Four factories: Jiangsu, Jiangxi, Anhui and Shandong.
* Certificate: ISO9001, IATF16949, ISO14001, UL...


Dasen is a high-tech enterprise engaged in the R&D, production and sales of pyrolytic graphite, special graphite, die-cutting, silicone mat and flat ceramic membrane. The pyrolytic graphite factory is in Jiangxi; the specialty graphite is in Shandong; the silica gel pad factory is in Jiangsu, and the ceramic membrane factory is in Anhui. The sales center is in Suzhou, Jiangsu.

Special Graphite

Specialty carbon graphite materials include mesocrystalline graphite, fine crystalline graphite and ultrafine crystalline graphite.
Specialty carbon products (carbon graphite products) will realize the broad potential of carbon. They are high-performance products that support the development of key industries such as electronics, machinery, and metallurgy. They are also used in cutting-edge scientific fields such as the semiconductor aviation and aerospace industry.

Characteristics of graphite products:

* High temperature resistance, melting point 3850±50℃, boiling point 4250.
* Low ash content, high purity, avoiding pollution to your products.
* Graphite material is easy to process into any shape you like.
* High mechanical strength
* Good sliding performance
* High thermal conductivity
* High thermal shock resistance and chemical resistance
* food safety
* low wettability
* High corrosion resistance and oxidation resistance
* Good electrical conductivity
* High density and high mechanical strength
* Proper conductivity

Graphite material inspection report
Test items
Material
test results)
Material
test results)
Material
test results)
Density (g/cm3)
isostatic pressing
graphite
≥1.85
0.8mm particles
≥1.72
2-4mm particles
≥1.60
Resistance (μΩ-m)
11-13
≤9
≤9
Compressive strength (Mpa)
≥107
≥30
≥25
Bending strength (Mpa)
≥40
≥16
≥13
Thermal conductivity (W/mK)
150
135
112
Shore hardness
≥64
≥40
≥25
Granularity (mesh)
1000
20
4-10
Ash content (%)
≤0.05
≤0.2
≤0.8
Carbon content (%)
99.995
>99.5
>99.2
Comparative analysis of three materials
Through the analysis and comparison of the three materials, the coarser the particle size, the lower the density. And the hardness, compressive resistance, bending resistance and carbon content will all be reduced.

Precautions for handling graphite crucible:


A crucible is a container used to hold molten metal in a furnace, and it needs to withstand the extreme temperatures encountered when melting the metal. The crucible material must have a melting point much higher than that of the metal being melted, and must have good strength even at white heat.
1.Crucibles should be stored dry
2.Handle the crucible lightly
3.Heat the crucible in a desiccator or near a furnace. The heating temperature should reach 500°C.
4.The crucible should be placed flat under the furnace.
5.When putting metal into the crucible, the capacity of the crucible should prevail. If the crucible is too full, it will be damaged by expansion.
6.The fixture needs to be the same shape as the crucible. Avoid damaging the crucible under pressure of the concentrate.
7.Gently clean the crucible periodically.
8.The crucible should be placed in the center of the furnace, leaving a certain distance between the crucible and the furnace.
9.Turning the crucible once a week will help prolong its life.
10.The flame should not come into direct contact with the crucible.
11.24 hours of continuous use, the crucible has a longer service life.
When the furnace is shut down, the molten soup in the crucible should be cleaned to prevent the molten soup from solidifying and expanding when reheated, affecting the service life of the crucible, or even bursting.
12.The crucible for smelting aluminum alloy is recommended for about 2 months (once a week for melting copper alloy), hang it out to check whether there is any problem on the surface, clean the furnace, and turn the crucible. Such operations will help prolong the use time. The service life of the crucible.
production workshop

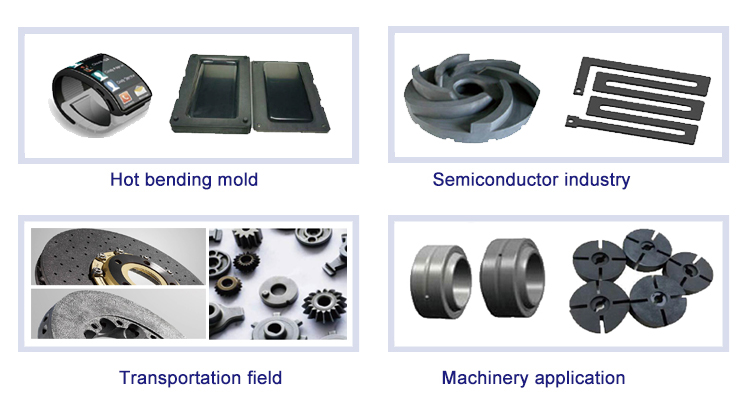

Applications
product name
industry
application
Crucible, boat, dish, etc.
Melting, refining and analysis
Plates, moulds, ingot trays, etc.






metallurgy
EDM graphite electrodes, semiconductor manufacturing, steel and non-ferrous metal manufacturing, continuous casting, metallurgical presses
graphite roller etc.
Heat treatment of steel plate in furnace
Conduit, Skateboard, etc.
Aluminum profile
graphite tube
Masonry furnace and other heat-resistant materials
graphite block
Masonry furnace and other heat-resistant materials
Chemical Equipment




Chemical
Heat exchangers, reaction towers, distillation towers, absorption equipment, centrifugal pumps, etc.
electrolytic plate
Salt solutions and baked molten salt electrolytes
electrolytic mercury
Sodium chloride electrolyte
ground anode
Electrical anti-corrosion
motor brush

Electricity
commutator, slip ring
Current collector
Skates, slides, trolleys
Current collector
switch, relay
Mercury Ferry and Tubes
electronic product
Mercury rectifier anode, grid, repeller, ignition electrode and anode, grid
Graphite bearings

mechanical
High temperature resistant sliding bearings
sealing element
Seal ring, stuffing box seal, stuffing seal
product elements
Aircraft and Vehicle Braking
nuclear graphite
nuclear power
Deceleration materials, reflective materials, shielding materials, nuclear fuel, support devices, etc.
Quality Control

Quality policy

This guideline aims to satisfy our customers by initiating renewed quality management and adhering to the highest demands of "Quality First", ultimately achieving elite projects.

Quality goals

Strictly follow the quality control procedures, strengthen the avoidance of common quality problems, provide customers with products that fully comply with relevant contracts and standards, ensure the effective operation of quality assurance and quality control systems, and achieve zero quality accidents to achieve good project construction quality.

Quality assurance system and functions

Establish a quality assurance and effective quality control system before construction to ensure the realization of construction quality goals.

Job Responsibilities

Project Manager Responsibilities

R & D strength

Dasen has a research and development team2 pH value D.leading over20High-end R&D technicians.Dasen also has a sound management process and advanced development tools.

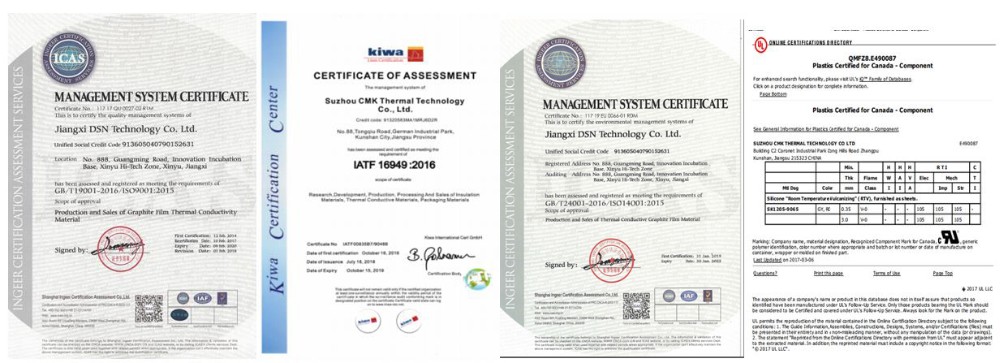

Certificate

ISO9001-2015, ISO14001-2015, IATF16949-2016, UL

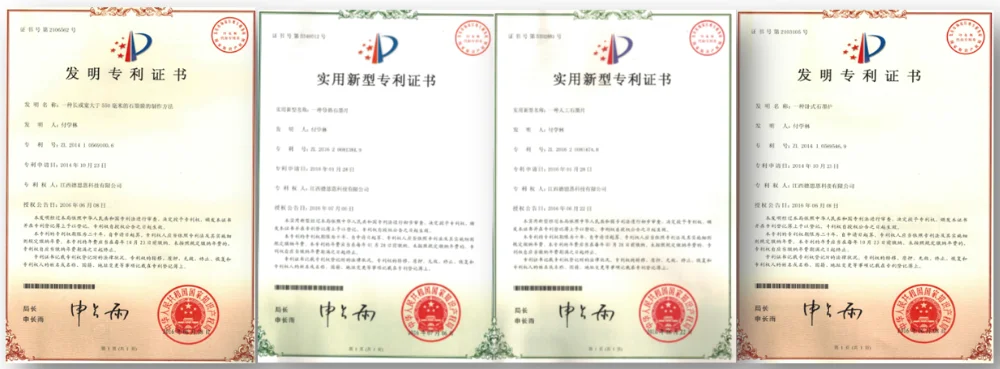

Obtained more than 30 invention patents and utility model patents, and won: "Science and Technology Innovation Enterprise", "Jiangxi Special New Enterprise", "National High-tech Enterprise" and other honors.

company culture

DSN persistsTai Chi CultureRespect the society, love people, fulfill social responsibilities, promote the environment and development, and realize the common growth of society, enterprises and employees.
When the sky is healthy, a gentleman must strive for self-improvement. DSN will strive to forge ahead and create greater glories.

FAQ

Q1. Can you introduce your main products?
certainly. We mainly produce thermal graphite sheet, thermal silica gel sheet and structural ceramics. For graphite specialty products, we can provide custom shapes according to the specific needs of customers. Materials include all grades of extruded/molded/isostatic graphite.

Q2. What is your MOQ?
1 piece (graphite block/boat/plate/rod/round).

Q3. Can you provide free samples?
Yes, usually we can provide small product samples FOC, but do not pay the express fee.
However, if the sample is expensive, such as large size, Omori has to charge the basic cost of the sample.

Q4. Do you accept OEM or ODM orders?
Yes, we have.


Q5. How about your delivery time?
Usually 15 to 30 days after payment, or 7-10 days if we have raw materials in stock.

Q6. Do you test your goods before delivery?
Yes, we test before delivery.

Q7. How do you maintain long-term business relationship?
1. Good quality and competitive price to ensure mutual benefits;
2. Quick reply and sincere service.
