Acid-resistant silicon carbide graphite crucible graphite casting silicon carbide crucible silicon carbide graphite crucible

Product Detail

Classification:Silicon carbide/clay combined/pure graphite crucibleCarbon content:≥41.46%
size:According to drawings or customer requirementsCustoms code:69031000
work:silicon carbidesample:usable
Refractory materials:≥1635℃Bottom diameter:According to drawings or customer requirements
Top diameter:According to drawings or customer requirementspayment terms:L/C, Western Union, T/T, MoneyGram
Bulk density:≥1.71g/cm3model:Ordinary/with spout/U-shaped crucible
Supply capacity:60 tons per monthPackage preview:
port:Qingdao/ShanghaiPlace of origin:Shandong Province, China
brand:RobertSilicon carbide content:≥24%
Porosity:≤32%application:Chemical metallurgy
color:Blackhigh:According to drawings or customer requirements
type:refractory
product name

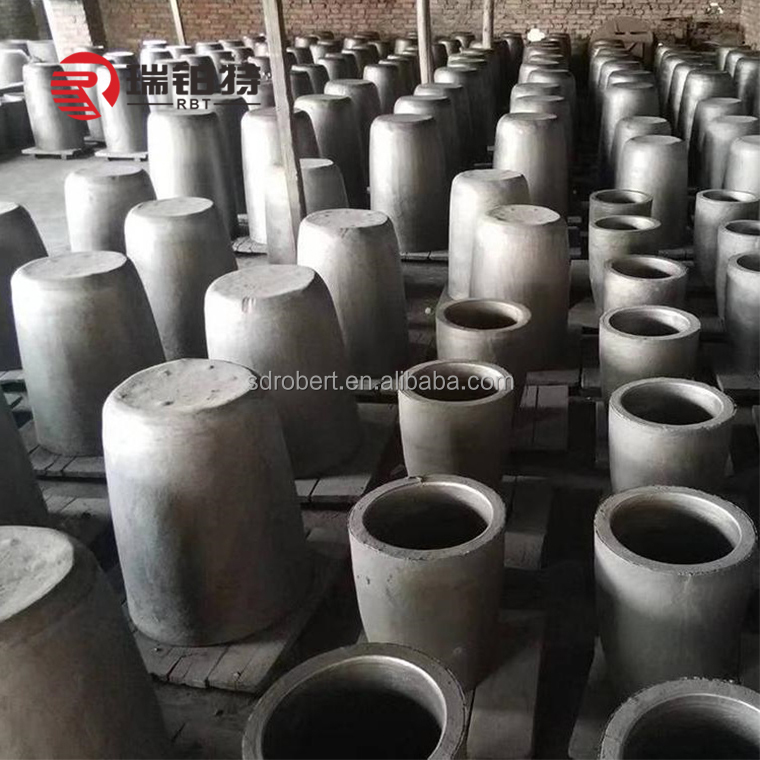

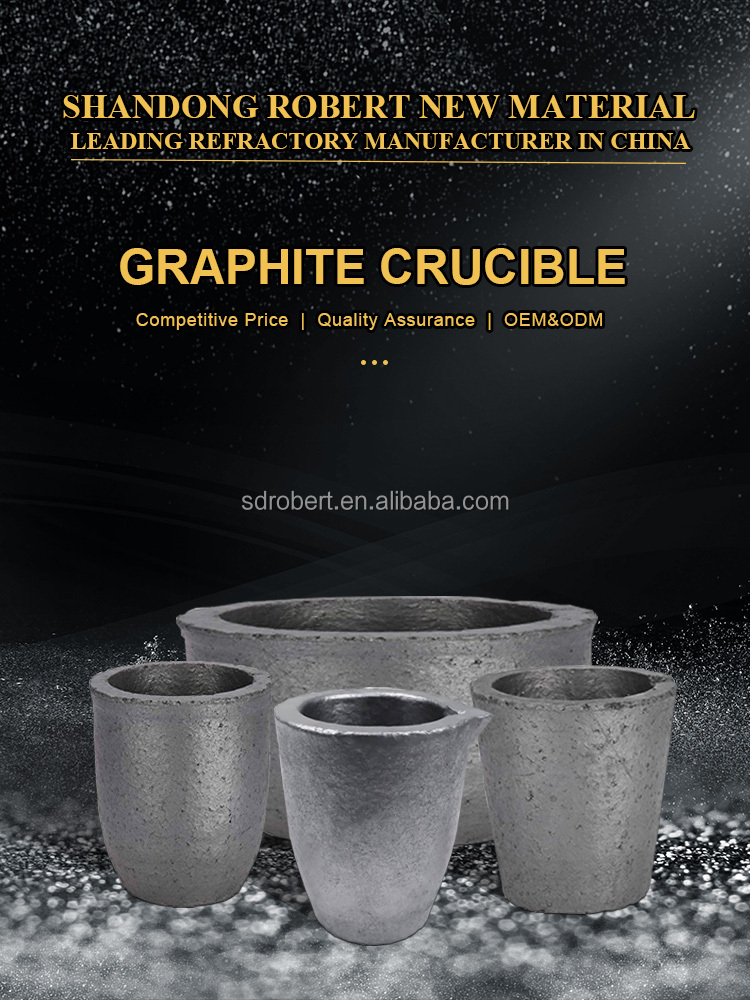

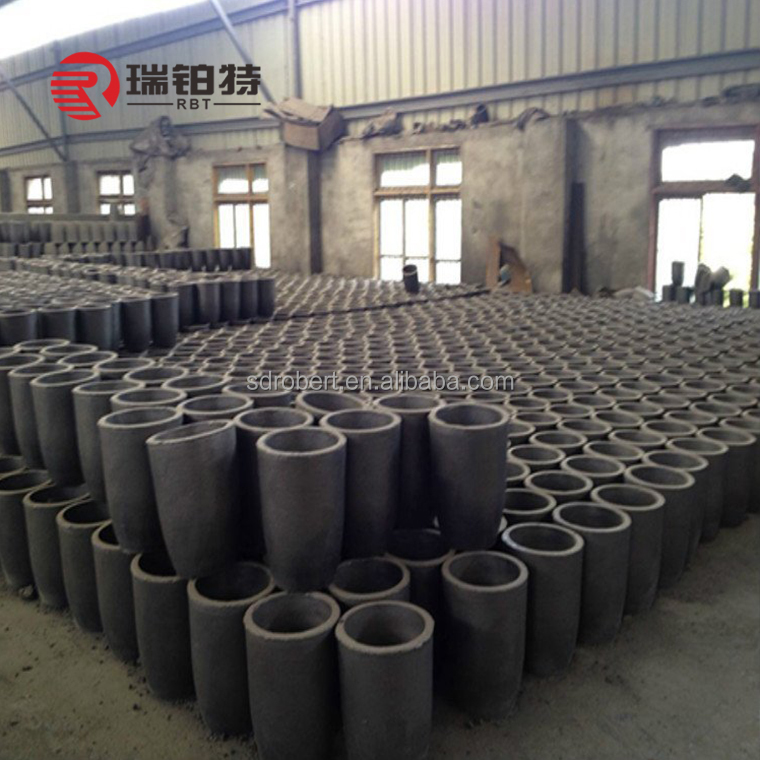

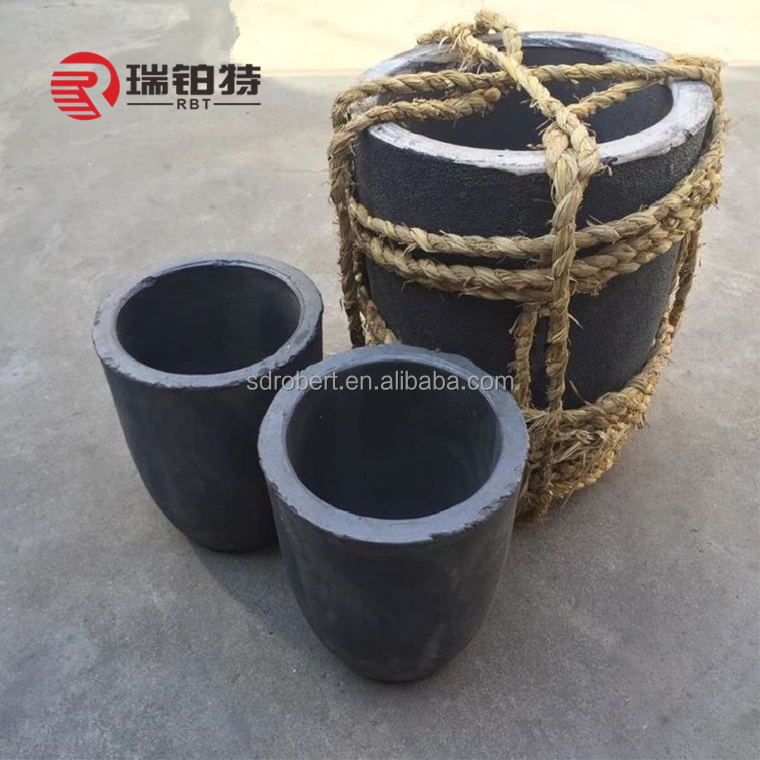

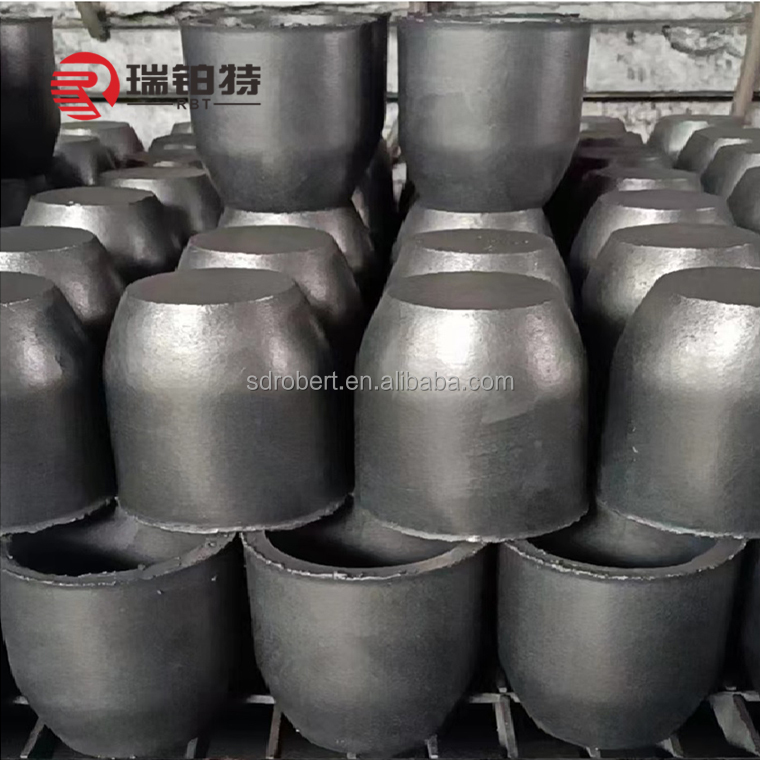

Graphite crucible
describe
Graphite crucible, also known as molten copper ladle, molten copper, etc., refers to a type of crucible made of graphite, clay, silica, and wax stone as raw materials.
Classification
Silicon carbide/clay bonded/pure
Main ingredients
Graphite, silicon carbide, silica, refractory clay, bitumen and tar
size
Regular sizes, special sizes and OEM services are also available!
shape
Conventional crucibles, nozzle crucibles, U-shaped crucibles (oval crucibles), and OEM services are provided!
feature
High temperature resistance; strong thermal conductivity; good corrosion resistance; long service life
Regular CLucipur
Spray Crucible
Spray Crucible
U-shaped crucible (oval crucible)
Crucible combination
Crucible combination
Crucible combination
Crucible combination
Performance index/unit
Index value
Index value
Index value
Bulk density g/cm3
1.82
1.85
1.90
ResistivityμΩm
11~13
11~13
8~9
Thermal conductivity (100℃)W/mk
110~120
100~120
130~140
Thermal expansion coefficient
(Room temperature-600℃)10-6/℃
5.8
5.9
4.8
Shore hardness HSD
65
68
53
Bending strengthMpa
51
62
55
Compressive strengthMpa
115
135
95
Elastic modulus Gpa
12
12
12
Porosity%
12
12
11
Ash PPM
500
500
500
Purified Ash PPM
50
50
50
Particle size μm
8~10
7
8~10
1. During high-temperature use, it has a small thermal expansion coefficient, has certain adaptability, and can quickly cool and heat. It has strong corrosion resistance to acidic and alkaline solutions, has excellent chemical stability, and does not participate in any chemical reactions during the smelting process.
2. The inner wall of the graphite crucible is smooth, and the molten metal is not easy to leak and adhere to the inner wall of the crucible, so that the molten metal has good fluidity and castability, and is suitable for various mold castings.
3. Because graphite crucible has the above excellent characteristics, soMainly used for smelting copper, brass, gold, silver, zinc, lead and other non-ferrous metals and their alloys.
