Glass Fiber Chopped Strand Mat/Mat
-
$0.95 / 1 - 99 bags
$0.90 / 100 - 999 bags
$0.89 / >=1000 bags - 1 bag
- Shandong Runshneg Environment Protection Material Co., Ltd.
- Shandong, China
- Mr Ren
Product Detail
| technology: | Chopped Fiberglass Mat (CSM) | payment terms: | L/C, T/T |
| Package preview: | Softness: | soft | |
| product name: | Alkali-free glass fiber chopped strand mat | Package: | Plastic film+carton+pallet |

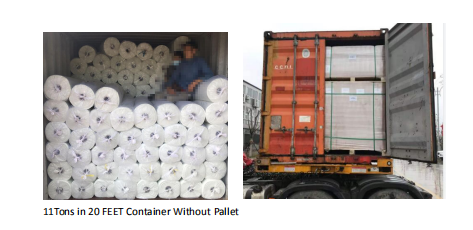

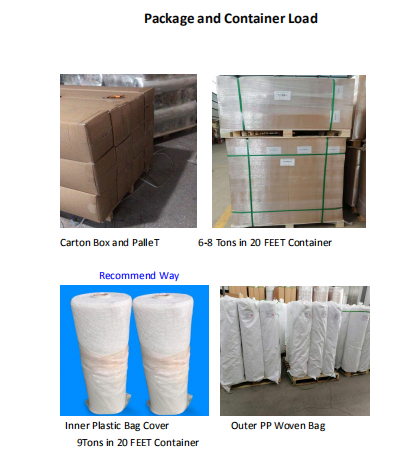

| Packaging Details: | Film and PP bag packing, carton | brand: | Runsheng |
| Weight per roll: | 42-50 kg | Binder Type: | lotion/powder |
| Glass type: | electronic glass | feature: | easy to use |
| model: | E300GSM | Fiberglass Type: | Alkali free glass |
| place of origin; place of origin: | China | Processing services: | Bending, punching, cutting, OEM |
| length: | 10m-40m-100 | color: | white |
| Mat weight ratio: | 100gsm-300gsm-800gsm.OEM | Mat Type: | Continuous Filament Mat |
| width: | 1040/1270mm |
Glass fiber chopped strand mats in different weight ratios for resin
introduce:

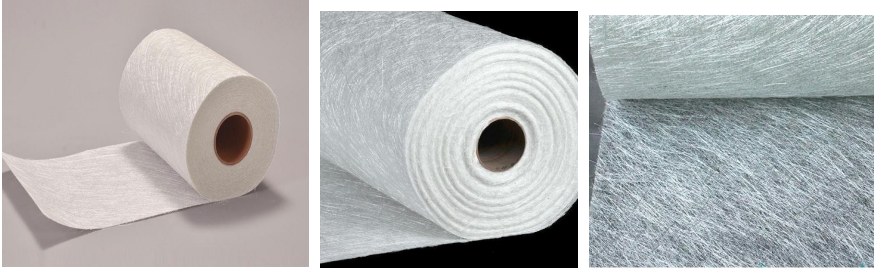

Fiberglass Chopped Strand Mat, or CSM for short, is a non-woven fiberglass fabric. It is made from randomly distributed chopped strands. The short strands are combined with a powder or emulsion binder to form the mat. The finished product can be used with polyester resins for rapid thickening for part molding and between layers of fabric for building molds.
Like glass fiber composite mats and glass fiber needle felts, chopped strand mats are well suited for hand lay-up and filament winding, compression molding and continuous lamination processes. Typical end use applications includeVarious panels, boats, fiberglass roof panels, auto parts, bathroom fixtures and cooling towers.
· Can be used alone or combined with fiberglass fabric.
· High transparency, high mold similarity.
· Uniform thickness and good wettability.
· Good flexibility for different structures.
· Good resin flow and impregnation ability.
· Excellent masking and degassing properties.
|

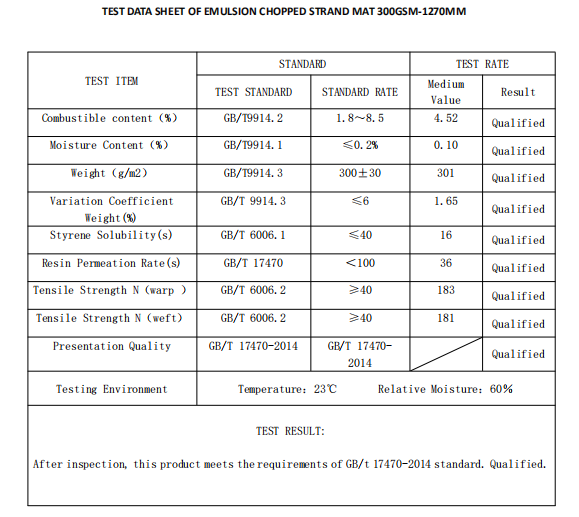

specification |
weight (grams/square meter) |
Tensile breaking force≥ (N/150mm) |
resin permeability |
roll length (Meter)
|
Roll weight (Kilogram) |
binder type |
Width (cm) |
|
MC225 |
225+15 |
30 |
<180 |
115 |
30 |
Powder/Emulsion |
1040 |
|
MC300 |
300+20 |
40 |
<180 |
96 |
30 |
Powder/Emulsion |
1040 |
|
MC450 |
450+30 |
60 |
<180 |
64 |
30 |
Powder/Emulsion |
1040 |

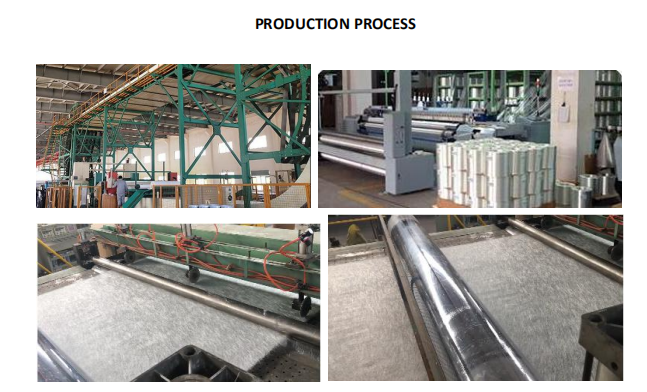

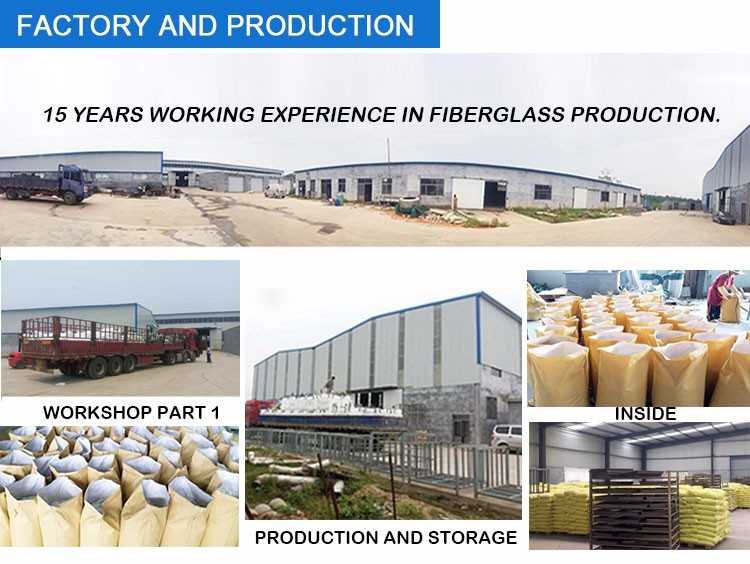

15 years experience in glass fiber production
National quality standard production
application
·process
· Molding compression.
· Pultrusion.
· Hand paste.
·RTM.
· Vacuum and filament winding.
·End products
· Structural panels.
· Small boats.
· Kayaks, canoes and split boxes.
· FRP roof panels.
· Auto parts.
·Sanitary equipment.
·model.
· Cooling Tower.
·Anti-corrosion pipeline.

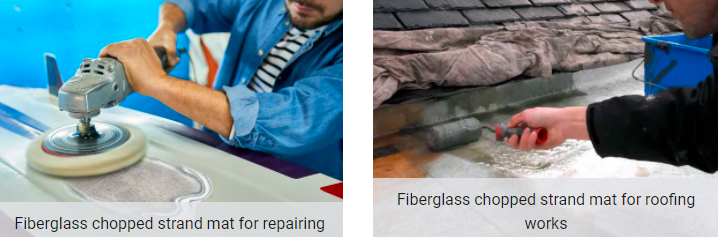

· Repair of fiberglass components.
Marketing: Market tested.
Sales and export in China, Asia region, Middle East, Europe, etc.
