Factory Direct Supply Rutile TiO2 Single Crystal Substrate

Product Detail

Supply capacity:1000 pieces per monthChemical Abstracts Service number:------------------
appearance:crystalIF:Titanium dioxide
brand:Gristalport:Shanghai
Place of origin:Anhui, ChinaPackaging details:super clean
EINECS number:----------------Grade standards:Electronic grade, industrial grade
purity:99.99%Other names:rutile crystal
payment terms:L/C, Western Union, D/A, T/Tmodel:GS-C038
application:matrix



product name: Rutile (TiO2) crystal substrate
Product Description: Rutile (TiO2) has large birefringence and refractive index. It is a very good material for beam splitting prism devices such as optical isolators and polarizing beam splitters. Compared with YVO4, TiO2 crystal has better physical and chemical stability. nature, our high-quality single crystal TiO2 rods and polished components are widely used in optical isolators and special prisms.
Technical Parameters:
Crystal structure
Tetragonal crystal system
a= 4.5936 Angstroms
c= 2.9582 Angstroms
Growth method
Fuzzy
density
4.26 g/cm3
melting point
1840℃
hardness
7 (Morn)
Specific heat capacity
0.17 (25 oC) calibration value/(gram)
Linear expansion coefficient
a: 7.14x10-6 c: 9.19x10-6
refractive index
n0 = 2.47 ne = 2.73 l = 1.3 mm
Ingot size
~25mm diameter x 100mm length (conical)
surface polishing
Polished on one side or polished on both sides
Specification:

Typical dimensions: 2.6x2.6x10mm; 4x4x10mm; 10x10x0.5mm;

Dimensions +/-0.02mm; Flatness

Parallelism<15"; verticality<15"

Note: Can be customized according to special orientation and size.

standard packaging: Class 1000 clean room, Class 100 clean bag or single box packaging





contact us

FAQ

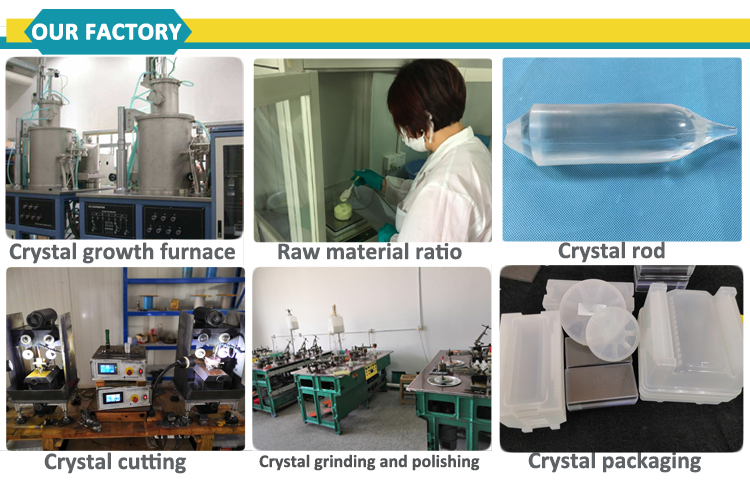

Q: Are you a trading company or a manufacturer?

A: We are a factory.

Q: How long is your delivery time?

A: If the goods are in stock, it usually takes 3-5 days. Or if the goods are not in stock, it is 7-10 days, depending on the quantity.

Q: Do you provide samples? Is it free or extra?

A: Yes, we can provide samples for free without paying the shipping cost.

Q: What are your payment terms?

A: Payment <=5000USD, 100% in advance. Payment >= 5000 USD, 50% T/T in advance, balance before shipment.
