high temperature resistant graphite jar price
- $4.00 / >=10 pieces
- 10 pieces
- Gongyi Rongxin Carbon Products Co., Ltd.
- Henan, China
- Mr Thomas Yang
Product Detail
| Origin: | Henan, China | Bottom diameter: | custom made |
| Supply capacity: | 80000 tons/year | type: | isostatic pressing |
| port: | Qingdao, Lianyungang, Tianjin | Top Diameter: | custom size |
| work: | High purity | Packaging Details: | Packed in wooden box with steel belt |
| brand: | Rongxing | high: | custom made |
| Material: | High-purity graphite material | application: | Melting iron, silver, gold and other metals |
| payment terms: | L/C, Western Union, D/P, D/A, T/T, MoneyGram |
Product Description

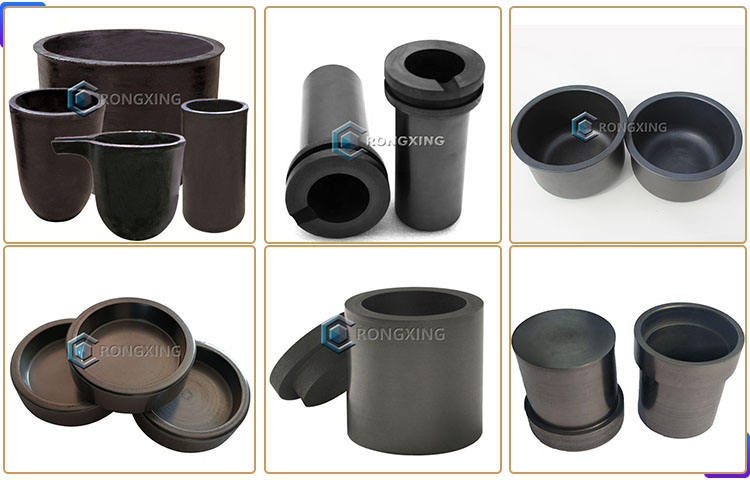

ourGraphite crucible:
>High purity graphite crucible
>Isostatic graphite crucible
>High purity graphite crucible
>Isostatic graphite crucible

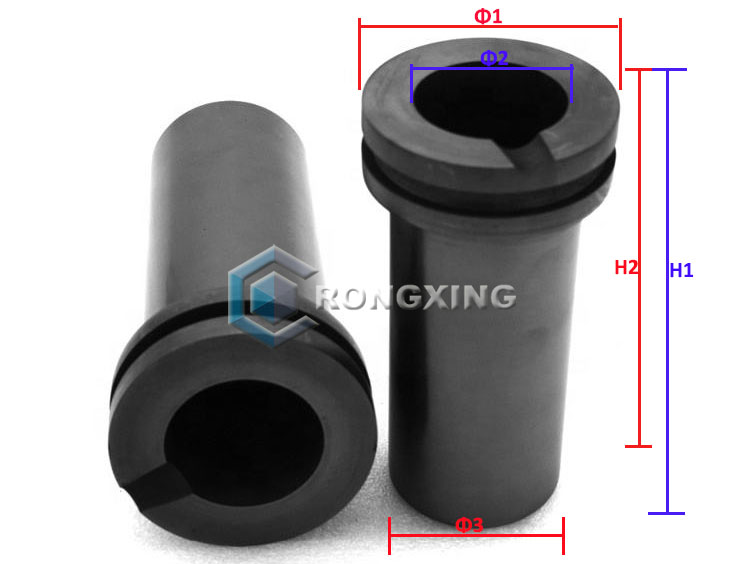

| thing | Single ring graphite crucible (mm) | ||||
| Φ1 | Φ2 | Φ3 | H1 | Hydrogen 2 | |
| 1 kg | 57 | 35 | 47 | 88 | 79 |
| 2KG | 65 | 42 | 57 | 107 | 97 |
| 3 kg | 85 | 61 | 75 | 105 | 95 |
| 5 kg | 97 | 67 | 86 | 132 | 120 |
| 12 kg | 150 | 96 | 126 | 210 | 191 |
| thing | Double ring graphite crucible (mm) | ||||
| 1 kg | 65 | 38 | 50 | 115 | 125 |
| 2KG | 72 | 44 | 55 | 140 | 155 |
| 3 kg | 75 | 50 | 60 | 150 | 170 |
| 4 kg | 90 | 60 | 76 | 115 | 131 |
| 5 kg | 92 | 61 | 78 | 125 | 150 |
|
Complete technical information, please contact me for(customizable) |
|||||
Customization: shape, size (according to drawing)
howChoose the right graphite crucible and get a quick quote?
1. Parameter requirements
A. Please provide us with your drawing.
B. Give us the dimensions (diameter, inner diameter, height and thickness
2. Technical requirements
Such as graphite density, processing technology (whether polishing is required), and other special designs you want.
3. Quotation
4. Send samples for testing
Product advantages:
1. Raw materials: high-purity isostatic graphite
Oxidation resistance, high temperature resistance, long service life
Good conductivity, fast heating, energy saving and environmental protection
Good purification effect
2. High bulk density and low porosity, which can resist the erosion of molten aluminum and its gas particles.
3. Finishing of graphite crucible. Polished mirror finish and precise dimensions.
application:
1. Non-ferrous metal smelting, such as aluminum, gold, silver, copper, precious metals, etc.
2. Glass smelting
howChoose the right graphite crucible and get a quick quote?
1. Parameter requirements
A. Please provide us with your drawing.
B. Give us the dimensions (diameter, inner diameter, height and thickness
2. Technical requirements
Such as graphite density, processing technology (whether polishing is required), and other special designs you want.
3. Quotation
4. Send samples for testing
Product advantages:
1. Raw materials: high-purity isostatic graphite
Oxidation resistance, high temperature resistance, long service life
Good conductivity, fast heating, energy saving and environmental protection
Good purification effect
2. High bulk density and low porosity, which can resist the erosion of molten aluminum and its gas particles.
3. Finishing of graphite crucible. Polished mirror finish and precise dimensions.
application:
1. Non-ferrous metal smelting, such as aluminum, gold, silver, copper, precious metals, etc.
2. Glass smelting
