high purity graphite for melting gold and silver high temperature resistant mold gold bar graphite mold boat mold

Product Detail

type:high strengthCarbon content:99.99%
product name:Graphite crucibleapplication:molten metal
Supply capacity:1000 tons per monthwork:High purity
density:1.86brand:Jincheng
port:Qingdaopayment terms:L/C, Western Union, T/T
Top Diameter:customOrigin:Henan, China
high:custom madeMaximum temperature:2000℃
Bottom diameter:custom

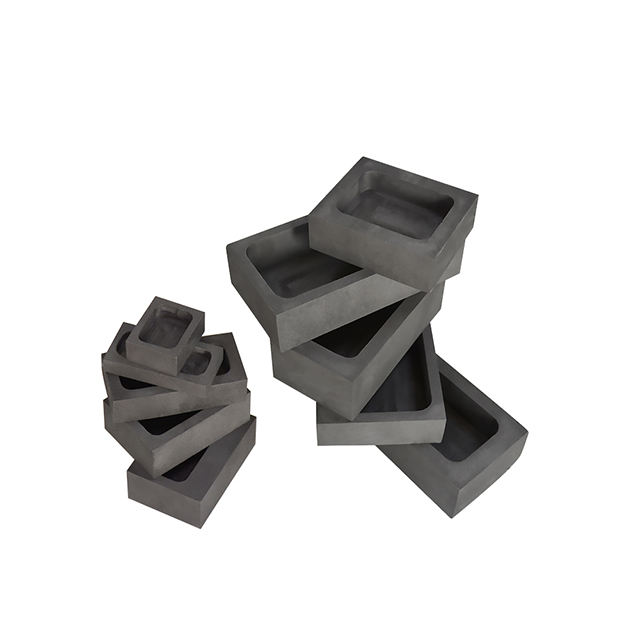

Heat resistant gold ingot mold graphite boat crucible





number Maximum capacity Dimensions (mm) capacity
the gold silver External Internal
1 15 grams 8 grams 24*15*9.2 18*9*6.2 0.9ml
2 25 grams 12 grams 24*22*12 18*16*6.5 1.3ml
3 40 grams 19 grams 47.5*24*8 40*15*4 2.1 ml
4 50 grams 26 grams 30*24*12 24*18*8 2.5ml
5 100 g 52 grams 55*37*20 45*14*10 5ml
6 150 grams 84 grams 55*37*20 45*24*10 8 ml
7 190 grams 90 grams 60*30*15 50*20*10 10ml
8 280 grams 100 g 60*50*20 45*35*10 10ml
9 300 grams 150 grams 70*57*20 50*37*10 15ml
10 500 g 250 grams 70*67*26 50*47*16 37ml
11 650 grams 315 grams 100*30*30 90*18*22 35ml
12 660 grams 315 grams 85*45*30 65*30*20 35ml
13 1000 grams 535 grams 120*40*30 100*25*24 51ml
14 1000 grams 535 grams 100*50*25 90*40*20 60ml
15 1100 grams 585 grams 90*60*20 80*50*17 65ml
16 1200 grams 585 grams 125*50*30 105*35*20 65ml
number 17 1400 grams 675 grams 135*42*32 115*32*22 75ml
18 2000 grams 1050 grams 160*50*38 140*30*28 105ml
