China high quality best price graphite electrode edm uhp 150 X 1800mm
- $1655.00 / >=25 pieces
- 25 pieces
- Hebei Qinyuan New Material Technology Co., Ltd.
- Hebei, China
- Mr qinyuan tech
Product Detail
| Apparent Density (g/cm3): | 1.66 | Bending strength (N/㎡): | 20 |
| port: | Tianjin Port, China | Package preview: | |
| raw material: | needle petroleum coke | grade: | Ultra High Power, UHP (Ultra High Power) |
| Nipple Type: | 3TPI 4TPI 3TPIL 4TPIL | Packaging Details: | foam plastic+wooden pallet+steel belt |
| Young's modulus: | GPA 22 | Revolt: | 4.5 |
| Origin: | Hebei china | application: | for steelmaking |
| thermal expansion: | 1.2 | Bending strength: | 20 |
| length: | 1600mm - 2800mm | Bulk density: | 1.66 |
| Thermal expansion coefficient: | 1.2-1.4 | Resistance (μΩ.m): | 4.5 |
| type: | Electrode bolt | Material: | needle petroleum coke |
| payment terms: | L/C, T/T | Ash: | 0.3% max |
| Supply capacity: | 5000 metric tons per month | model: | UHV-150mm |
| brand: | Molong |
Product Description
China high quality and best price EDM graphite electrode uhp 150 X 1800mm
1. Graphite electrode size:
| RP / HP / SHP / UHP graphite electrodes | ||||||
| Electrode standard size | ||||||
| Specifications (inches) | Allowable diameter (mm) | Allowable length (mm) | ||||
|
|
Nominal diameter | maximum | minimum value | Nominal length | maximum | minimum value |
| 6 | 150 | 154 | 151 | 1600 | 1700 | 1500 |
| 1800 | 1875 | 1700 | ||||
| 8 | 200 | 205 | 200 | 1600 | 1700 | 1500 |
| 1800 | 1875 | 1700 | ||||
| 9 | 225 | 230 | 225 | 1600 | 1700 | 1500 |
| 1800 | 1875 | 1700 | ||||
| 10 | 250 | 256 | 251 | 1600 | 1700 | 1500 |
| 1800 | 1875 | 1700 | ||||
| 12 | 300 | 307 | 302 | 1800 | 1875 | 1700 |
| 14 | 350 | 357 | 352 | 1600 | 1700 | 1500 |
| 1800 | 1875 | 1700 | ||||
| 16 | 400 | 409 | 403 | 1600 | 1500 | 1500 |
| 1800 | 1875 | 1700 | ||||
| 2100 | 2175 | 1975 | ||||
| 18 | 450 | 460 | 454 | 1800 | 1875 | 1700 |
| 2100 | 2175 | 1975 | ||||
| 2400 | 2475 | 2275 | ||||
| 20 | 500 | 511 | 505 | 1800 | 1875 | 1700 |
| 2100 | 2175 | 1975 | ||||
| 2400 | 2475 | 2275 | ||||
| twenty two | 550 | 562 | 556 | 2100 | 2175 | 1975 |
| 2400 | 2475 | 2275 | ||||
| twenty four | 600 | 613 | 607 | 2100 | 2175 | 1975 |
| 2400 | 2475 | 2275 | ||||
| 2800 | 2850 | 2550 | ||||
| 28 | 700 | 714 | 708 | 2400 | 2475 | 2275 |
| 2800 | 2850 | 2550 | ||||
2. Graphite electrode technology:
| Model | echo | life value | ultra high pressure | |
|
resist μΩm(Maximum value) |
electrode | 7.5 | 6.5 | 5.0 |
| nipple | 6.0 | 5.0 | 3.6 | |
|
Bulk density g/cm3 (minimum value) |
electrode | 1.53 | 1.62 | 1.67 |
| nipple | 1.69 | 1.73 | 1.75 | |
|
Bending strength Mpa(Min) |
electrode | 8.5 | 10.5 | 11.0 |
| nipple | 15.0 | 16.0 | 20.0 | |
| Young's modulus Gpa(Max) | electrode | 9.3 | 12.0 | 14.0 |
| nipple | 14.0 | 16.0 | 22.0 | |
|
Ash % (maximum) |
electrode | 0.5 | 0.3 | 0.3 |
| nipple | 0.5 | 0.3 | 0.3 | |
|
Thermal expansion coefficient (100-600℃) × 10-6/℃ |
electrode | 2.9 | 2.4 | 1.5 |
| nipple | 2.8 | 2.2 | 1.4 | |

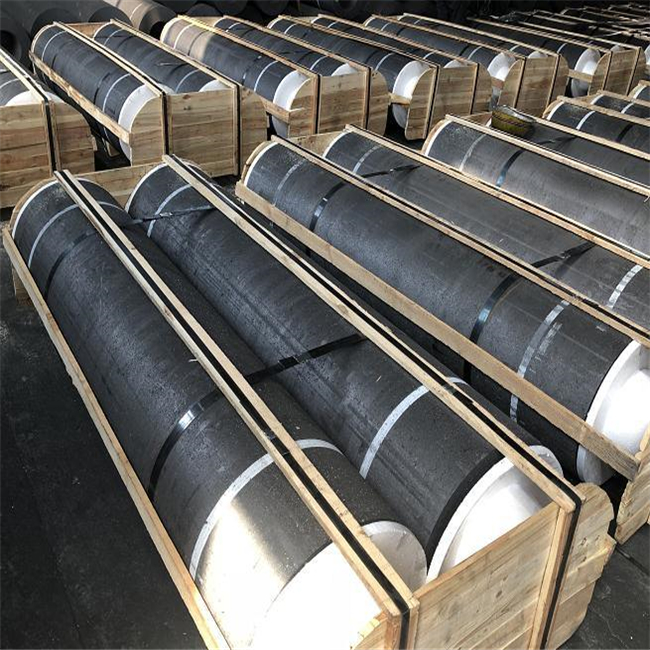

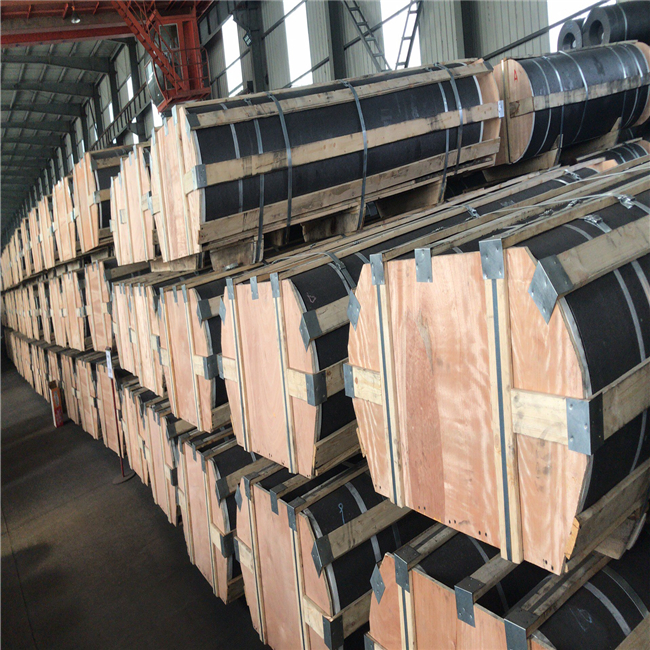

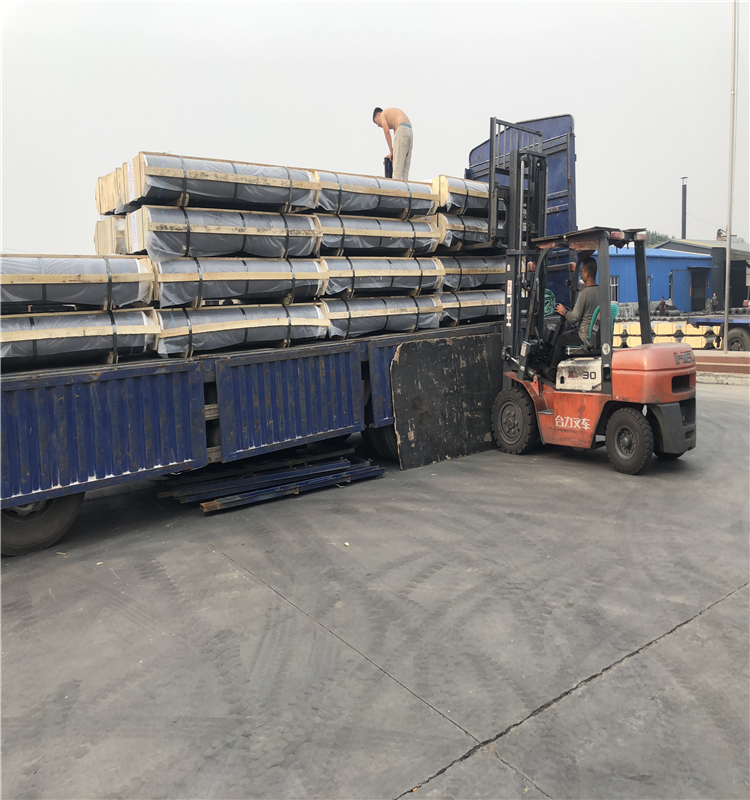

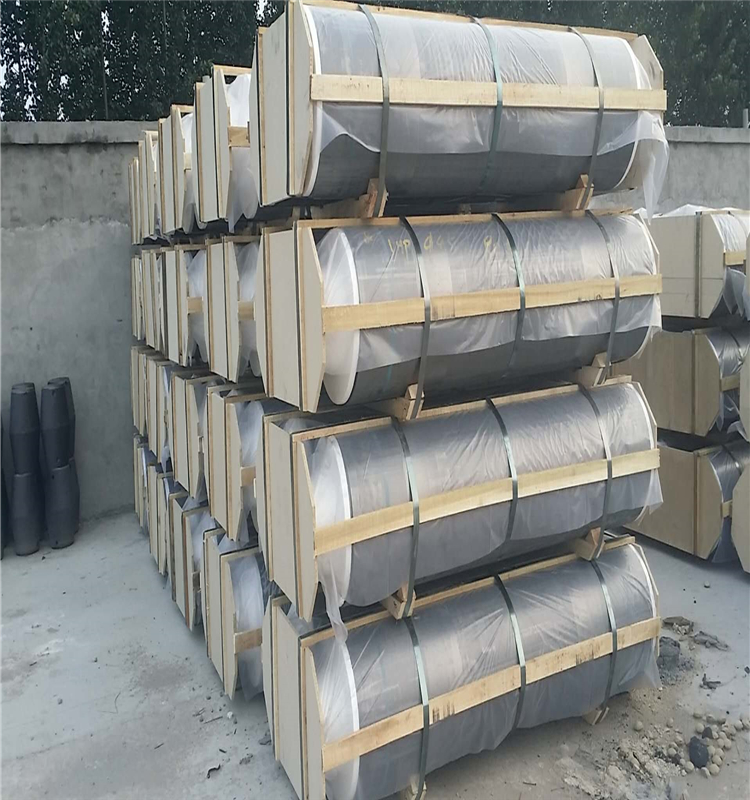

Packaging and Shipping
