Aluminum graphite crucible 500 kg melting at factory price
- $770.00 /piece
- 1 piece
- Zhucheng Jinde Refractory Co., Ltd.
- Shandong, China
- Mr
Product Detail
| Top Diameter: | 775mm | size: | different sizes available |
| Molten metal: | Smelting non-ferrous metals | model: | 1551(high)# |
| Origin: | China | port: | Qingdao Port |
| Packaging Details: | Fumigation wooden box or plywood wooden box or according to customer requirements. | feature: | High temperature resistance |
| work: | Silicon carbide | brand: | Golden Shield Crucible |
| Certificate: | ISO9001 | Bending strength (MPa): | 7.8 |
| Supply capacity: | 3000 pieces per month | Thermal conductivity (w/mK): | 34 |
| shape: | Type A | Material: | Silicon carbide |
| application: | Aluminum/Copper/Zinc Oxide | color: | Differential colors available |
| type: | isostatic pressing | Operating temperature: | 400~1400 |
| payment terms: | L/C, D/P, T/T, Western Union | high: | 750mm |
| Package preview: | Bottom diameter: | 400mm |
Ex-factory price melting 500kg aluminum graphite crucible
advantage
Our silicon carbide graphite crucibles have the following features:
1. High thermal conductivity: shorten melting time and save energy;
2. Higher strength: isostatic pressing, no defects in the internal structure, high physical strength;
3. Better oxidation resistance: unique anti-oxidation design, and use high-purity raw materials to protect graphite, high oxidation resistance; 5~10 times that of ordinary graphite crucibles.
4. Anti-corrosion: low porosity, special additives, effectively resist the corrosion of slag and other melts.
5. Long life: the life of the crucible is 3-5 times longer than that of ordinary graphite crucibles.
feature
| carbon | 35%~55% |
| Silicon carbide | 35%~55% |
| resin | 1%~5% |
| High temperature glue | 1%~5% |
| Porosity% | 11 |
| Density (g/cm3) | 2.1~2,4 |
| Bending strength (MPa) | 7.8 |
| Thermal Expansion Rate(% at 800℃) | 0.30 |
| Thermal conductivity (w/mK) | 34 |
For different stoves:
Material | Applicable Furnace/Metal |
JA | Electronic resistance furnace, coke furnace |
JB | Electronic resistance furnace, holding furnace |
jessie | Flame furnace, coke furnace, biological pellet furnace, gas furnace, oil furnace |
Jingdong | Electromagnetic induction furnace, intermediate frequency furnace |
Japanese encephalitis | High acid and alkali corrosion metal |

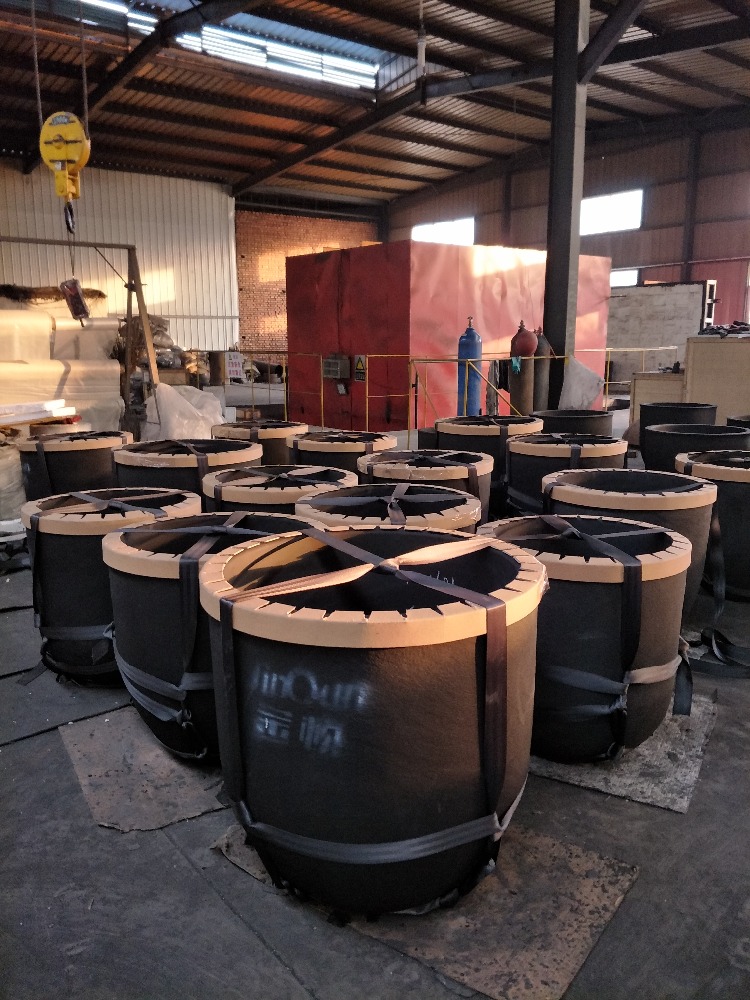

professional packaging
1. One crucible in a sealed plastic bag, inside a desiccator.
2. Place enough plastic foam to ensure the safety of the crucible during transportation.
3. Fumigation-free wooden box.
