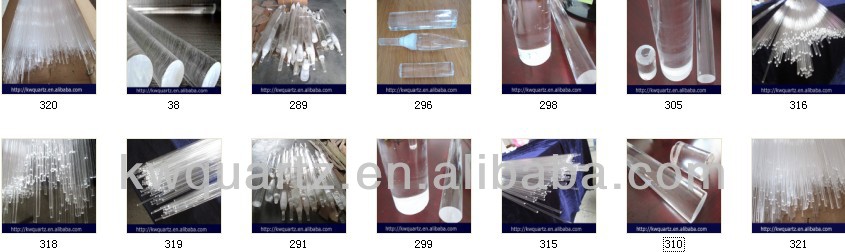

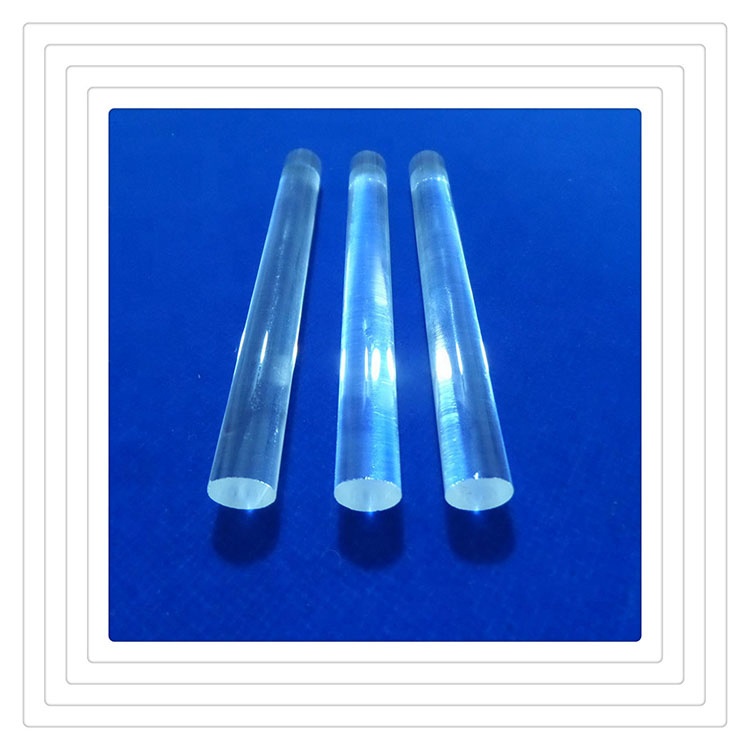

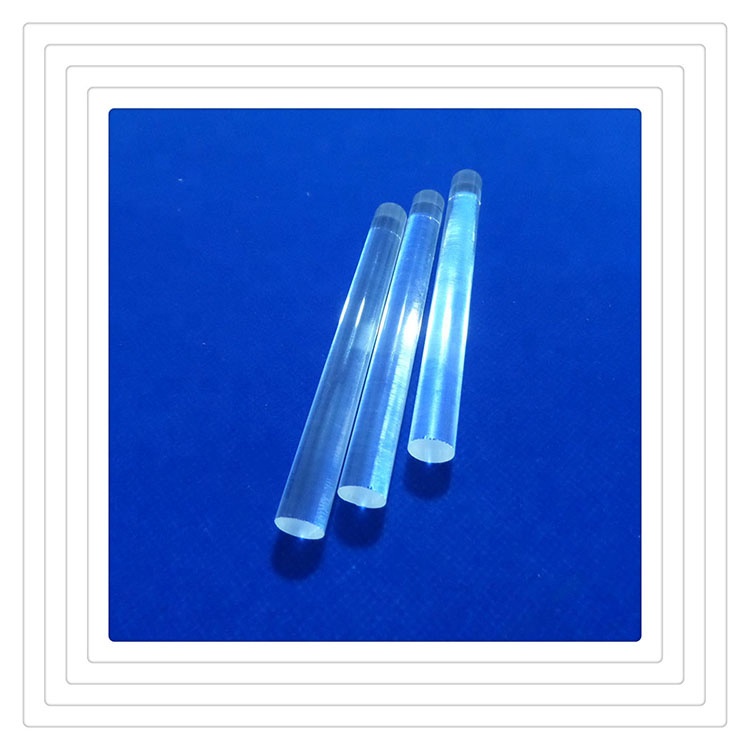

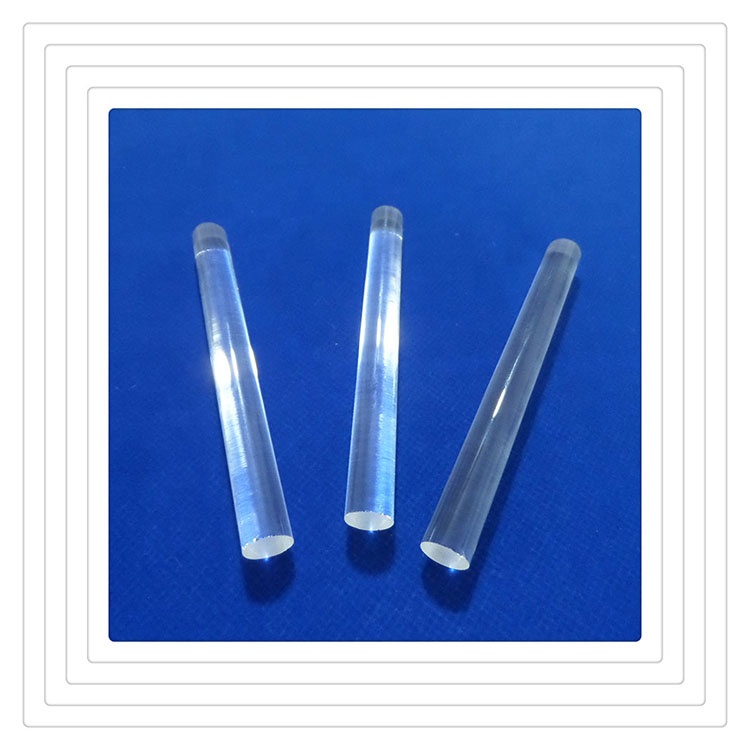

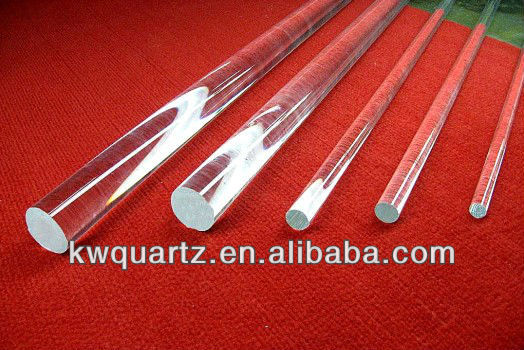

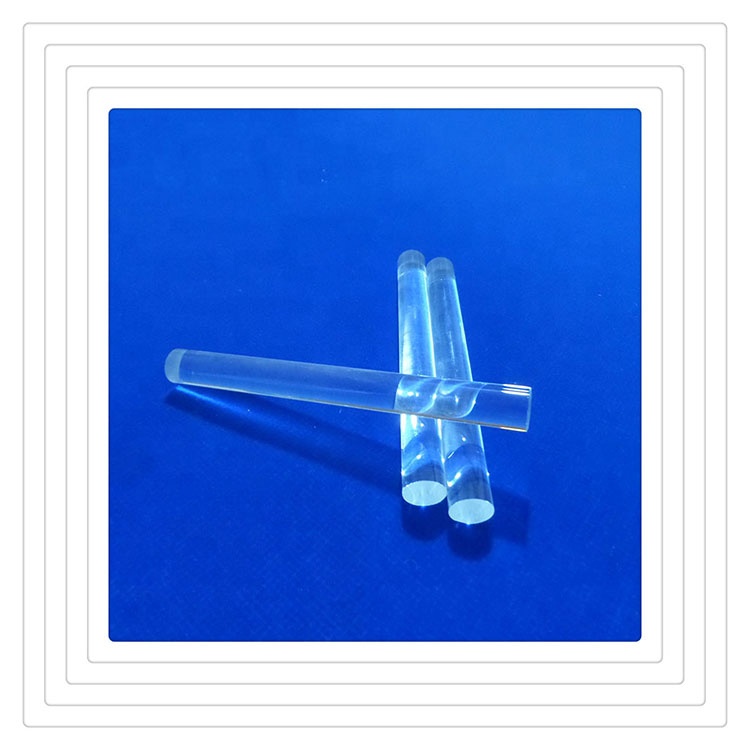

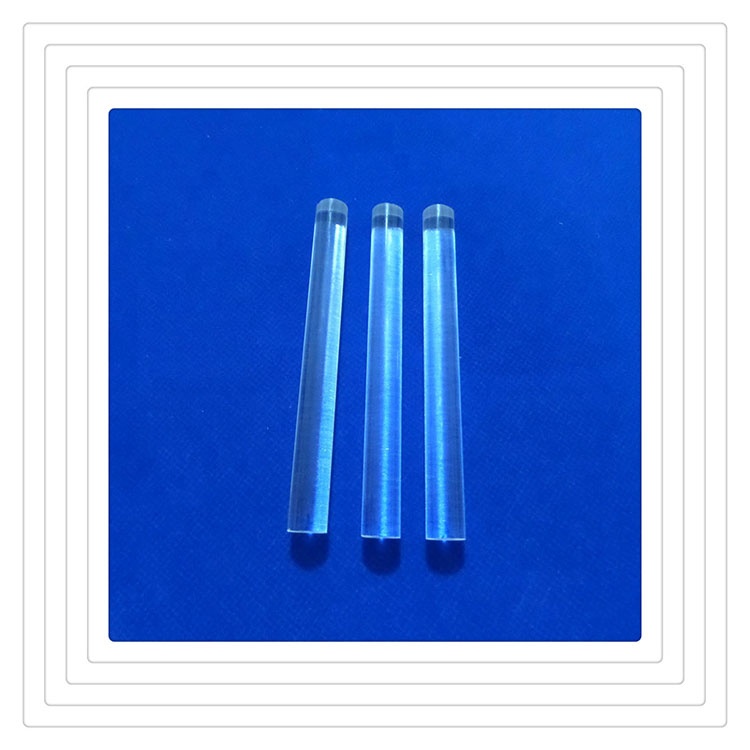

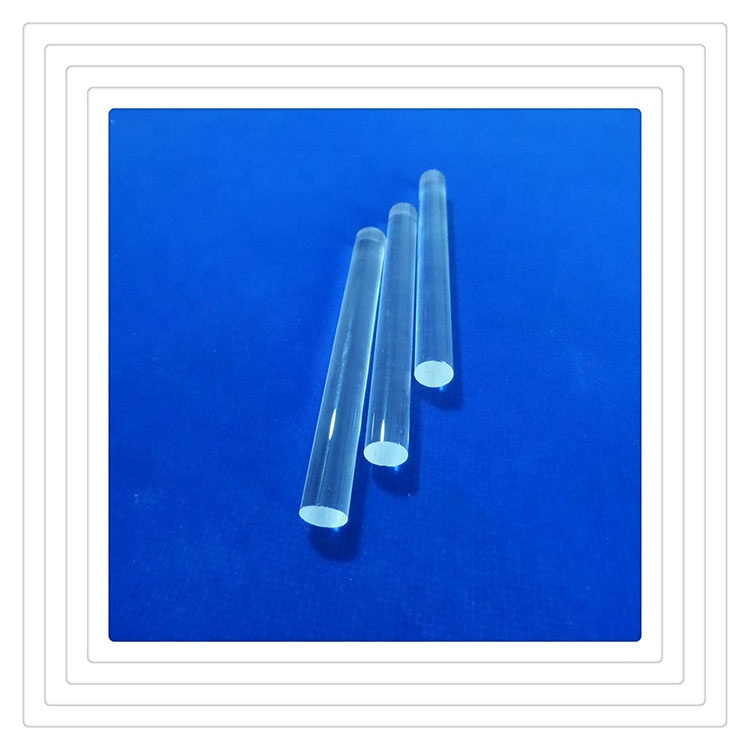

Customized transparent quartz glass rod light guide rod quartz rod of various sizes
-
$10.00 / 10 - 99 pieces
$8.00 / >=100 pieces - 10 pieces
- Donghai Kaiwang Quartz Products Co., Ltd.
- Jiangsu, China
- Ms Karen Sun
Product Detail
| model: | Customer demand | Processing services: | bending, cutting |
| process: | overall polishing | Transmittance: | 90% |
| Ellipticity: | Post-90s | brand: | Kaiwang |
| Silica composition: | 99.9% | port: | Lianyungang, Shanghai Port |
| Origin: | Jiangsu, China | type: | Transparent Quartz Rod |
| Outer diameter: | 1.5-500mm | product name: | Quartz Light Rod |
| Packaging Details: | Inner white foam paper + plastic foam board, with carton outside | payment terms: | L/C, T/T, PayPal |
| Surface treatment: | polishing | application: | Semiconductor/Chemical Industry |
| Supply capacity: | 50000 pieces per month |
|
Quartz rod |
|
|
Silica: |
99.9% |
|
density: |
2.2 (g/cubic centimeter) |
|
Hardness Mohs scale: |
6.6 |
|
Melting point: |
1732°C |
|
Operating temperature: |
1100°C |
|
maximum temperature can reachIn a short time: |
1450Celsius |
|
acid resistance: |
30 times that of ceramics, 150 times that of stainless steel |
|
Visible light transmittance: |
More than 93% |
|
UV spectral region Transmittance: |
80% |
|
Resistance: |
10,000 times that of ordinary glass |
|
Annealing point: |
1180Celsius |
|
Softening Point: |
1630Celsius |
|
Strain point: |
1100Celsius |
advantage
high purity;
High corrosion resistance;
High temperature resistance;
Good thermal stability;
Low coefficient of thermal expansion;
Good quality and competitive price;
Strict dimensional tolerances;
Different sizes available upon request.
Dimensional tolerance
|
Outer diameter range |
outer diameter |
|
<6mm |
±2.0% |
|
6.00-15.00mm |
±1.25% |
|
15.00-20.00mm |
±1.25% |
|
20.00-25.00mm |
±1.25% |
|
25.00-30.00mm |
±1.35% |
|
30.00-50.00mm |
±1.5% |
We can accept sample orders, also want to customize according to your requirements.
terms of trade
Min order quantity (MOQ):10 tablets.
payment terms:100% T/T, L/C, Western Union.
delivery time:Within 10 days after payment received.
Packaging Details:Inner carton, outer wooden box; or according to customer requirements.
Sample Policy:Samples are available, but buyers should pay for samples and freight.
Welcome to contact me!
