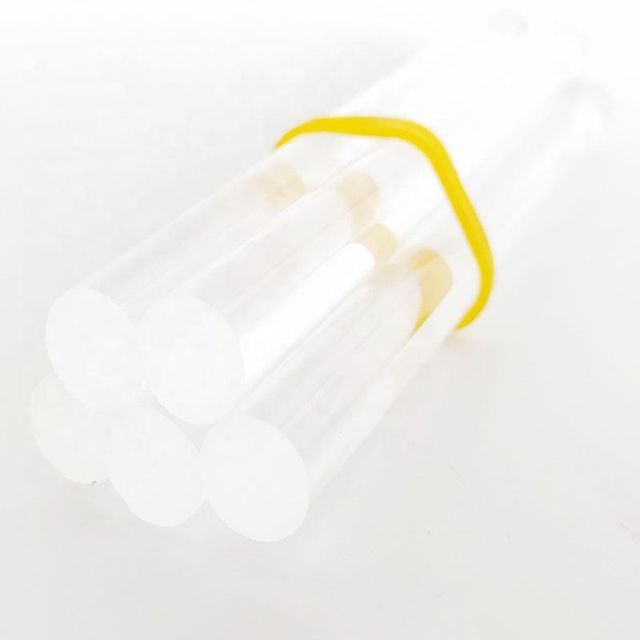

High-purity Si2o3 fused silica glass stirring rod for stirring

Product Detail

Supply capacity:10000 pieces per weekPackaging Details:Carton or plywood box
Ellipticity:customapplication:Semiconductor, Optical Fiber, Industrial
Maximum working temperature:1450°CProcessing services:Bending, welding, punching, cutting
feature:High temperature and high pressureOuter diameter:1.5-80 mm
Advantage:Thermal Shock ResistancePackage preview:
product name:Transparent quartz glass tubes, bushings, sleevestype:Transparent Quartz Rod
Transmittance:custompayment terms:T/T, Western Union, MoneyGram
Silica composition:>99%pack:Carton or plywood box
density:2.2brand:Yunnuo
Material:SiO2 >99.9%, fused silica, synthetic quartzusage:Optical fiber, semiconductor, industry, lighting applications
Origin:China Shanghaiport:Shanghai
color:clear and transparent colorshape:round, half
model:YNQR-002A
Product Description
Transparent quartz glass products
Quartz glass is a single-component glass of silica, which is usually divided into two categories: transparent quartz glass and opaque quartz glass (fused silica). Transparent quartz glass contains only a few bubbles and is extremely optically homogeneous and transparent. It is made of silicon tetrafluoride placed in a crystal box and melted at high temperature. The content of SIO2 is more than 99.95%, and the content of high-purity quartz glass is 99.999%. . Opaque quartz glass is made of veined quartz and quartz sand, which are melted at high temperature. It contains more than 99.5% SIO2.

feature:
1. High temperature resistance
The softening point temperature of quartz glass is about 1730°C, it can be used for a long time at 1100°C, and the maximum temperature for short-term use can reach 1450°C.

2. Corrosion resistance
Quartz glass has little chemical reaction with other acids except hydrofluoric acid. Its acid resistance is 30 times that of ceramics and 150 times that of stainless steel, especially its chemical stability at high temperature is unmatched by any other engineering materials.

3. Good thermal stability
Quartz glass has an extremely low coefficient of thermal expansion and can withstand severe temperature changes. Quartz glass is heated to about 1100°C, and it will not burst when placed in room temperature water.

4. Good light transmission performance
Quartz glass has good light transmission performance in the entire spectral band from ultraviolet to infrared, and the visible light transmittance is above 93%, especially in the ultraviolet spectral region, the highest transmittance can reach more than 80.

5. Good electrical insulation performance
The resistance value of quartz glass is equivalent to 10,000 times that of ordinary glass. It is an excellent electrical
Insulating material, which has good insulating properties even at high temperatures.

application:
Quartz glass is widely used in electric light sources, semiconductors, optical communications, military industry, metallurgy,
Due to its excellent physical and chemical properties, it is widely used in building materials, chemical industry, machinery, electric power, environmental protection and other fields.
thing
value
density
2.2 g/cm3
Compressive strength
1100 MPa
Bending strength
67 MPa
tensile strength
48 MPa
Poisson's ratio
0.14-0.17
Young's modulus
72000MPa
modulus of rigidity
31000 MPa
Moh's hardness
5.5-6.5
Specific heat (20-350C)
670J/kg.C
Thermal conductivity (20°C)
1.4W/mA
Refractive index
1.4585
Resistivity
7x107 Ω.cm
Dielectric strength
250-400 kW/cm2
Dielectric constant
3.7-3.9
Product Range:
1. Quartz glass tube (outer diameter 1-450MM, wall thickness 0.5-20mm)
2. Quartz glass rod (outer diameter 1.5-80MM)

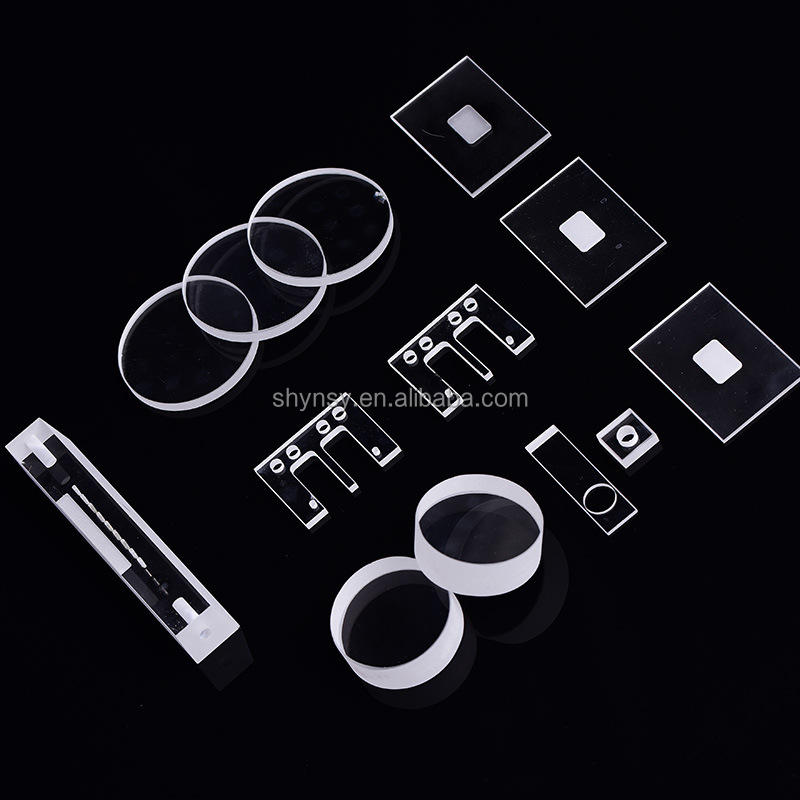

3. Quartz glass plate (various shapes, transparent, frosted, punched)

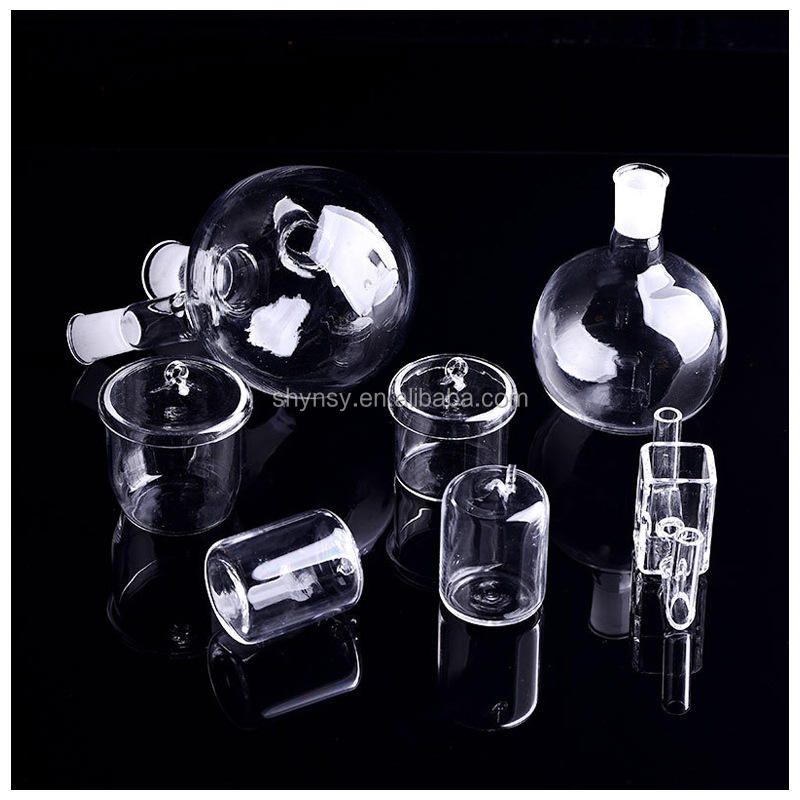

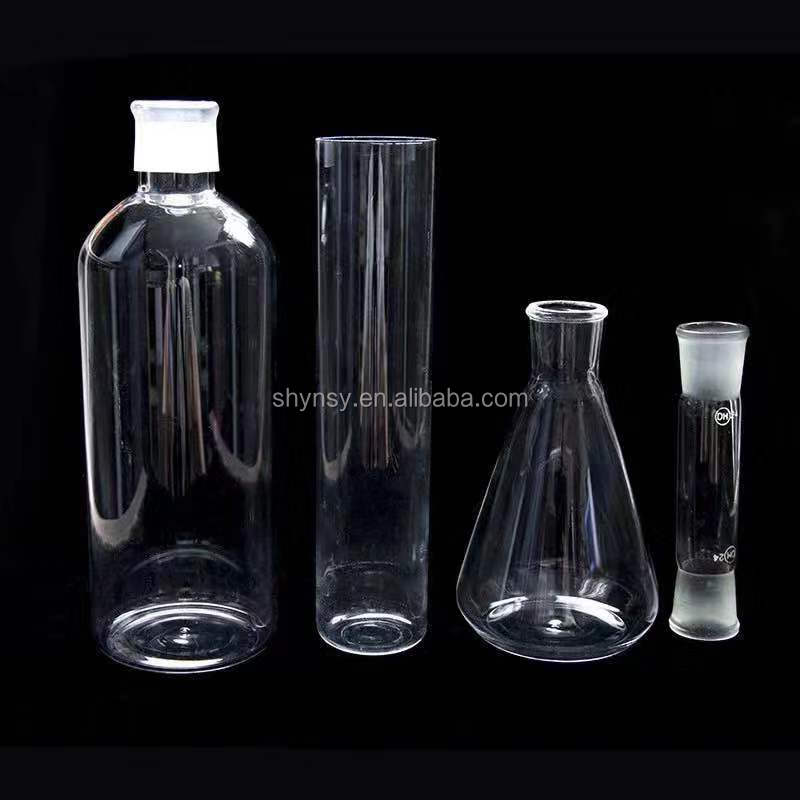

4. Laboratory quartz utensils
5. Quartz instruments and other customized items
material data
We can open the vent on the crucible


By express or by air
For small packages, gross weight <68kg or 100kg. >68kg, better by air.
by sea
For bulk packaging, gross weight > 100 kg or larger volume.
by rail
According to customer's requirement.
