Transparent quartz glass light guide rod quartz rod to map custom high temperature resistant fiber optic rod

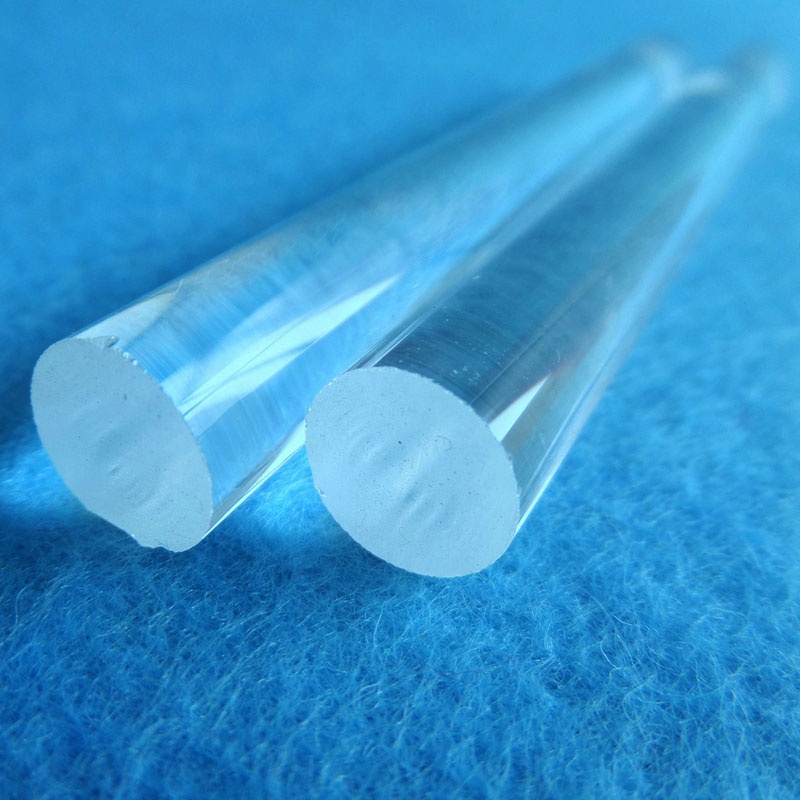

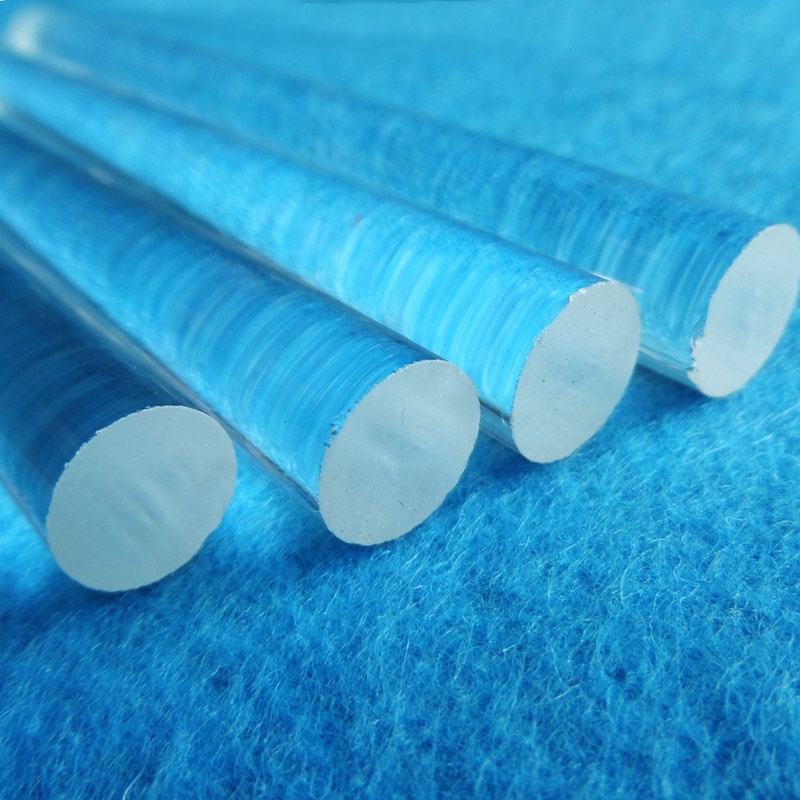

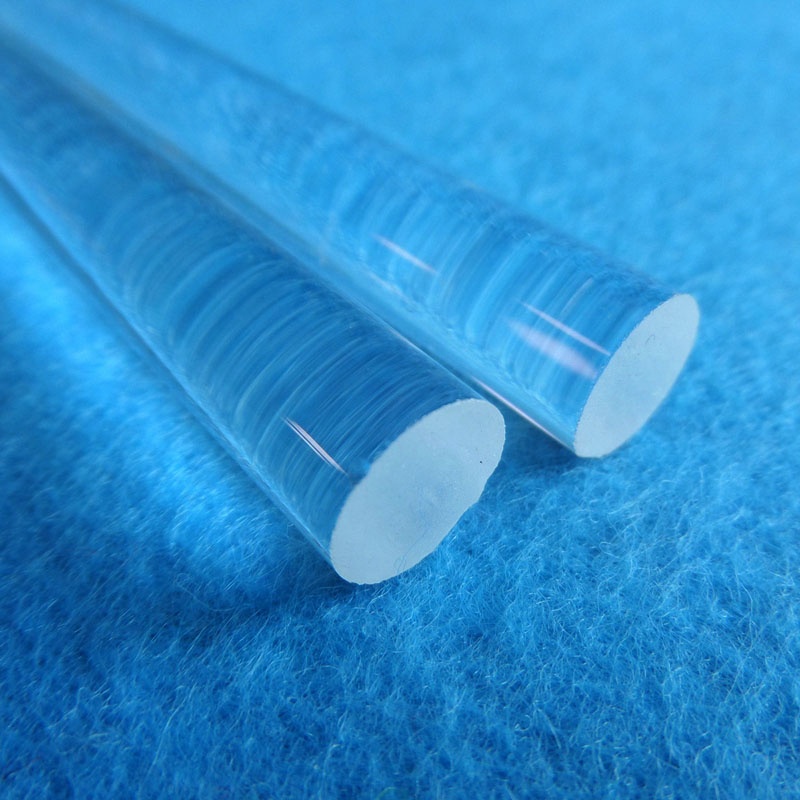

Quartz rod

Silica:

99.9%

density:

2.2 (g/cubic centimeter)

Hardness Mohs scale:

6.6

Melting point:

1732°C

Operating temperature:

1100°C

Maximum temperature achievable in a short time:

1450°C

Acid resistance:

30 times that of ceramics, 150 times that of stainless steel

Visible light transmittance:

More than 93%

Transmittance in the ultraviolet spectral region:

80%

Resistance:

10,000 times that of ordinary glass

Annealing point:

12300℃

Softening Point:

1710°C

Strain point:

1140°C

Outer diameter range

weight

siding

not round

Bow/1220mm

length

6.00±0.15

1.0±0.10

10%

1.5%

2.5mm

1220

8.00±0.15

1.0±0.10

10%

1.5%

2.5mm

1220

9.00±0.15

1.0±0.10

10%

1.5%

2.5mm

1220

10.00±0.15

1.0±0.10

10%

1.5%

2.5mm

1220

11.00±0.15

1.0±0.10

10%

1.5%

2.5mm

1220

12.00±0.15

1.0±0.10

10%

1.5%

2.5mm

1220

13.00±0.15

1.0±0.10

10%

1.5%

2.5mm

1220

15.00±0.15

1.20±0.10

10%

1.5%

2.5mm

1220

18.00±0.15

1.50±0.10

10%

1.5%

2.5mm

1220

19.00±0.15

1.50±0.10

10%

1.5%

2.5mm

1220
